Icom IC-M400BB Service Manual

6-1
[CHASSIS PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510004881 MR-DSE-01-1 <GA> 1
W1 8900020381 OPC-2214A 1
W2 8900020390 OPC-2215 1
MP1 8510020730 3514 CASE 1
MP3 8930049040 INSULATION SHEET FQ 1
MP4 8930058780 2577 SHEET 1
MP5 8930083960 3338 R-PACKING 1
MP6 8930086910 3514 F-PACKING 1
MP7 8930083990 3338 R-BUSH PLATE 1
MP8 8930084000 3338 A-R-BUSH PLATE Y1260 1
MP9 8510020500 3338 A-MODULE PLATE 1
MP10 8930084010 3338 IC CLIP 1
MP11 8010022280 3338 CHASSIS <STM> 1
MP12 8930034300 1542 ANT SEAL <JST> 1
MP13 8810010610 PHB0 M3 X 8 SUS S (BT) 2
MP14 8810010021 PH BT M2.6X 8 NI-ZC3 2
MP15 8810008661 PHBT M3 X 8 NI-ZC3 7
MP16 8810010610 PHB0 M3 X 8 SUS S (BT) 6
MP17 8810010620 PHB0 M3 X12 SUS S 6
MP18 8510020340 3338 MODULE COVER 1
[MAIN UNIT]
[ACCESSORIES]
[FRONT UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1* 6510025142 10FLT-SM2-TB (LF) (SN) (M) 1
J2* 6510022472 40FLT-SM2-TB (LF) (SN) (M) 1
J3* 6510018971 B4B-PH-SM4-TB (LF) (SN) 1
F1* 5210001160 ERBRE3R00V 1
W1* 7030012290 RDS2T0R0 1
W2** 8900014871 OPC-1332A-1 (P0.5N40L100) TJM 1
W3** 8900020400 OPC-2216 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
MP1 8210028900 3514 FRONT PANEL ASSY 1
MP16 8810008661 PHBT M3 X 8 NI-ZC3 4
MP21 8930055841 2490 EARTH SPRING-1 1
MP22 8810008661 PHBT M3 X 8 NI-ZC3 1
[LOGIC UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1* 6510022472 40FLT-SM2-TB (LF) (SN) (M) 1
J4* 6510018971 B4B-PH-SM4-TB (LF) (SN) 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
MC11 (Optional) HM-195B [USA-01] 1
(Optional) HM-195B [UK-01] 1
(Optional) HM-195B [EUR-01] 1
(Optional) HM-195B [HOL-01] 1
(Optional) HM-195B [FRG-01] 1
(Optional) HM-195SW [USA-02] 1
(Optional) HM-195SW [EUR-02] 1
W1 8900009041 OPC-891A 1
W11 (Optional) OPC-1540 [USA-01] 1
(Optional) OPC-1540 [UK-01] 1
(Optional) OPC-1540 [EUR-01] 1
(Optional) OPC-1540 [HOL-01] 1
(Optional) OPC-1540 [FRG-01] 1
(Optional) OPC-1540 [USA-02] 1
(Optional) OPC-1540 [EUR-02] 1
MP11 8950005110 2289 MIC HANGER Y468 [USA-01] 1
8950005110 2289 MIC HANGER Y468 [UK-01] 1
8950005110 2289 MIC HANGER Y468 [EUR-01] 1
8950005110 2289 MIC HANGER Y468 [HOL-01] 1
8950005110 2289 MIC HANGER Y468 [FRG-01] 1
8950005110 2289 MIC HANGER Y468 [USA-02] 1
8950005110 2289 MIC HANGER Y468 [EUR-02] 1
MP12 8810004700 PHA M3 X16 SUS [USA-01] 5
8810004700 PHA M3 X16 SUS [UK-01] 5
8810004700 PHA M3 X16 SUS [EUR-01] 5
8810004700 PHA M3 X16 SUS [HOL-01] 5
8810004700 PHA M3 X16 SUS [FRG-01] 5
8810004700 PHA M3 X16 SUS [USA-02] 5
8810004700 PHA M3 X16 SUS [EUR-02] 5
MP13 8930084860 3384 C-PLATE Y1265 [USA-01] 1
8930084860 3384 C-PLATE Y1265 [UK-01] 1
8930084860 3384 C-PLATE Y1265 [EUR-01] 1
8930084860 3384 C-PLATE Y1265 [HOL-01] 1
8930084860 3384 C-PLATE Y1265 [FRG-01] 1
8930084860 3384 C-PLATE Y1265 [USA-02] 1
8930084860 3384 C-PLATE Y1265 [EUR-02] 1
MP14 8930084840 3384 CONNECTOR CAP TOT [USA-01] 1
8930084840 3384 CONNECTOR CAP TOT [UK-01] 1
8930084840 3384 CONNECTOR CAP TOT [EUR-01] 1
8930084840 3384 CONNECTOR CAP TOT [HOL-01] 1
8930084840 3384 CONNECTOR CAP TOT [FRG-01] 1
8930084840 3384 CONNECTOR CAP TOT [USA-02] 1
8930084840 3384 CONNECTOR CAP TOT [EUR-02] 1
[CONNECT UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510022440 LTW-8MP-C NUTGASKET <LIA> 1
J2* 6510025142 10FLT-SM2-TB (LF) (SN) (M) 1
[VCO UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1* 6910003831 IMSA-9230B-1-04Z003-PT1 1
J2* 6910003831 IMSA-9230B-1-04Z003-PT1 1
MP1 8510020510 3338 VCO CASE Y1269 1
MP2 8510020520 3338 VCO COVER Y1270 1

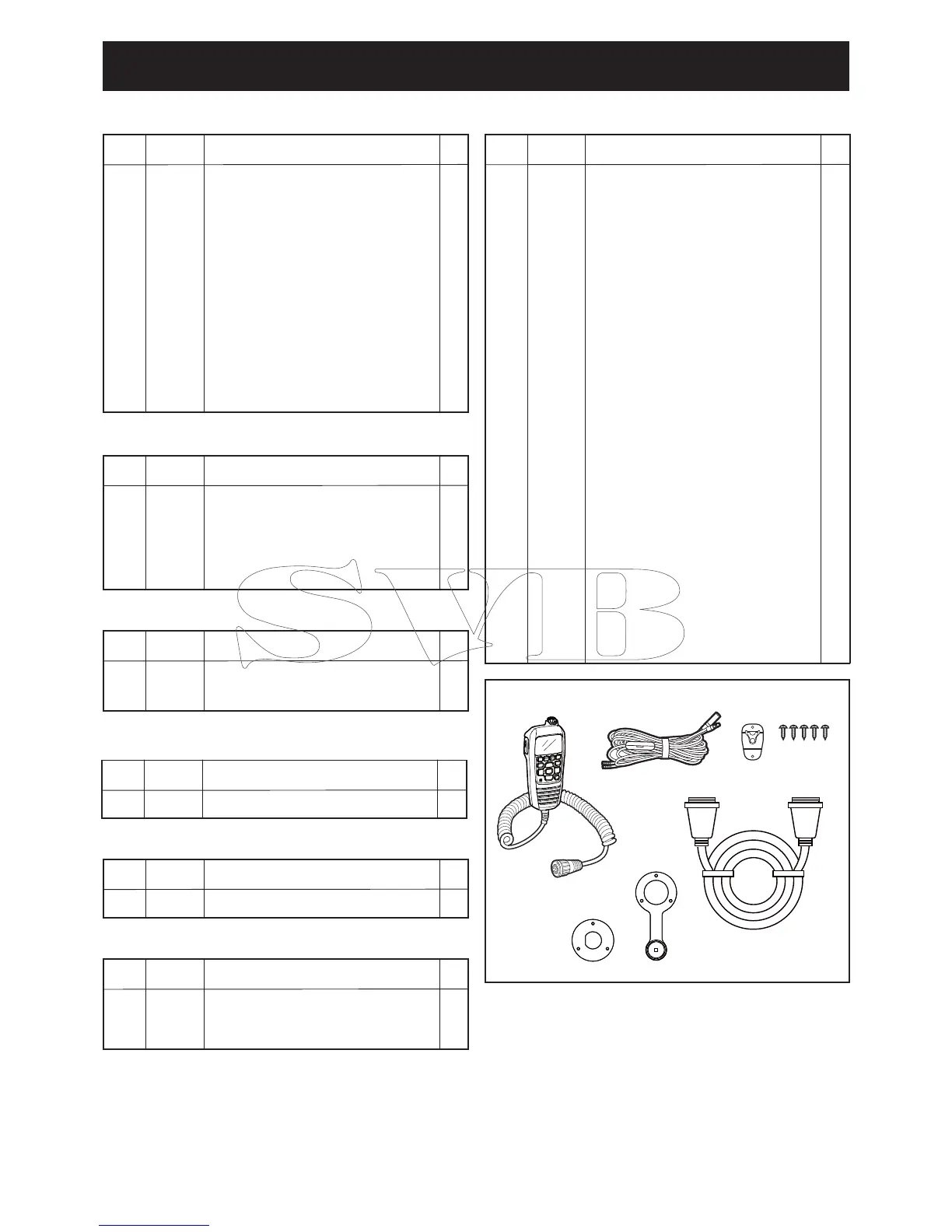

SECTION 6
.
MECHANICAL PARTS
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
W1
MC11
MP11
W11
MP14
MP13
MP12
