Icom IC-R100 Service Manual

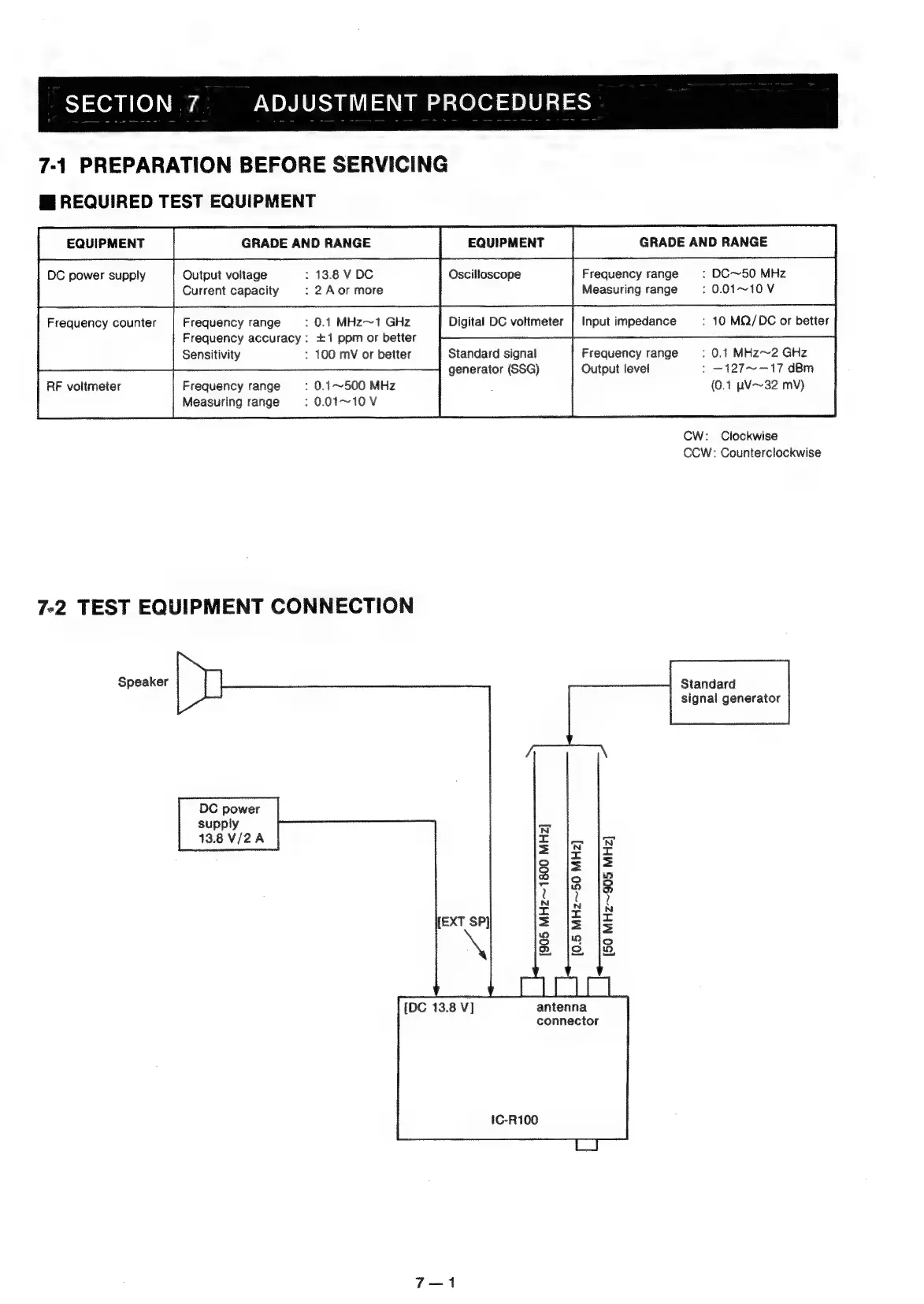

SECTION 7 ADJUSTMENT PROCEDURES
7-1 PREPARATION BEFORE SERVICING
И REQUIRED TEST EQUIPMENT
EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE
DC power supply Output voltage : 13.8 V DC Oscilloscope Frequency range : DC—50 MHz
Current capacity : 2A or more Measuring range : 0.01—10 V
Digital DC voltmeter | Input impedance : 10 MQ/DC or better
Standard signal Frequency range : 0.1 MHz~2 GHz
generator (SSG) Output level : —127——17 dBm
(0.1 uV—32 mV)
Frequency range : 0.1 MHz~1 GHz
Frequency ассигасу: +1 ppm or better
Sensitivity : 100 mV or better
RF voltmeter Frequency range : 01~500 MHz
Measuring range : 0.01—10 V
Frequency counter
CW: Clockwise
CCW: Counterclockwise
7-2 TEST EQUIPMENT CONNECTION
Standard
signal generator
Speaker
DC power
supply
13.8 V/2A
[905 MHz 一 1800 MHz] [0.5 MHz 一 50 MHz]
(50 MHz 一 905 MHz]
antenna
Connector
ІС-В100
