Icom IC-R100 Service Manual

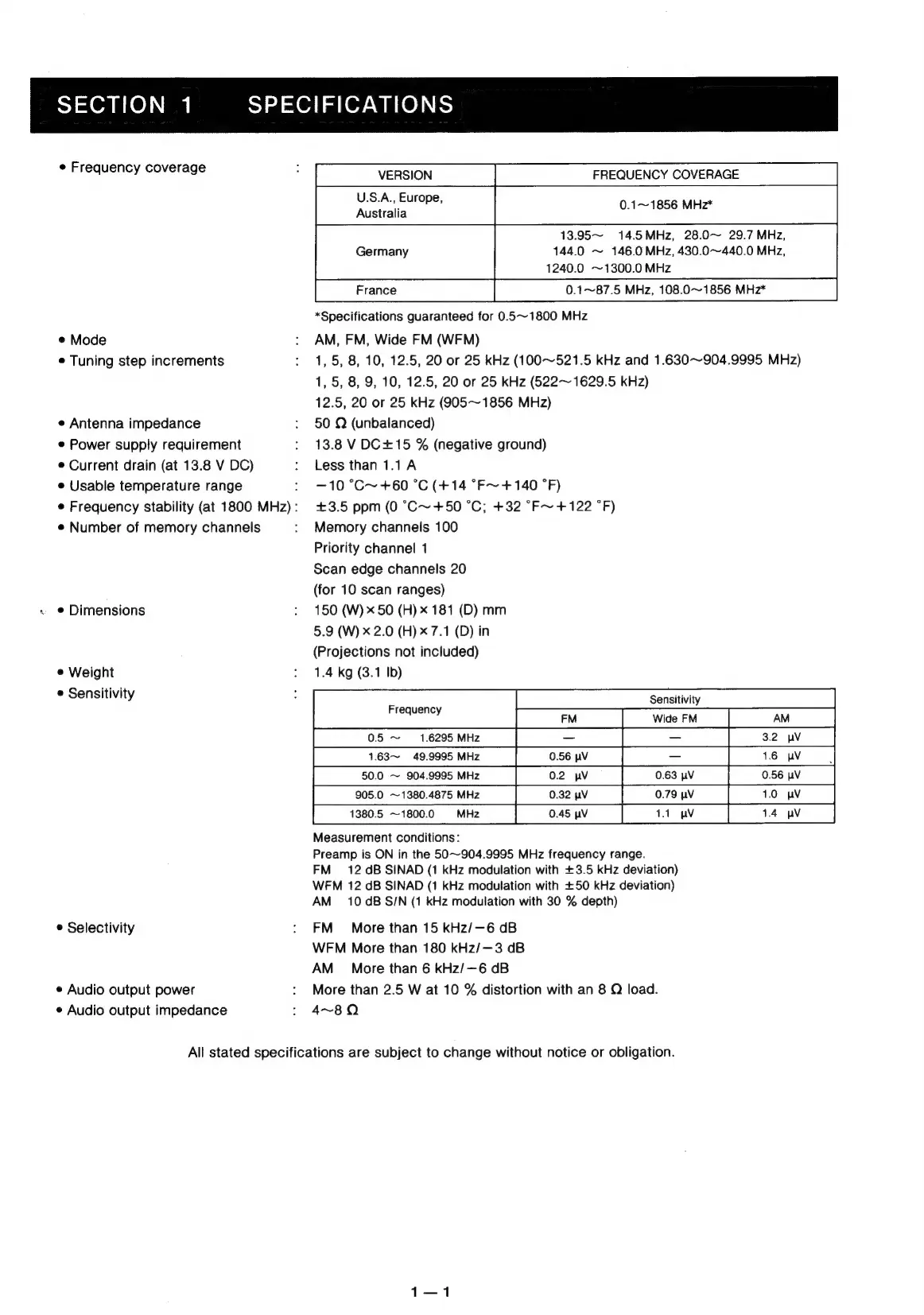

SECTION 1 SPECIFICATIONS
e Frequency coverage
e Mode
е Tuning step increments
e Antenna impedance
e Power Supply requirement
e Current drain (at 13.8 V DC)
e Usable temperature range
e Frequency stability (at 1800 MHz):
e Number of memory channels
e Dimensions
e VVeight
e Sensitivity
e Selectivity
e Audio output povver
e Audio output impedance
VERSION FREQUENCY COVERAGE
U.S.A.,
Europe,
0.1--1856
MHz*
Australia
13.95— 14.5 MHz, 28.0— 29.7 MHz,
144.0 — 146.0 MHz, 430.0--440.0 MHz,
1240.0 --1300.0 MHz
0.1--87.5 MHz, 108.0--1856 MHz*
*Specifications guaranteed for 0.5--1800 MHz
AM, FM, Wide FM (WFM)
1, 5, 8, 10, 12.5, 20 ог 25 kHz (100~521.5 kHz and 1.630— 904.9995 MHz)
1, 5, 8, 9, 10, 12.5, 20 or 25 kHz (522— 1629.5 kHz)
12.5, 20 ог 25 kHz (905-1856 MHz)
50 Q (unbalanced)
13.8 V DCx 15 % (negative ground)
Less than 1.1 A
—10 'C— +60 °С (+14 ^F— +140 °F)
+3.5 ppm (0 'C— +50 °C; +32 °F~ +122 °F)
Memory channels 100
Priority channel 1
Scan edge channels 20
(for 10 scan ranges)
150 (W) x 50 (H) x 181 (D) mm
5.9 (VV) x 2.0 (H) x 7.1 (D) in
(Projections not included)
1.4 kg (3.1 Ib)
Frequenc
Germany
Еве |
-一 saw | с L - | su |
[ res вање | mw | — | w |
Measurement conditions :
Preamp is ON in the 50--904.9995 MHz frequency гапде.
FM 12 dB SINAD (1 kHz modulation with +3.5 kHz deviation)
WFM 12 dB SINAD (1 kHz modulation with +50 kHz deviation)
АМ 10 4В 5/М (1 kHz modulation with 30 96 depth)
FM More than 15 RHz/—6 dB
VVFM More than 180 КН2/-3 dB
AM More than 6 kHz/—6 dB
More than 2.5 VV at 10 96 distortion with an 8 О load.
4-8 О
All stated specifications are subject to change without notice ог obligation.
