Icom IC-R100 Service Manual

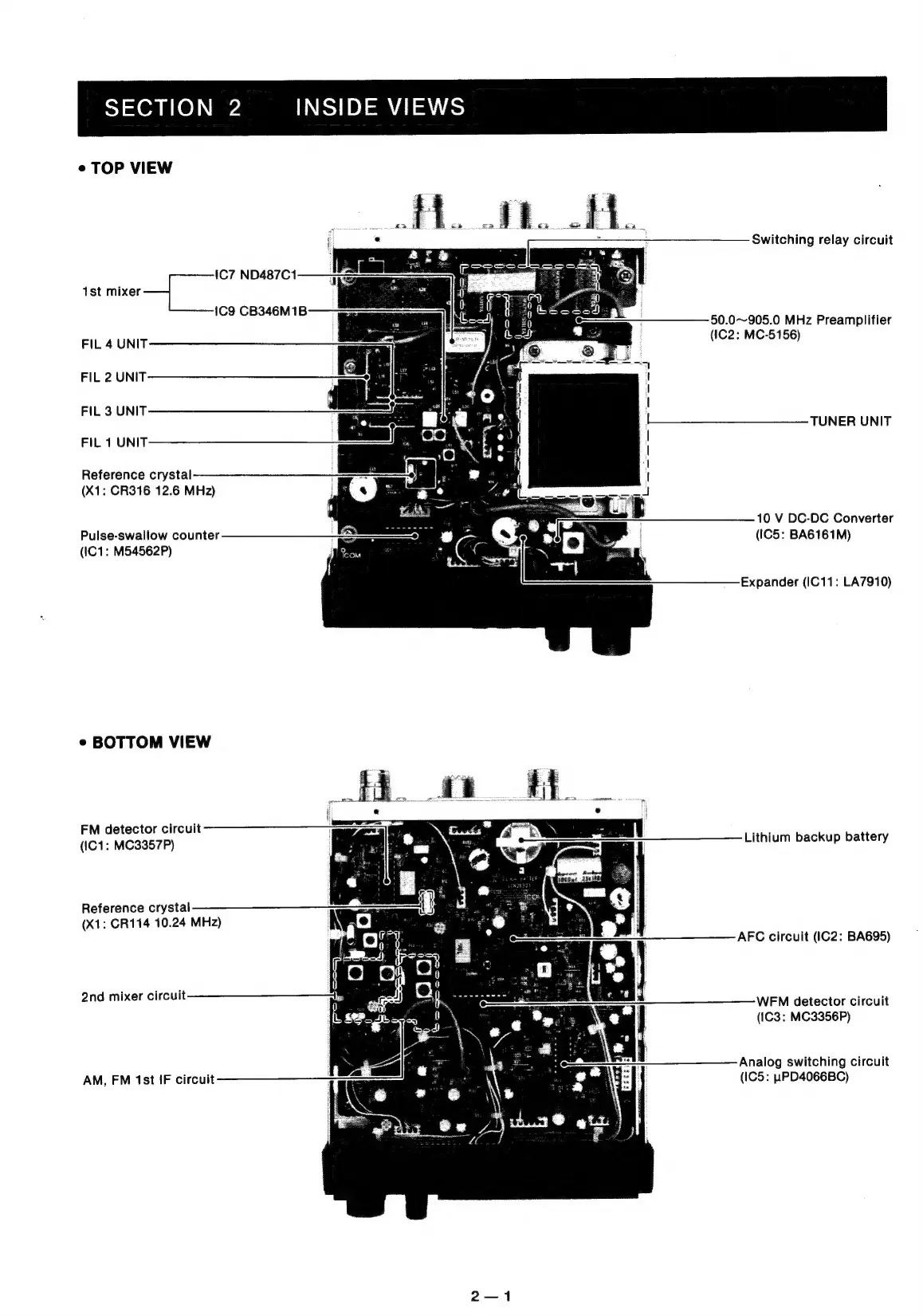

SECTION 2 INSIDE VIEWS
e TOP VIEW
Switching relay circuit
IC7 ND487C1
tst me
(Се CB346M1B
50.0 一 905.0 MHz Preamplifier
(IC2: MC-5156)
ғазып----- "MEN,
ЕЧ
d f
FIL 1 UNIT - à
4
L TUNER UNIT
Reference
crystal
m
(X1: CR316 12.6 MHz) a =
10 V DC-DC Converter
Pulse-swallow counter (IC5: BA6161M)
(IC1: M54562P)
Expander (IC11: LA7910)
e BOTTOM VIEW
FM detector circuit
(IC1:
MC3357P)
Lithium
backup
battery
Reference crystal
(X1: CR114 10.24 MHz)
AFC circuit (IC2: BA695)
у ircuit
арашы
WFM
detector
circuit
(СЗ: MC3356P)
Analog switching circuit
AM,
ЕМ
1st
IF
circuit
(IC5:
uPD4066BC)
