Icom IC-T2H Service Manual

BT 1 3030000420 NICD cel-KR0.7AAUR SAFT 8
[USA], [EUR], [UK], [ITA], [CSA/-1]
3030000450 NICD cel-KR0.7AAUR ASIA 8
[SEA], [THA], [TWN], [ANI]
EP 1 Optional products Charger BC-110A 1
[USA], [CSA], [TWN]
Optional products Charger BC-110D 1
[EUR], [ITA], [SEA], [THA], [ANI]
Optional products Charger BC-110C [CSA-1] 1
EP 2 3310001790 Antenna FA-B2C ACC 1
EP 3 8010016831 Battery case BP-194 1
MP1 8930042040 1922 Belt clip 1
J1 6510020350 ANT connector BNC-R148 1
SP 1 2510000960 Speaker K036NA500-26 1
MP1 8010017200 2078 Chassis 1
MP2 8210014430 1902 Front panel 1
MP3 8210014340 1922 PTT panel 1
MP4 8210014330 1922 Contact base 1
MP5 8610010420 Knob N261 1
MP6 8930048080 1922 10-Key (A) 1
MP7 8930042070 1922 MIC cap 1
MP8 8930042050 1922 DC cap 1
MP10 8930042090 1922 Plus terminal 1
MP11 8930042080 1922 Minus terminal 1
MP13 8930011900 SP net (A) FX573 1
MP14 8930042060 1922 LCD holder 1
MP15 8210014380 1922 Reflector 1
MP16 8310040680 1922 Window plate (E) 1
MP17 8930042680 1902 MIC seal 1
MP18 8930042790 1902 Rear sheet (C) [THA] 1
8930047930 1902 Rear sheet (J) 1
[SEA], [CSA/-1], [TWN], [ANI]
8930047940 1902 Rear sheet (K) [USA] 1
8930047950 1902 Rear sheet (L)
[EUR], [UK], [ITA] 1
MP19 8830001250 Nut antenna connector-101 1
MP20 8810000100 Screw PH M2×4 ZK 2
MP21 8810009510 Screw PH BT M2×4 NI-ZU 6
MP22 8810009510 Screw PH BT M2×4 NI-ZU 1
MP23 8810009510 Screw PH BT M2×4 NI-ZU 2
MP24 8810009560 Screw PH BT M2×6 ZK 2
MP25 8810009560 Screw PH BT M2×6 ZK 2
MP26 8830001010 Hex nut (A) 1
MP28 8510011170 1902 VCO cover 1
MP30 8510011241 1902 PA shield plate-1 1
[EUR], [UK], [ITA]
MP31 8930043730 Isolating sheet FB [EUR], [UK], [ITA] 1
MP32 8930043610 Isolating sheet EZ 1
MP33 8930046430 1902 MIC sponge 1
MP34 8930048150 Sponge (FZ) 1
MP35 8510012000 2191 VR rug plate 1
7 - 1
Screw abbreviations: PH: Pan head B0: Self-tapping
NI: Nickel ZK: Black

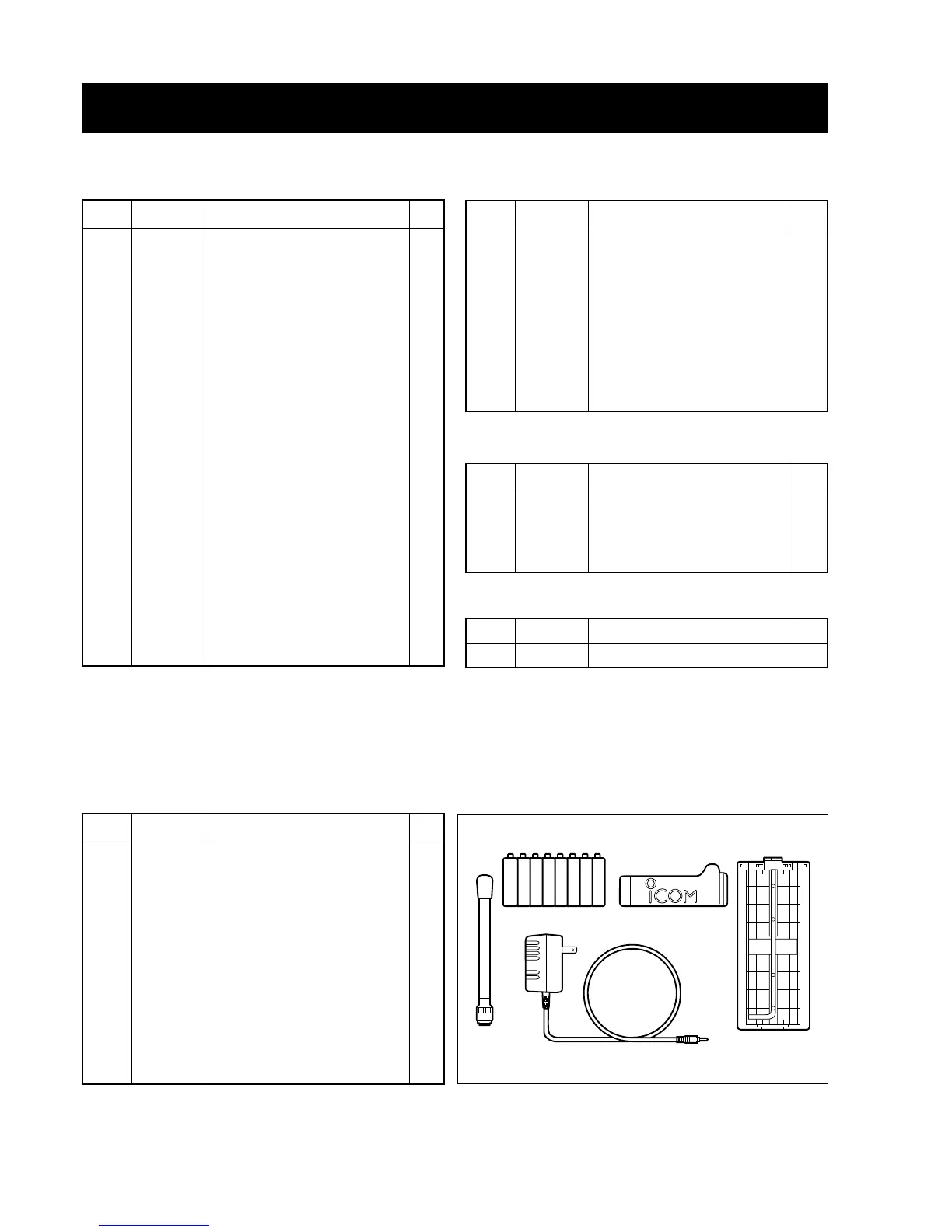

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7-1 CABINET PARTS
[CHASSIS PARTS]
7-2 ACCESSORIES
EP2
EP1
EP3
BT1 MP1
[MAIN UNIT]
REF NO.
ORDER
NO.
DESCRIPTION QTY.
QTY.
DS1 5030001460 LM-1462B 1
EP 2 8930042590 LCD contact SRCN-1922-SP-N-W 1
MP1 8410002230 2078 PA heat sink 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[CHASSIS PARTS]
REF NO.
ORDER
NO.
DESCRIPTION QTY.
[VCO BOARD]
MP1 8510010920 1902 VCO case 1
REF NO.
ORDER
NO.
DESCRIPTION QTY.
REF NO.
ORDER
NO.
DESCRIPTION
