Operation
•
IDEAL 4810-95, IDEAL 4850-95
B
A
C
D
E
IDEAL 4810-95, IDEAL 4850-95/EP,
IDEAL 5221-95EP, IDEAL 6550-95EP

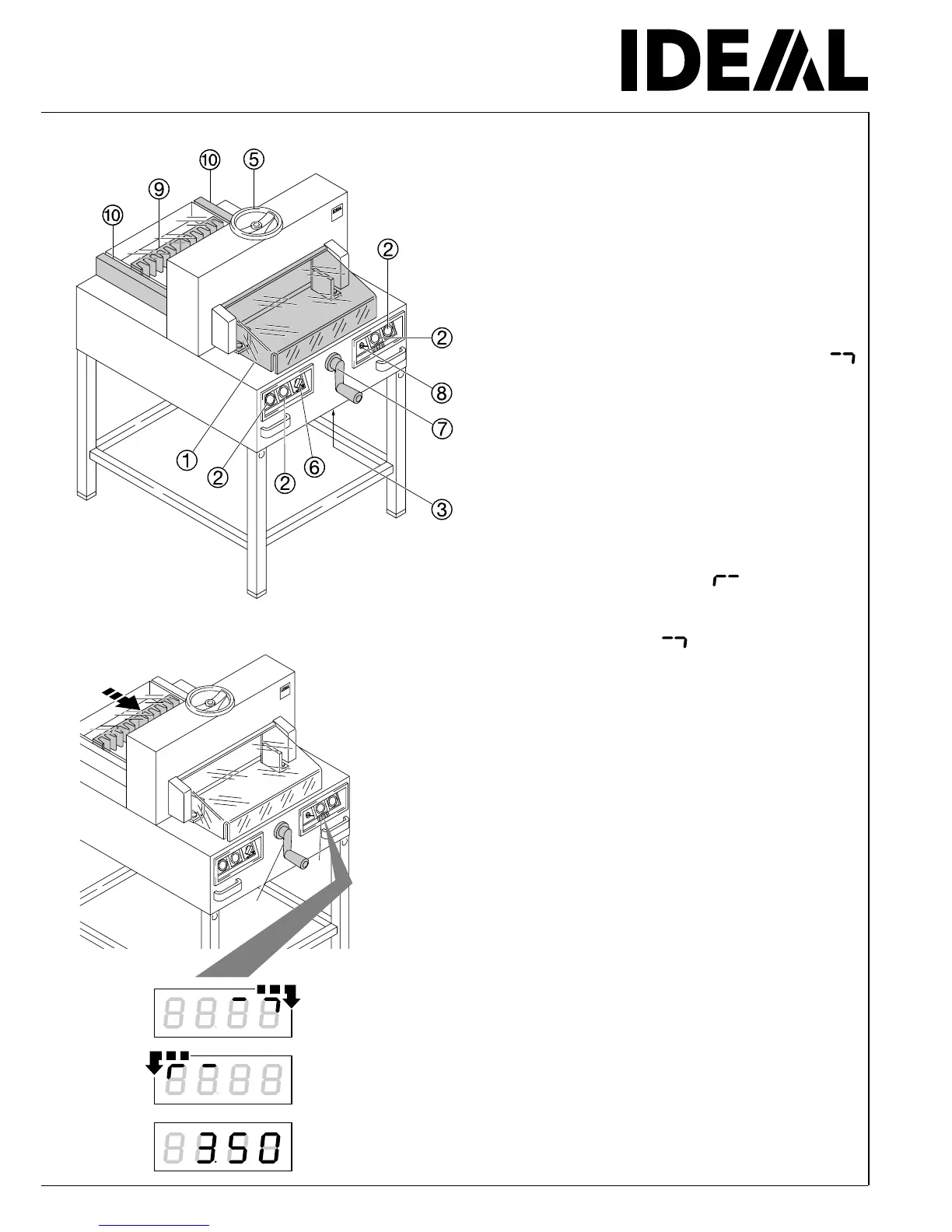

Start machine
•
Main switch
F
to position "I", insert the key
H
for the control panel and turn it to the right.
Open the front safety guard
A
Only by IDEAL 4810-95, IDEAL 4850-95
Cutting to specified dimensions
•
The measurement is set with the backgauge
crank.(A) The symbol – rotary direction –
moves to the right on the display (B) (see
picture C). The rotary direction of the
(backgauge crank (A) is indicated on the
right. Keep turning the backgauge crank to
the right until a measurement appears
(see picture E).
The reference position is reached. The
cutting size can now be set with the
handle (A).
If the backgauge is right at the front the
symbol – rotary direction – ill move to
the left (see picture D). Turn the backgauge
crank to the left until the rotary direction
appears on the right in the display (see
picture C). Afterwards turn the backgauge
crank to the right until a measurements
appears (see picture E). The reference
position is reached. The cutting size can now
be set with the handle (A).
The measurement scale in cm or inch has a
LED display
a
. For information on how to
store see page 22, picture below left.
•
Insert paper and move by means of the
stacking angle to the backgauge
I
and side
lay on the left
J
.
Turn the hand-wheel
E
for paper clamping to
the right and tighten with a short twist.
•
Close the front safety guard
A.
•
Release the cut.
Cut according to markings
•
Adjust the backgauge with the crank handle
G
to the back.
•
Insert paper and move by means of the
stacking angle to the backgauge
I
and side
lay on the left
J.
•
Turn the crank handle
G
to the right until the
marking on the paper to be cut is below the
cutting line indicator.
- 23 -
