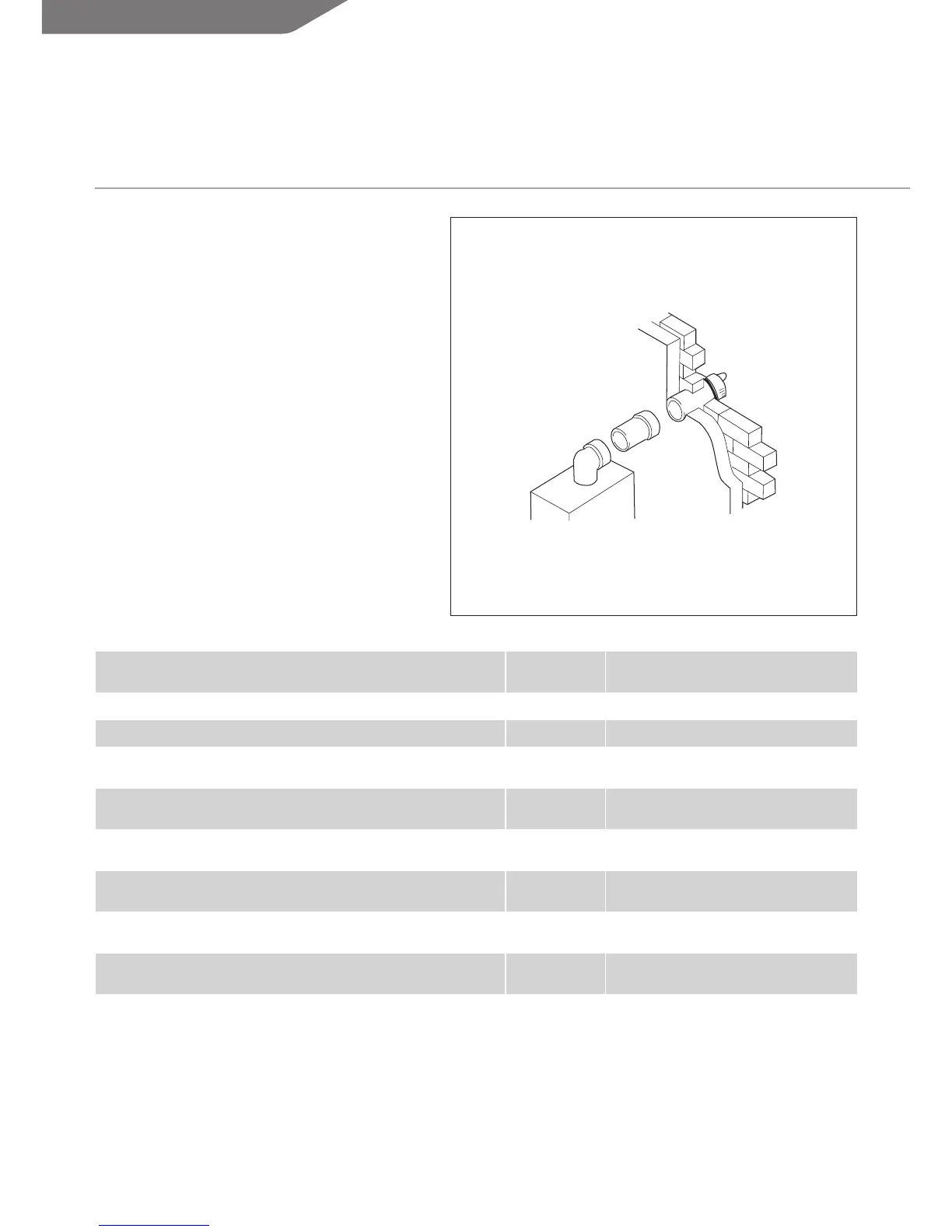

FLUEING OPTIONS
LOGIC COMBI ESP, HEAT & SYSTEM.
46
HORIZONTAL
CONCENTRIC
100MM DIAMETER.
NOTE:
Lengths are from outside edge of turret to
outside wall face.
Where extension D Packs are cut to length,
flared end connector must be retained.
(FOR LOGIC HEAT ONLY - REAR OUTLET
FLUE (55/80) SEE P.66)
FLUE IDEAL
PART NO.
MAXIMUM STRAIGHT
FLUE LENGTH (MM)
Horizontal flue terminal (0.6m long) 208171 556
Telescopic B pack flue (0.6m long) 208169 484
Horizontal flue terminal (0.6m long)
+ 6 x Flue extension 1m (pack D)
208171
6 x 203129
6256 (35 max length 6m)
Telescopic B pack flue (0.6m long)
+ 6 x Flue extension 1m (pack D)
208169
6 x 203129
6184 (35 max length 6m)
Horizontal flue terminal (0.6m long)
+ 8 x Flue extension 1m (pack D)
208171
8 x 203129
8186 (30 max length 8m)
Telescopic B pack flue (0.6m long)
+ 8 x Flue extension 1m (pack D)
208169
8 x 203129
8084 (30 max length 8m)
Horizontal flue terminal (0.6m long)
+ 9 x Flue extension 1m (pack D)
208171
9 x 203129
9000 (12-24 models)
Telescopic B pack flue (0.6m long)
+ 9 x Flue extension 1m (pack D)
208169
9 x 203129
9000 (12-24 models)
