FLUEING OPTIONS
LOGIC COMBI ESP, HEAT & SYSTEM.
48

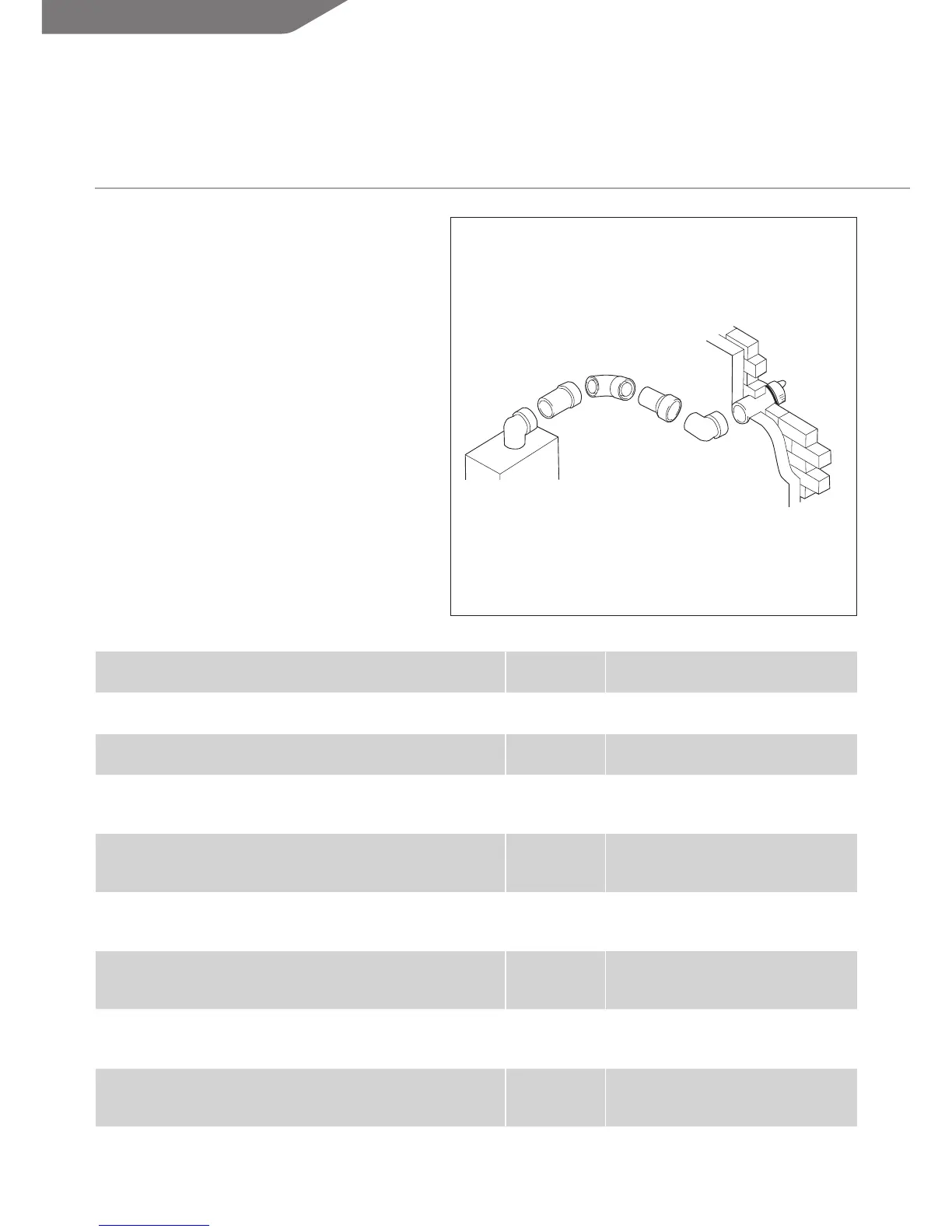

HORIZONTAL
FLUE WITH
2 X 90° ELBOW.
NOTE:
Lengths are sum of all straight lengths
between outside edge of turret to outside
wall face.
Numbers of extension D packs give flexibility
of lengths of straight at either side of elbow.
Where extension D packs are cut to length,
flared end connector must be retained.
FLUE IDEAL
PART NO.
MAXIMUM STRAIGHT
FLUE LENGTH (MM)
Horizontal flue terminal (0.6m long)
+ 2 x Flue 90° elbow kit (60/100)
208171
2 x 203130
556
Telescopic B pack flue (0.6m long)
+ 2 x Flue 90° elbow kit (60/100)
208169
2 x 203130
484
Horizontal flue terminal (0.6m long)
+ 4 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208171
4 x 203129
2 x 203130
4356 (35 max length 4m.
+ 2x 90° elbow)
Telescopic B pack flue (0.6m long)
+ 4 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208169
4 x 203129
2 x 203130
4284 (35 max length 4m.
+ 2x 90° elbow)
Horizontal flue terminal (0.6m long)
+ 6 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208171
6 x 203129
2 x 203130
6286 (30 max length 6m.
+ 2x 90° elbow)
Telescopic B pack flue (0.6m long)
+ 6 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208169
6 x 203129
2 x 203130
6184 (30 max length 6m.
+ 2x 90° elbow)
Horizontal flue terminal (0.6m long)
+ 7 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208171
7 x 203129
2 x 203130
7000 (12-24 models max length
7m. + 2x 90° elbow)
Telescopic B pack flue (0.6m long)
+ 7 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208169
7 x 203129
2 x 203130
7000 (12-24 models max length
7m. + 2x 90° elbow)
