INSTALLATION
Viceroy GT Range - Installation 11
6 OIL OR GAS CONNECTION
See specific technical information supplied with the burner.
Caution: The baffle at the head of the burner must be in line
with the burner door insulation level.
Drilling Ø for burner door (on request).
Gas Supply
The gas supply MUST be sized in accordance with British
Gas recommendations and be fabricated in compliance with
CP.331 Pt.3 any Local Gas Board installation standards.
The Local Gas Board should be contacted, at a stage prior to
actual installation, for any advice or information required.
Details and advice, relating to the use of L.P.G. for firing the
IDEAL VICEROY GT range of heating boilers, are available on
request to Caradon Ideal Ltd.
Oil Storage Tank
The oil storage tank, oil supply pipe and connections to the
burner unit MUST comply with the requirements of BS.779
and CP.5410.
The installation should conform to the recognised standards
of good practice in the trade and comply with the relevant
Codes of Practice, Building Regulations and Local Authority,
Fire and insurance requirements.

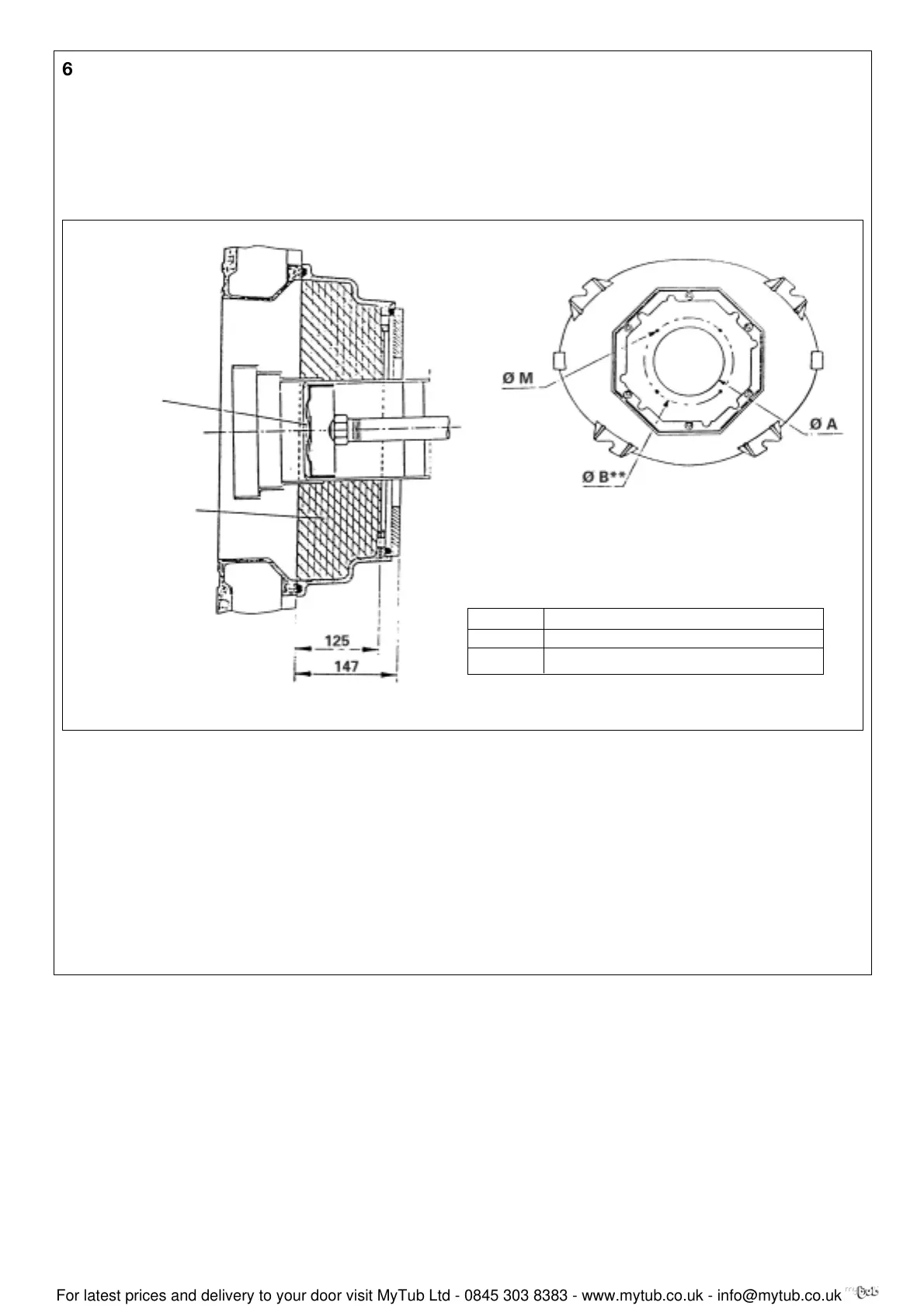

** maxi diameter for fixing:
Ø B maxi = 290 mm
or Ø B maxi = 330 with 4 fixings at 15° or at 45°
Ø A 135 175 190 240 250 290
Ø B** 170 200 220 270 325 330
Ø M 8 8 10101412
8229-EN-10
Burner door
insulation
Baffle
8229-EN-09
To Next Page
