mains at all poles with a contact opening
width of at least 3 mm, eg. automatic line
protecting cut-out, earth leakage trips or
fuse.
• You must have the connection and the
connecting links carried out as shown in
the connection diagram (it is located on
the underneath surface of the casing of
the hob). The earth lead is connected to
terminal marked with the symbol and
must be longer than leads carrying
electric current. Tighten the terminal
screws securely! Finally, secure the
connecting cable with the mains cable
cleat and the covering closed by
pressing firmly (lock into place).
Warning! Once connected to the
mains supply check that all
cooking zones are ready for use
by briefly setting each to
maximum power.
Product description

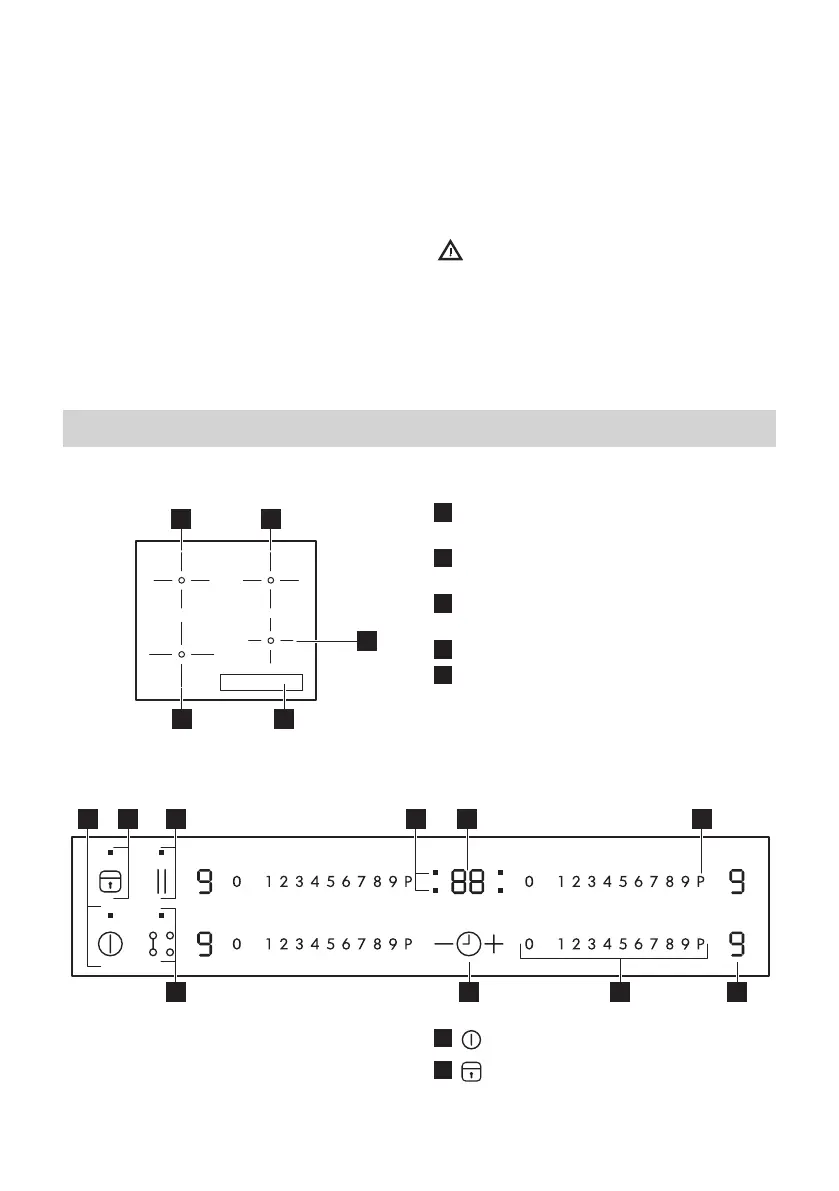

Cooking surface layout
3
1 2
45
1
Single cooking zone (210 mm) 2300 W,
with Booster 3200 W
2
Single cooking zone (180 mm) 1800 W,
with Booster 2500 W
3
Single cooking zone (145 mm) 1400 W,
with Booster 1800 W
4
Control panel
5
Single cooking zone (210 mm) 2300 W,
with Booster 3200 W
Control panel layout
1 2 3 4 5 6
78910
Press the symbol to operate the appliance.
The display, indicators and sounds tell
which function operate.
1
To activate or deactivate the hob.
2
To activate and deactivate the Lock
or the Child Safety Device.
ENGLISH 10

IKEA SMAKLIG Specifications

General

Type	Induction
Control type	Touch
Power levels	9
Timer	Yes
Child lock	Yes
Voltage	220-240 V
Frequency	50-60 Hz
Safety features	Overheating protection
