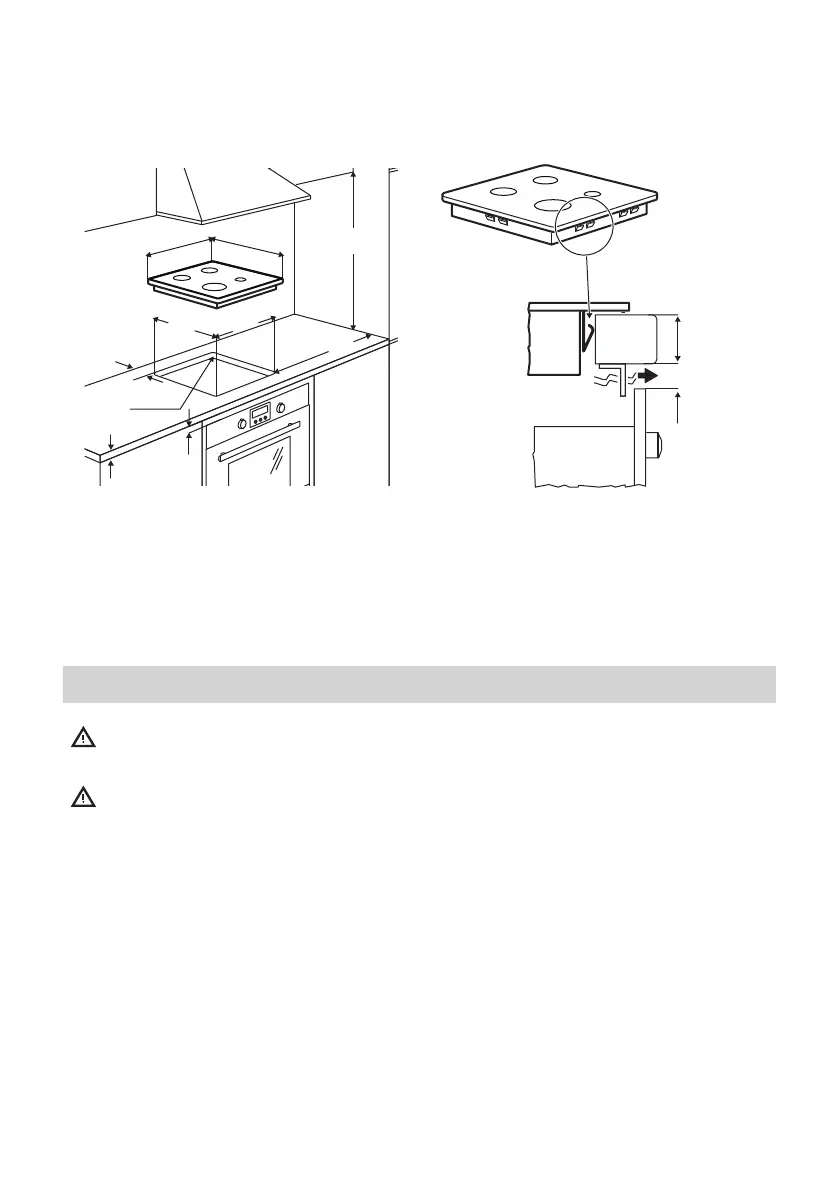

max.
R 5 mm
490
±1
mm
560
±1
mm
520 mm
590 mm
min.
55 mm
min.
500 mm
min.
38 mm
5 mm
min. 50 mm
Important!
• For further information on the installation
refer to the Assembly Instruction.
• If there is no oven beneath the hob insert
a dividing panel at a minimum distance
of 20 mm from the bottom of the hob.
• Do not use silicon sealant between the
appliance and the worktop.
Electrical connection
Warning! Refer to Safety
chapters.
Warning! All electrical
connections must be made by an
authorised installer.
Electrical connection
• Before connecting, check that the
nominal voltage of the appliance stated
on the rating plate, corresponds to the
available supply voltage. Also, check the
power rating of the appliance and
ensure that the wire is suitably sized to
suit the appliance power rating (refer to
the "Technical information" chapter). The
rating plate is located on the lower
casing of the hob.
• The appliance is not provided with a
mains cable. Buy the right one from
specialized dealer. Single phase or two-
phase connection requires a mains cable
of minimum 70°C temperature stability.
Cable has been provided with end
sleeves. According to IEC regulations use
for one-phase connection: mains cable 3
x 4mm² and for two-phase connection:
mains cable 4 x 2.5mm². Please respect
in first priority specific national
regulations.
• The appliance works perfectly on AC
230 V, AC 220 V~ or AC 240 V~ 50 Hz
electrical network.
• You must have the means for
disconnection incorporated in the fixed
wiring. Have the appliance connected to
the mains using a device that allows the
appliance to be disconnected from the
ENGLISH 9
