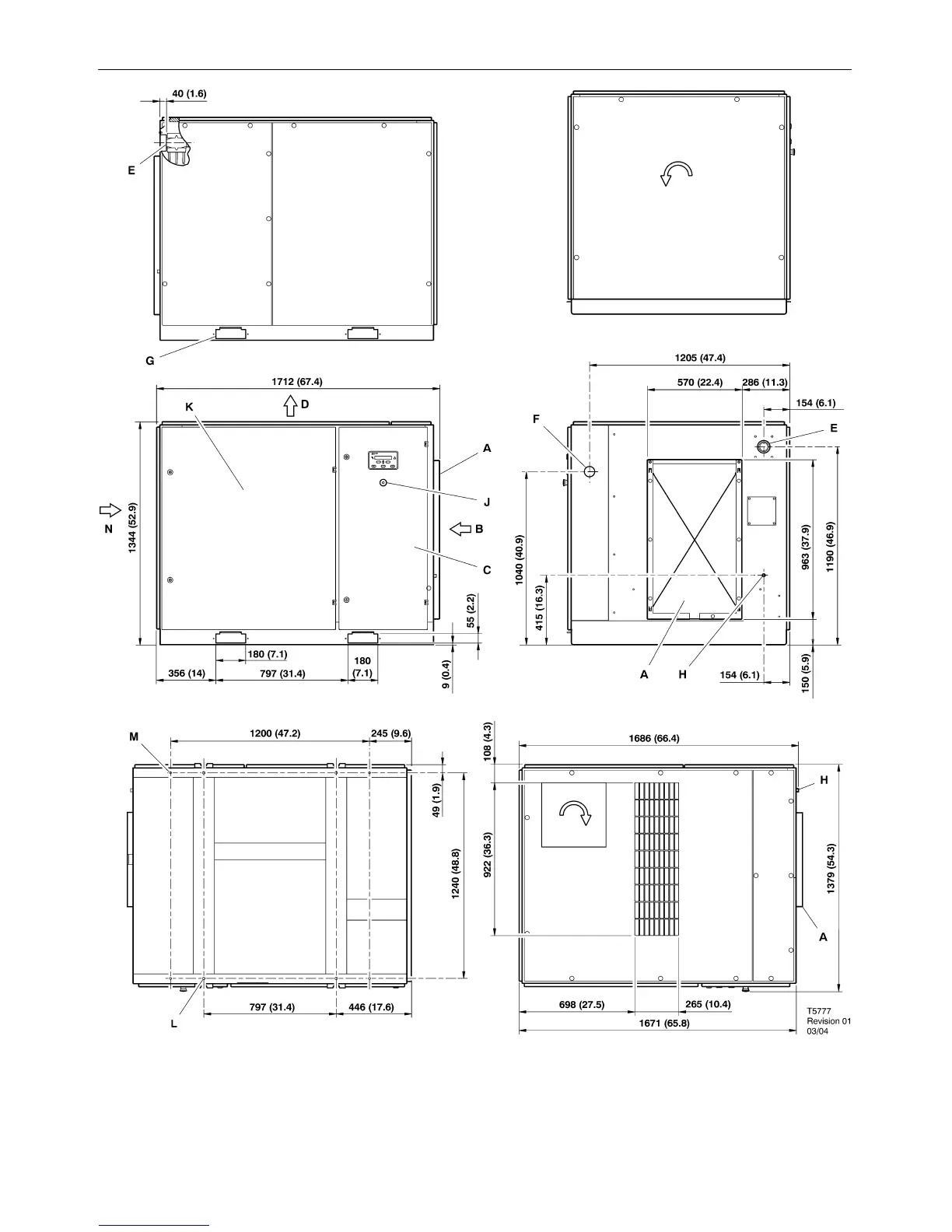

INSTALLATION / HANDLING
12
SSR UP6 40, SSR UP6 50PE, SSR UP6 50PEI, HF50–PE, EP50–PE,
HP50–PE, HXP50–PE
http://air.ingersollrand.com
ROTATION
VIEW LEFT
VIEW FRONT VIEW RIGHT
VIEW TOPVIEW BOTTOM
VIEW REAR
Note: Dimensions are mm (inches)
DRYER
ROTATION
