OPERATING INSTRUCTIONS – ELECTRO–PNEUMATIC
24
SSR UP6 40, SSR UP6 50PE, SSR UP6 50PEI, HF50–PE, EP50–PE,
HP50–PE, HXP50–PE

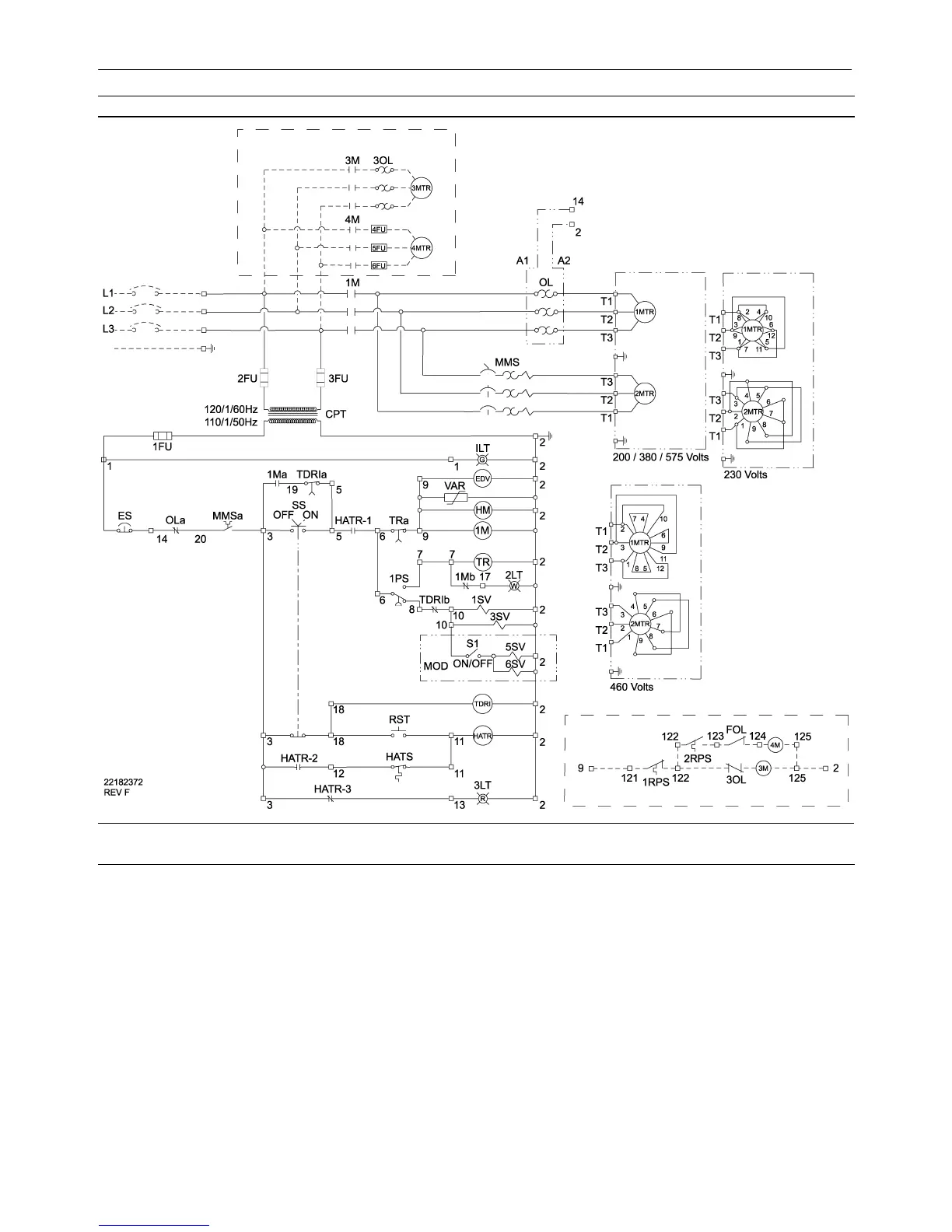

FULL VOLTAGE WIRING SCHEMATIC
DRYER OPTION
SEE NOTES 1 & 2
DRYER OPTION
LEGEND
CPT Transformer
EDV Valve, electric drain
ES Switch, emergency stop
FOL Overload, internal fan (option)
1FU Fuse, secondary voltage
2FU, 3FU Fuses, primary voltage
4FU,
5FU, 6FU
Fuses, dryer fan (option)
HATR Relay, high air temperature
HATR
1,2,3
Contacts, relay – HATR
HATS Switch, high air temperature.
HM Hourmeter
1LT Light, power on indicator (Green)
2LT Light, auto restart indicator (White)
3LT Fault indicator light (Red)
1M Contactor, main
1Ma, b Contacts, aux. main contactor
3M Contactor, dryer compressor (option)
4M Contactor, dryer fan (option)
MMS Starter & overload, fan motor
MMSa Contact, fan motor overload
MOD Modulation control option
1MTR Motor, compressor
2MTR Motor, fan
3MTR Motor, dryer compressor (option)
4MTR Motor, dryer fan (option)
OL Overload, main motor
OLa Contact, main motor overload
3OL
Overload, dryer compressor (option)
