OPERATING INSTRUCTIONS – ELECTRO–PNEUMATIC
28
SSR UP6 40, SSR UP6 50PE, SSR UP6 50PEI, HF50–PE, EP50–PE,
HP50–PE, HXP50–PE

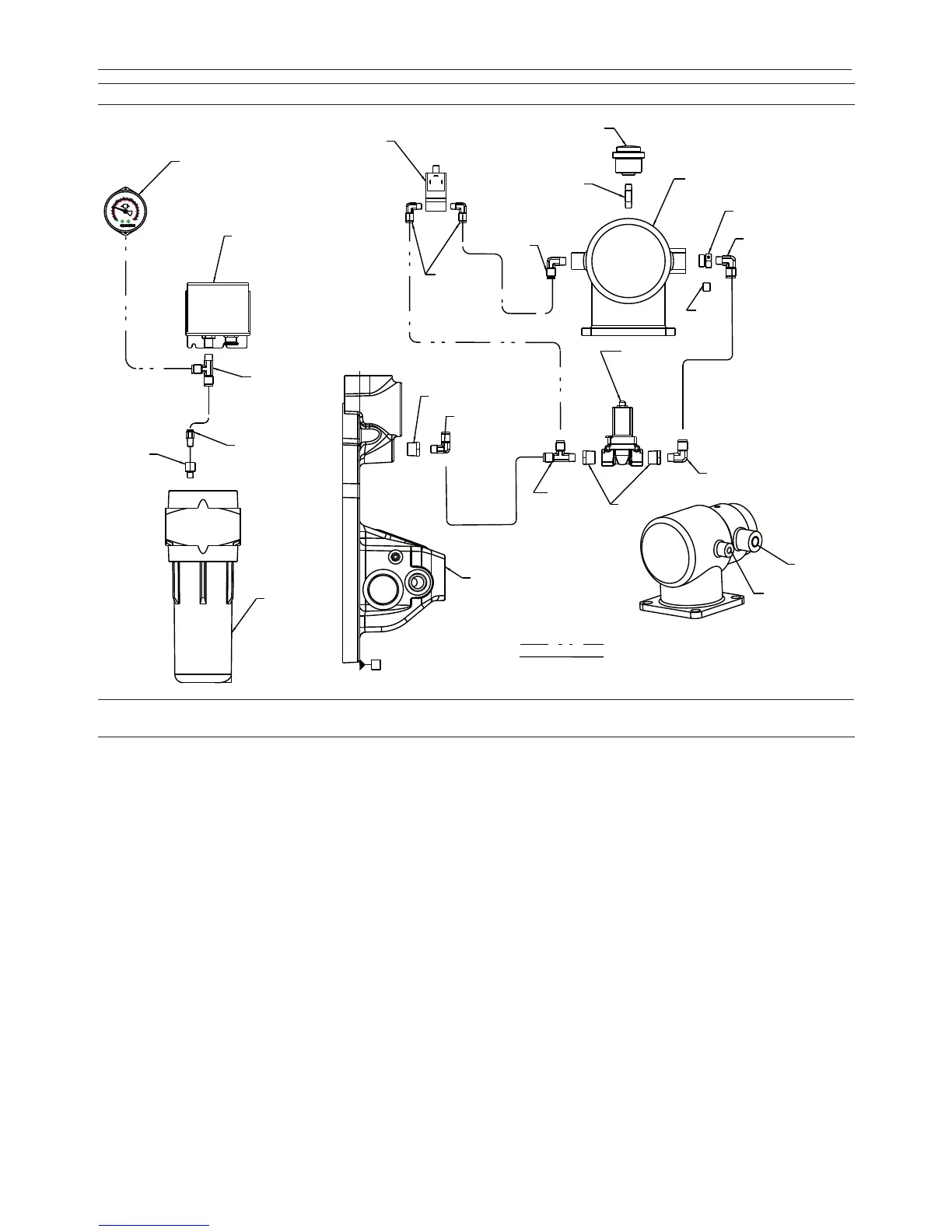

CONTROL PIPING DIAGRAM
KEY
1. Pressure gauge
2. Pressure switch
3. Tee
4. Connector
5. Moisture separator
6. Elbow
7. Tee, male run
8. Reducer bushing
9. Blow down solenoid valve
10.Load solenoid valve
11.Indicator air filter
12.Nipple
13.Adaptor
14.Intake valve assembly
15.Separator tank
16.Tee
17.Valve
18.Plug
17.Valve
NOTES:
A. Tubing 3/8 inch
B. Tubing 1/4 inch
1
2
3
4
13
22250039
Revision F
09/06
5
15
6
8
7
8
A
B
6
6
18
13
14
12
11
6
6
10
9
A
P
R
ADAPTER INTO
THIS PORT
PLUG INTO
THIS PORT
A
http://air.ingersollrand.com
