‑31‑

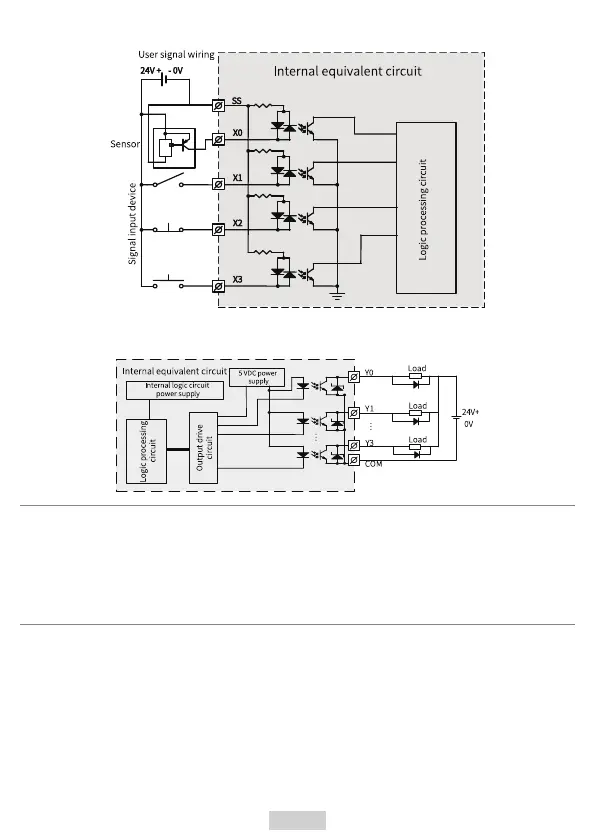

■ SOURCE input wiring
3.3 Wiring of Output Terminals
Note
Connect a flywheel diode when connecting the external inductive load. Diodes can be
1N4001 or similar.
