Inovance GL20-4AD User Manual

‑8‑
Model Description Product Code Applicable Model
GL20‑4AD GL20 series 4‑channel analog
input module supports
voltage/current input.
01440288 AC800 series, Easy series

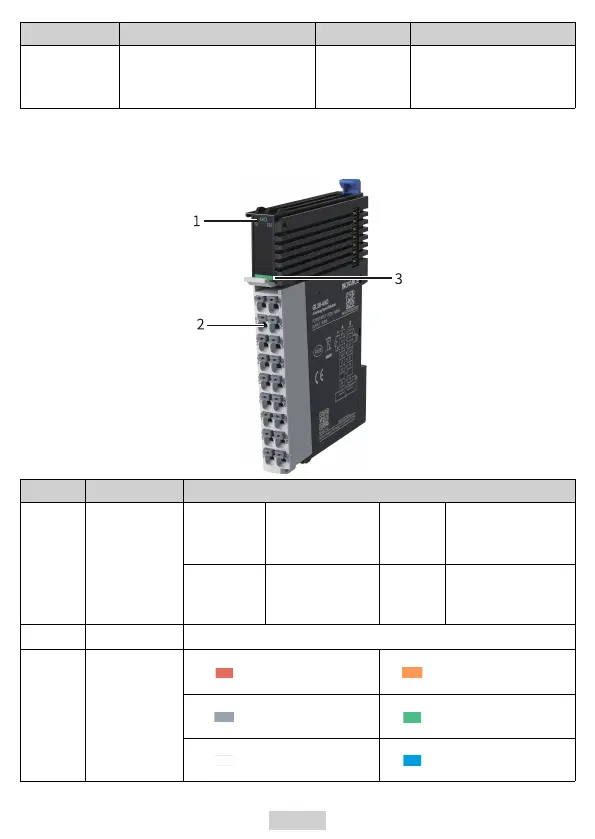

1.2 Components
The following describes the terminals of the module.
No. Name
Description
1
Signal
indicators
PR (POWER
+RUN)
Power / running
indicator
Yellow
green
ON when the
module is in normal
operation
ERR
State machine
error indicator
Red ON when an error
occurs in the state
machine
2 Terminals See Terminal Definition for detailed definition
3
Color
identification
Red: Digital
output
Orange: Analog
output
Gray: Digital
input
Green: Analog input
White:
Communication
Blue: Other module

Inovance GL20-4AD Specifications

General

Brand	Inovance
Model	GL20-4AD
Category	Control Unit
Language	English
