MD380 User Manual Selection and Dimensions
- 287 -
AC Drive Model
MCCB
(A)
Contactor
(A)
Cable of Input
Side Main Circuit
(mm
2
)
&DEOHRI2XWSXW
Side Main Circuit
(mm
2
)
Cable of
Control Circuit
(mm
2
)
MD380-7T400G
MD380-7T400P
630 500 240 240 1.0
MD380-7T450G
MD380-7T450P
700 630 120 x 2 120 x 2 1.0
MD380-7T500G
MD380-7T500P
800 630 150 x 2 150 x 2 1.0
MD380-7T560P 800 800 150 x 2 150 x 2 1.0
8.5 Selection and Installation of External DC Reactor
8.5.1 Installation Mode of External DC Reactor
7KH0'VHULHV$&GULYHVRIRYHUN:SRZHU7LVN:DUHFRQ¿JXUHGZLWKDQ
external DC reactor as standard. The DC reactor is packed in separate wooden box for
delivery.
:KHQLQVWDOOLQJWKH'&UHDFWRUUHPRYHWKHVKRUWLQJFRSSHUEXVEDUEHWZHHQWKHPDLQFLUFXLW
connection terminals P and +. Then connect the DC reactor between terminals P and +
(no polarity requirement). The copper busbar is not used any longer after the installation is
complete.
Note
Customized models can be provided for special requirements.
.
8.5.2 Physical Dimensions of External DC Reactor

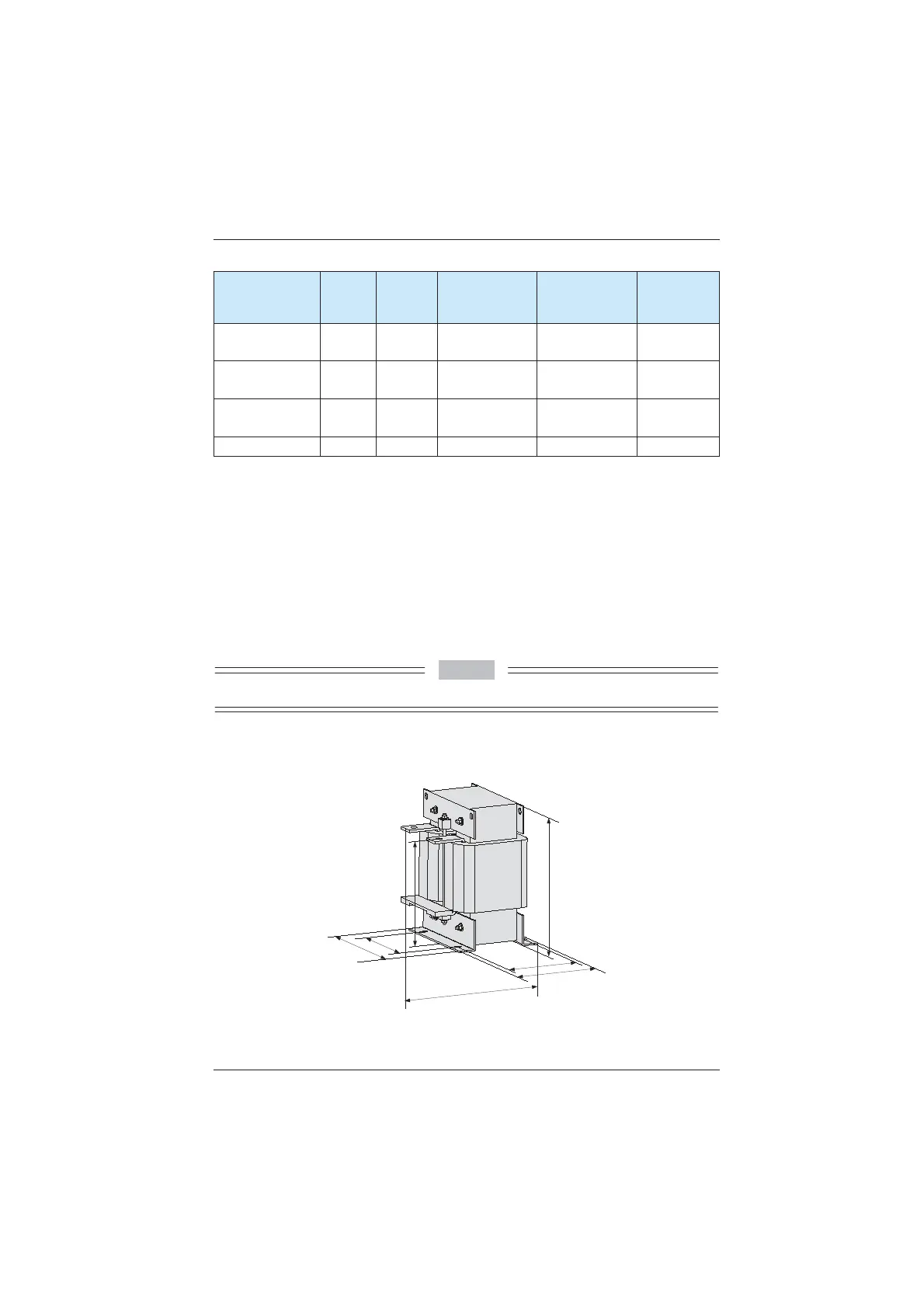

Figure 8-15 Physical dimensions of external DC reactor
C
D
A
B
E
G
F
