Making connections
What connection should I use?
Your TV has several connection types for
connecting devices to your TV.
For the best video quality, you should connect a
device to the best available connection.

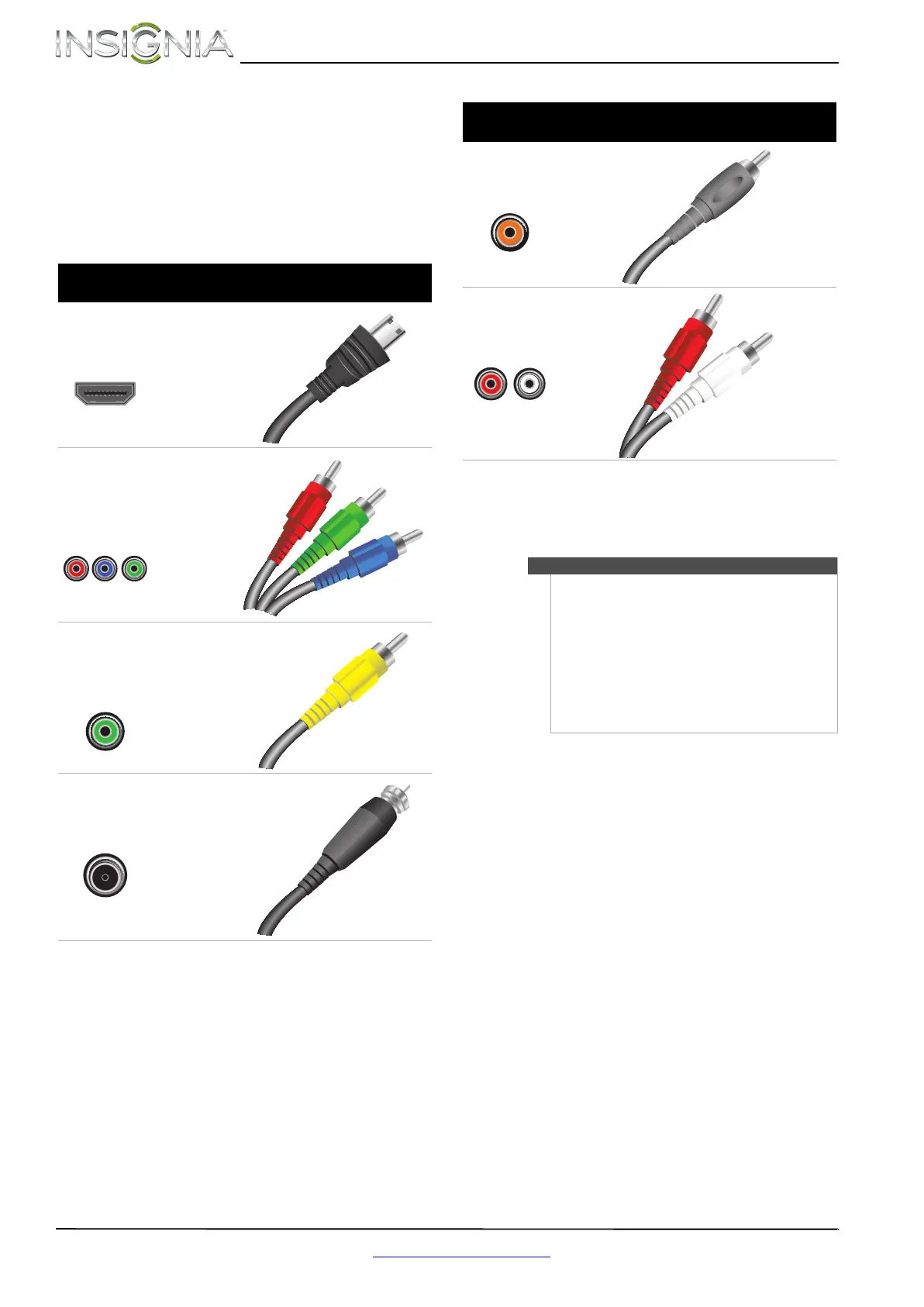

Use the following tables to identify cables:
You can use the HDMI 1 (DVI) jack on your TV to
connect a DVI device to your TV. You need to attach
an HDMI-to-DVI adapter to the end of the HDMI
cable that connects to the DVI device.
Connection type
and jack
Video quality Cable connector
HDMI
video/audio
Best (use this
if your devices
have HDMI)
Component
video (requires
an audio
connection)
Better than
composite or
coaxial
Composite video
(requires an
audio
connection)
Better than
coaxial
Coaxial
video/audio
Good
Connection type
and jack
Cable connectors
Coaxial digital
audio
Analog audio
Cautions
• Check the jacks for position and type before
making any connections.
• Loose connections can result in image or color
problems. Make sure that all connections are
tight and secure.
• The external audio/video equipment shown
may be different from your equipment. If you
have questions, refer to the documentation that
came with your equipment.
• Always unplug the power cord when
connecting external equipment.
