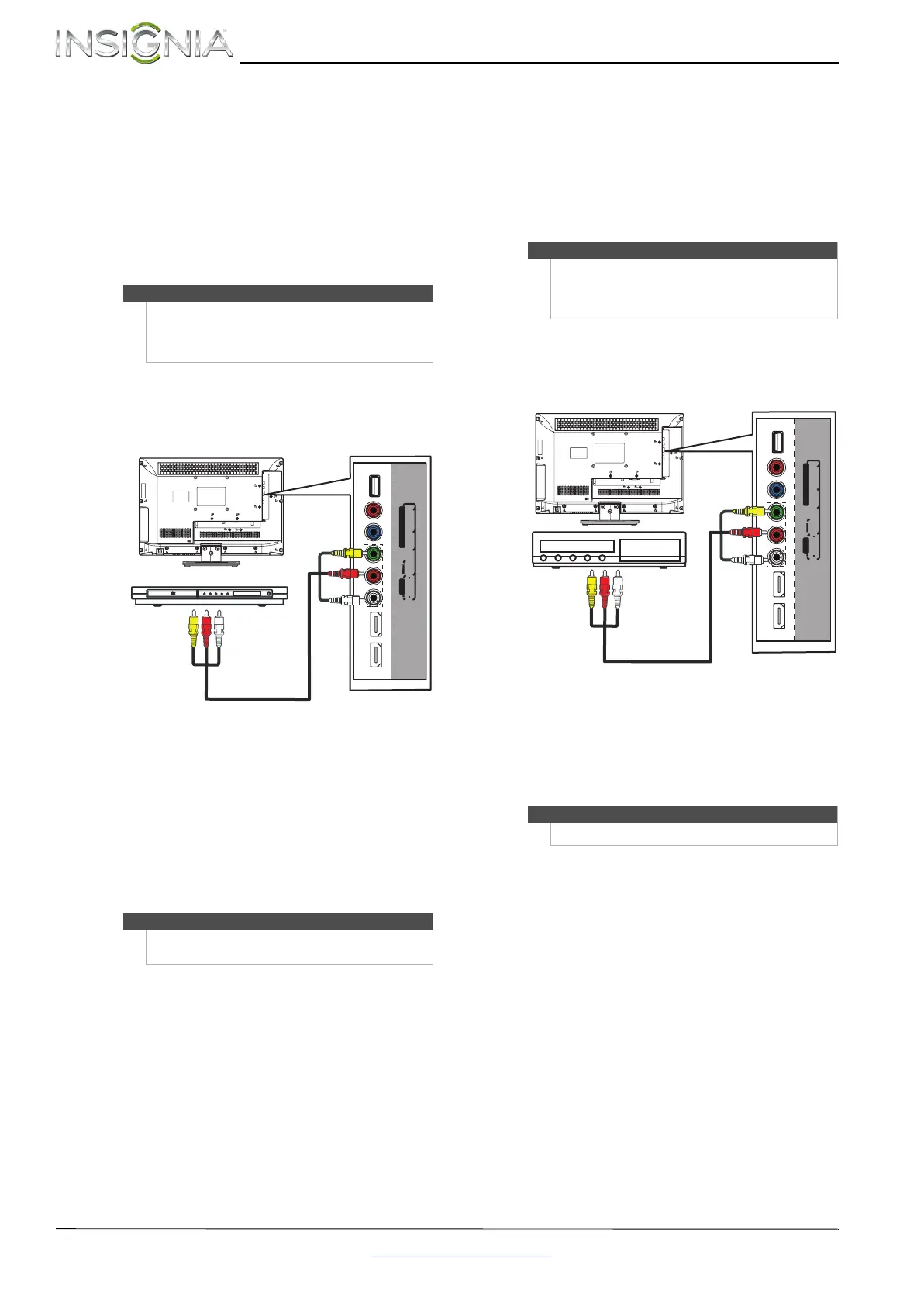

Using composite video (good)
To connect a DVD or Blu-ray player using
composite video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an AV cable (not provided) to the
AV IN VIDEO jack and L/R AUDIO jacks on the
side of your TV and to the AV OUT jacks on the
DVD or Blu-ray player.
3 Plug your TV’s power cord into a power outlet,
then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to
the correct output mode. For more information,
see the documentation that came with the
player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select COMP/AV, then press
ENTER.
Connecting a VCR
To connect a VCR:
1 Make sure that your TV’s power cord is
unplugged and the VCR is turned off.
2 Connect an AV cable (not provided) to the
AV IN-VIDEO and L/R AUDIO jacks on the side
of your TV and to the AV OUT jacks on the VCR.
3 Plug your TV’s power cord into a power outlet,
then turn on your TV and the VCR.
4 Press INPUT to open the INPUT SOURCE list.
5 Press
S or T to select COMP/AV, then press
ENTER.
6 Insert a videotape in the VCR, then press PLAY
on the VCR.
Note
•The AV IN VIDEO jack shares the audio jacks
with the COMPONENT IN video jacks.
• When you connect the audio using the
L/RAUDIO jacks, the audio output is analog.
Notes
You can also press VIDEO to select the DVD or Blu-ray
player.
AUDIO
LR
VI
D
EO/
Y
P
B P
R
U
SB
H
DMI
2
(
A
RC)
HDM
I
1
(DVI)
C
O
MP
O
NE
N
T
I
N
AV IN
DVD or Blu-ray player
Cables are often color-coded to match
color-coded jacks.
Note: The yellow video connector on
the AV cable connects to the green
AV IN VIDEO jack.
AV cable
Side of TV
Note
•The AV IN VIDEO jack shares the audio jacks
with the COMPONENT IN video jacks.
• When you connect the audio using the
L/RAUDIO jacks, the audio output is analog.
Note
You can also press VIDEO to select the VCR.
AUDIO
LR
VI
D
EO/
Y
P
B P
R
U
SB
H
DMI
2
(
A
RC)
HDM
I
1
(DVI)
C
O
MP
O
NE
N
T
I
N
AV IN
VCR
Cables are often color-coded to
match color-coded jacks.
Note: The yellow video connector
on the AV cable connects to the
green AV IN VIDEO jack.
AV cable
Side of TV
