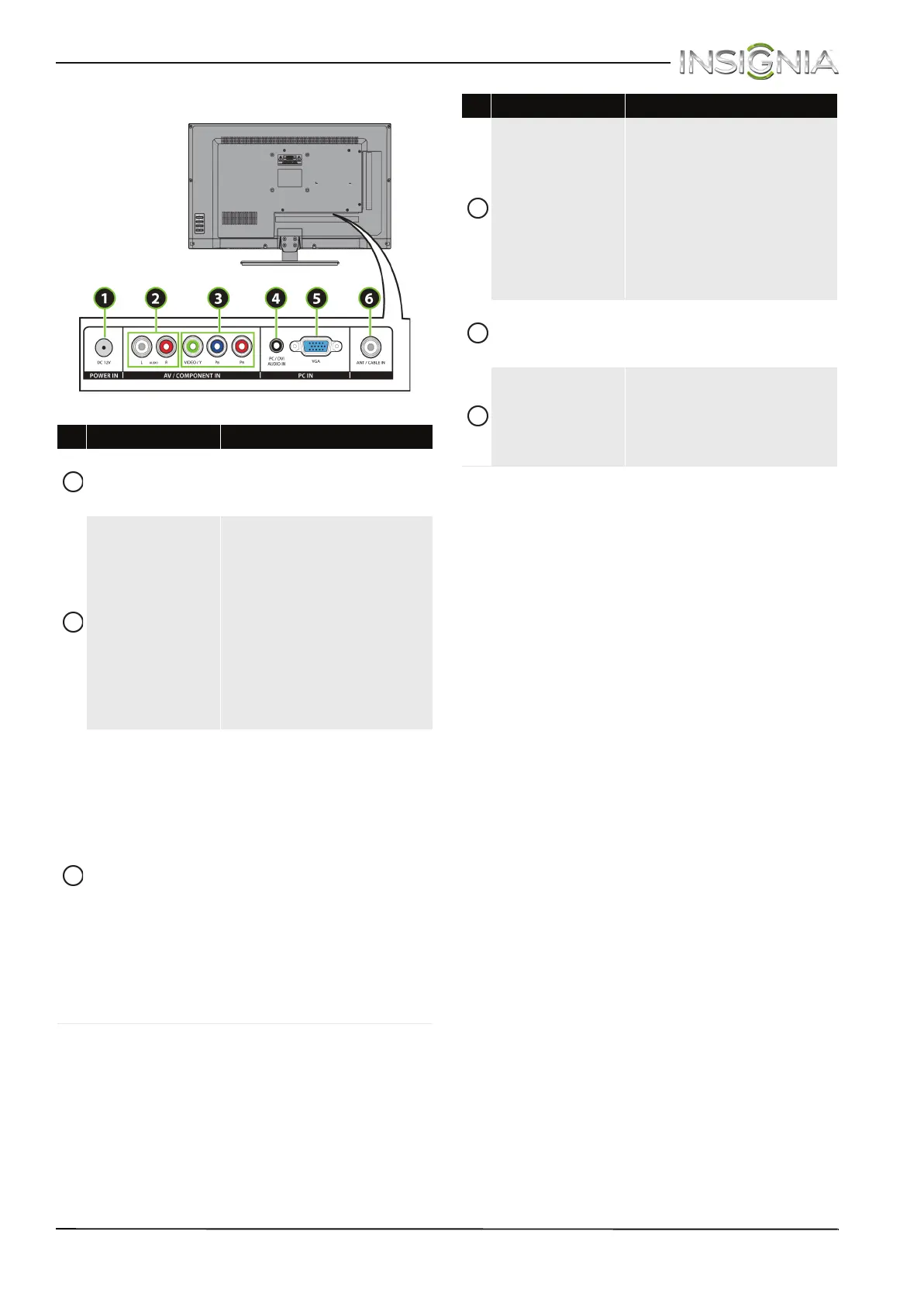

Back jacks
# Item Description
POWER IN
Connect the AC power adapter
to this jack. For more
information, see “Connecting
power” on page 33.
L and R AUDIO
Connect the audio for a
component video device to
these jacks. For more
information, see “Using
component video (better)” on
page 14, 20, or 23.
OR
Connect the audio for a
composite video device to
these jacks. For more
information, see “Using
composite video (good)” on
page 15, 21, or 24.
AV/COMPONENT IN
VIDEO/Y, P
B, PR
OR
AV/COMPONENT IN
VIDEO/Y
The AV/COMPONENT IN
VIDEO/Y jack works as one of
the three component video
jacks or as a composite video
jack.
Connect the video for a
component video device to
these jacks. For more
information, see “Using
component video (better)” on
page 14, 20, or 23.
OR
Connect the video for a
composite video device to the
AV/COMPONENT IN VIDEO/Y
jack. For more information, see
“Using composite video (good)”
on page 15, 21, or 24.
1
2
3
PC/DVI AUDIO IN
Connect the audio for a
computer to this jack. For more
information see “Using VGA
(most common)” on page 27.
OR
Connect the audio for a DVI
device to this jack. For more
information see, “Using DVI
(same as HDMI but requires an
audio connection)” on
pages 13, 19, or 26.
VGA
Connect the video (VGA) for a
computer to this jack. For more
information, see “Using VGA
(most common)” on page 27.
ANT/CABLE IN
Connect an antenna or cable TV
to this jack. For more
information, see “Using coaxial
(good)” on page 16 or
“Connecting an antenna or
cable TV (no box)” on page 17.
# Item Description
3
4
5
