Using component video (better)
To connect a cable or satellite box using component video:
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect a component video cable (not provided) to the COMPONENT/AV Y/VIDEO, P
B, and PR video jacks on
the back of your TV and the component video out jacks on the cable or satellite box.
4 Connect an audio cable (not provided) to the L and R audio jacks on the back of your TV and to the audio out
jacks on the cable or satellite TV box.
5 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
6 Press INPUT to open the INPUT SOURCE list.
7 Press
S or T to highlight Component, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Notes
•The COMPONENT/AV Y/VIDEO, P
B, and PR video jacks (used to connect
a component device) share the L and R audio jacks with the
COMPONENT/AV Y/VIDEO jack (used to connect a composite device).
• When you connect the audio using the L and R audio jacks, the audio
output is analog.

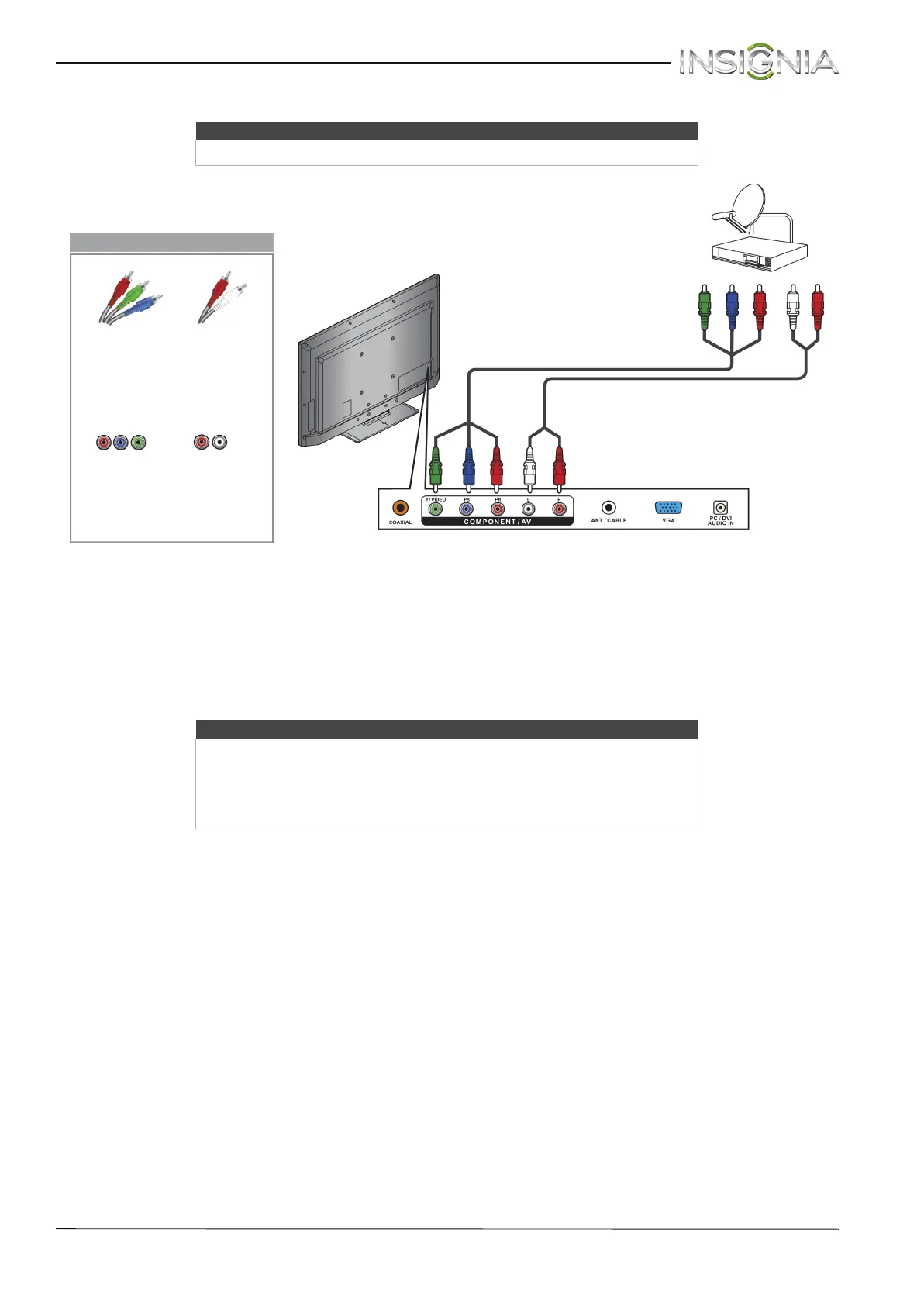

Audio cable
Cable or
satellite box
Component video cable
Back of TV
Component
video cable
connectors
Analog
audio cable
connectors
Analog
audio jacks
Component
video jacks
