Intel Desktop Board D410PT Technical Product Specification
46
2.2.2.4 Front Panel Header
This section describes the functions of the front panel header. Table 21 lists the signal
names of the front panel header. Figure 11 is a connection diagram for the front panel
header.
Table 21. Front Panel Header
Pin
Signal
In/
Out
Description
Pin
Signal
In/
Out
Description
Hard Drive Activity LED Power LED
1 HD_PWR Out Hard disk LED
pull-up to +5 V
2 HDR_BLNK_GRN Out Front panel green
LED
3 HDA# Out Hard disk active
LED
4 HDR_BLNK_YEL Out Front panel yellow
LED
Reset Switch On/Off Switch
5 Ground Ground 6 FPBUT_IN In Power switch
7 FP_RESET# In Reset switch 8 Ground Ground
Power Not Connected
9 +5 V Power 10 N/C Not connected

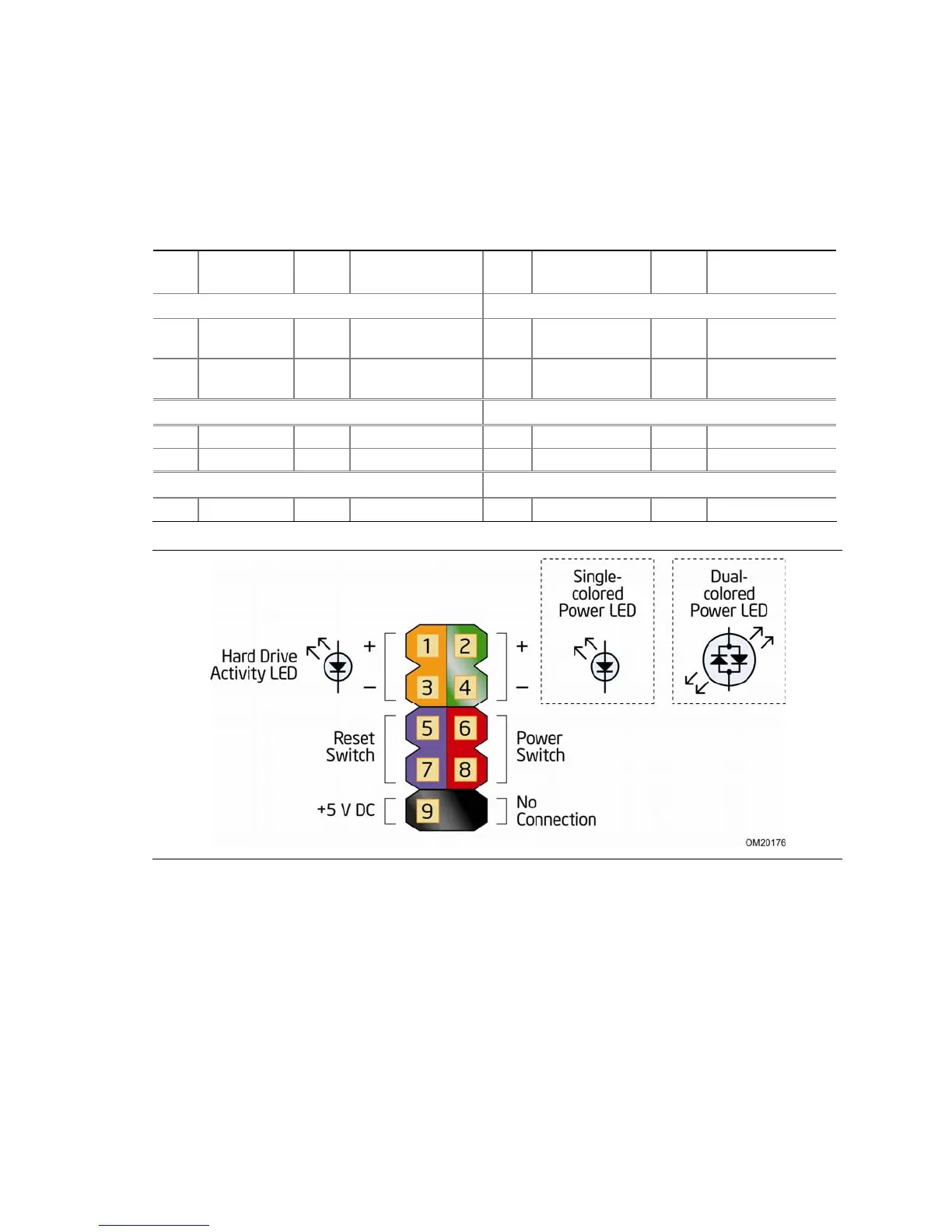

Figure 11. Connection Diagram for Front Panel Header
