1.4.1 Memory Configurations
The processor supports the following types of memory organization:
• Dual channel (Interleaved) mode. This mode offers the highest throughput for
real world applications. Dual channel mode is enabled when the installed memory
capacities of both SO-DIMM channels are equal. Technology and device width can
vary from one channel to the other but the installed memory capacity for each
channel must be equal. If different speed SO-DIMMs are used between channels,
the slowest memory timing will be used.
• Single channel (Asymmetric) mode. This mode is equivalent to single channel
bandwidth operation for real world applications. This mode is used when only a
single SO-DIMM is installed or the memory capacities are unequal. Technology and
device width can vary from one channel to the other. If different speed SO-DIMMs
are used between channels, the slowest memory timing will be used.
For information about…
Refer to:
Memory Configuration Examples http://www.intel.com/NUCSupport

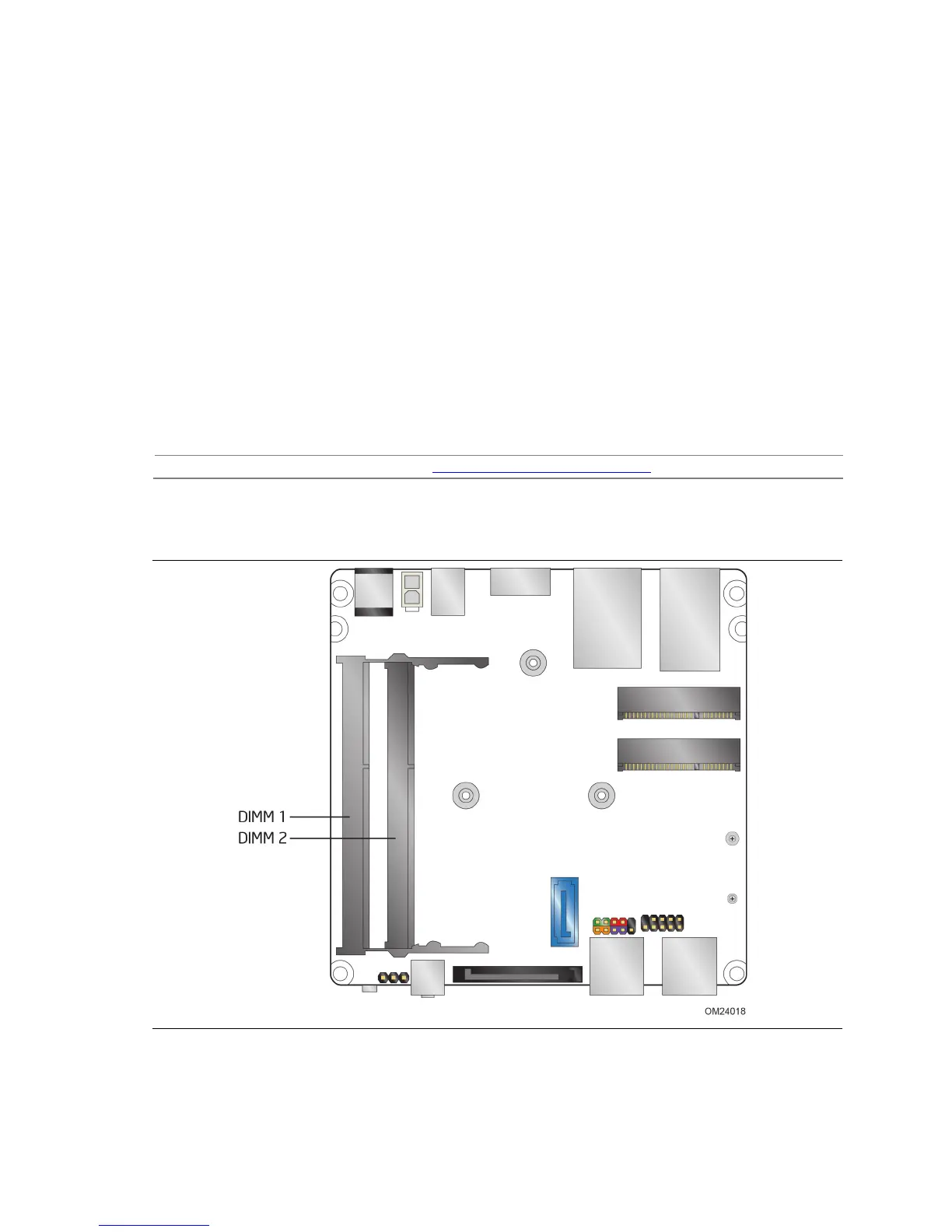

Figure 4 illustrates the memory channel and SO-DIMM configuration.
Figure 4. Memory Channel and SO-DIMM Configuration

Intel D54250WYK Specifications

General

Socket	Soldered-down BGA
Number of Internal Drives Supported	2
TDP	15 W
Intel® vPro™ Technology	No
Intel® Visual BIOS	Yes
Intel® Boot Agent	Yes
Number of SATA Ports	2
Number of USB Ports	8
Integrated Bluetooth	Yes
Consumer Infrared Rx Sensor	Yes
HDMI Port Quantity	1
Mini DisplayPort Quantity	1
Number of Displays Supported	3
Total Memory Size	16 GB
Number of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Number of DIMMs	2
ECC Memory Supported	No
Supported Operating Systems	Windows 8.1, Windows 8, Windows 7
Board Form Factor	UCFF
Internal Drive Form Factor	2.5" SSD or HDD
DC Input Voltage Supported	12-19 V
Processor Included	Intel Core i5-4250U
RAID Configuration	No
USB Revision	USB 3.0
Integrated Wireless	Intel Dual Band Wireless-AC 7260
Memory Types	DDR3L 1333/1600 1.35V SO-DIMM
Integrated LAN	Gigabit Ethernet
