16 Intel Desktop Board D865GBF/D865GLC Quick Reference
See Figure 9 for the location of the power connectors.
1. Observe the precautions in “Before You Begin” on page 3.
2. Connect the 12 V processor core voltage power supply cable to the 2x2
connector.
3. Connect the main power cable to the 2x10 connector.
Using the BIOS Setup Program
The BIOS Setup program can be used to view and change the BIOS settings for
the computer. The BIOS Setup program is accessed by pressing the <F2> key
after the Power-On Self-Test (POST) memory test begins and before the
operating system boot begins.
Setting the BIOS Configuration Jumper Block
CAUTION
Always turn off the power and unplug the power cord from the computer
before changing the jumper block settings. Moving the jumper with the
power on may result in unreliable computer operation.
The BIOS configuration jumper block (see Figure 10) determines the operating
mode of the BIOS Setup Program and enables BIOS recovery in the event of a
failed BIOS update.
OM15249
1
3
J9J4

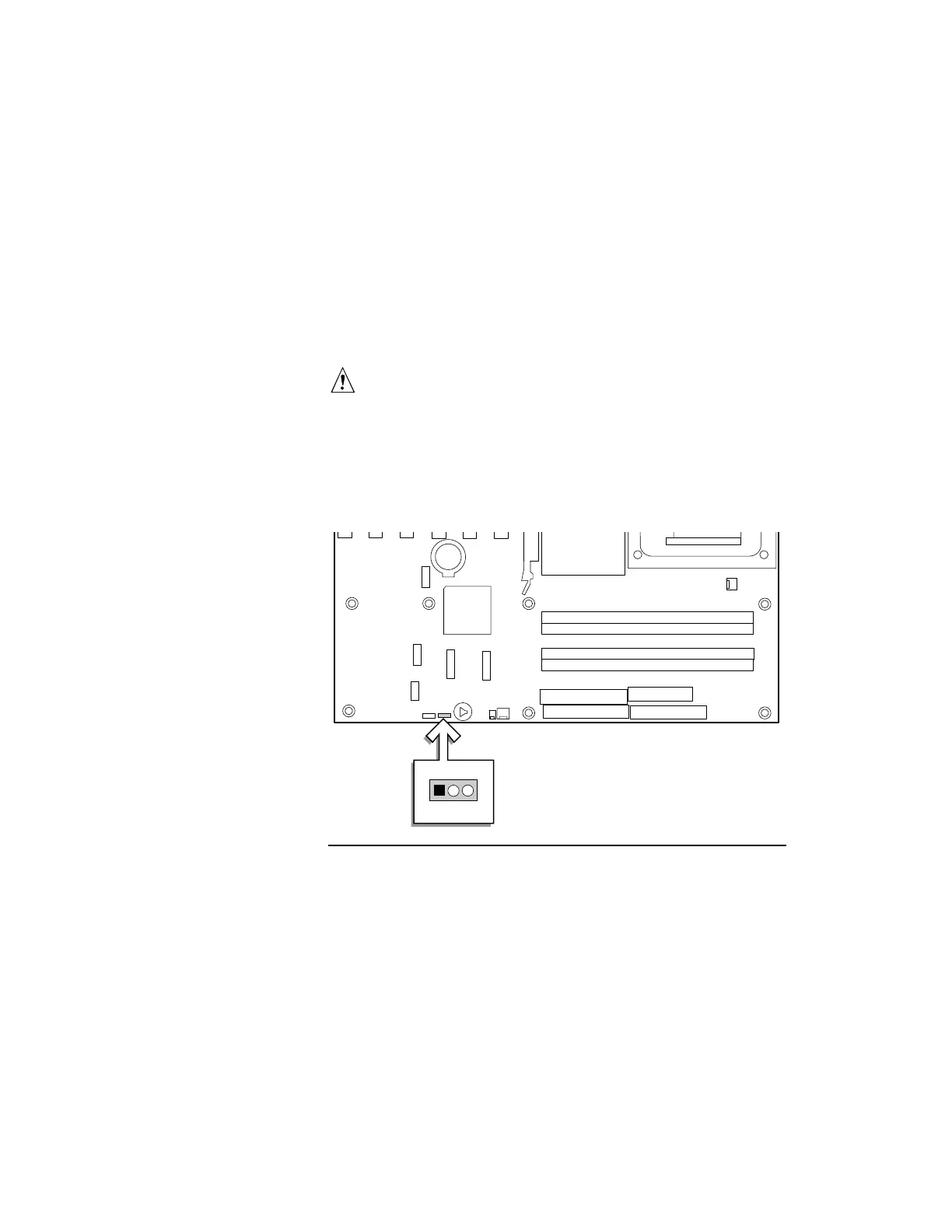

Figure 10. Location of the BIOS Configuration Jumper Block

Intel D865GBF Specifications

General

Brand	Intel
Model	D865GBF
Category	Motherboard
Language	English
