Installing and Replacing Desktop Board Components
35
Installing DIMMs
To make sure you have the correct DIMM, place it on the illustration of the DDR2
DIMM in Figure 14. All the notches should match with the DDR2 DIMM.

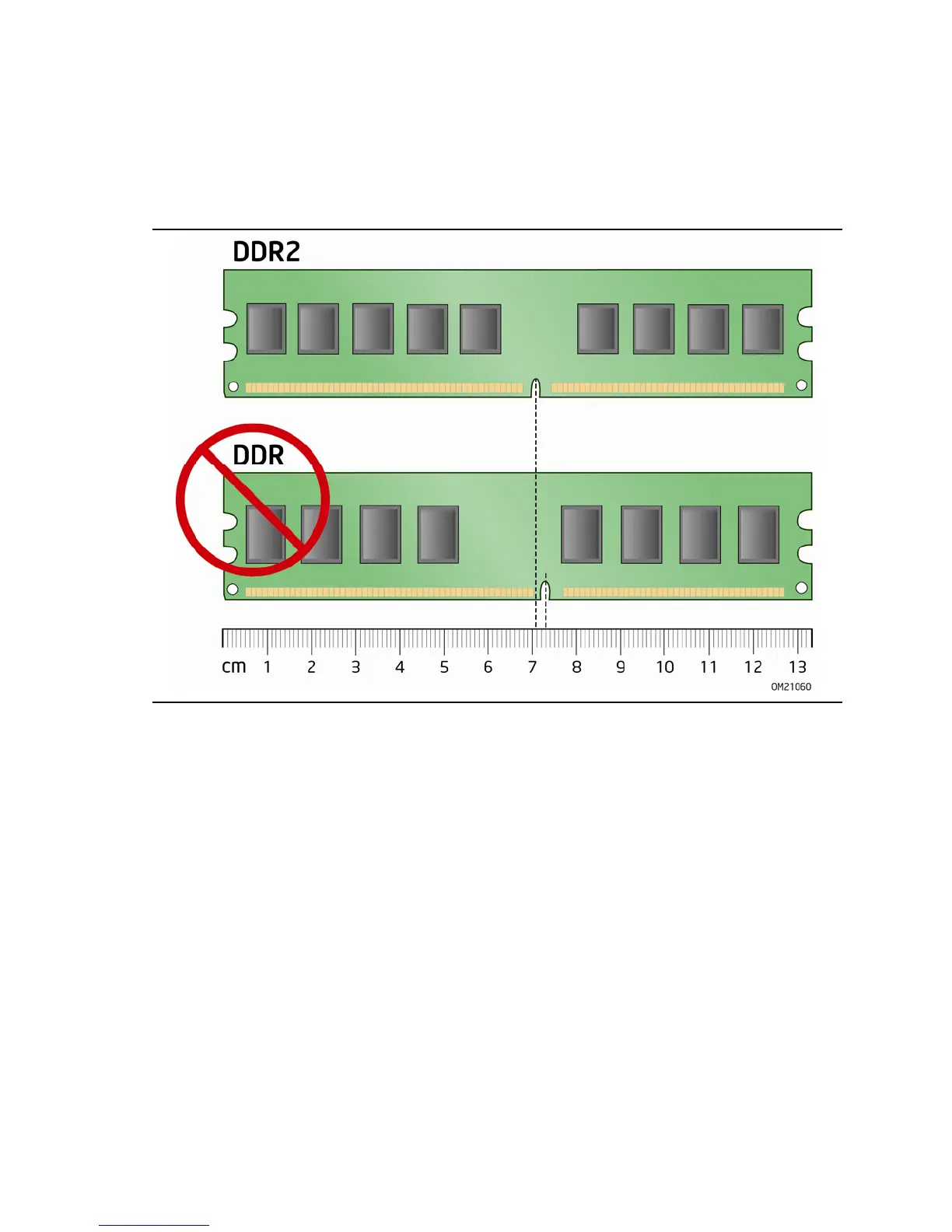

Figure 14. Use DDR2 DIMMs
