Intel Desktop Board DG43NB Product Guide
50
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
moving the jumper. Moving the jumper with the power on may result in unreliable
computer operation.

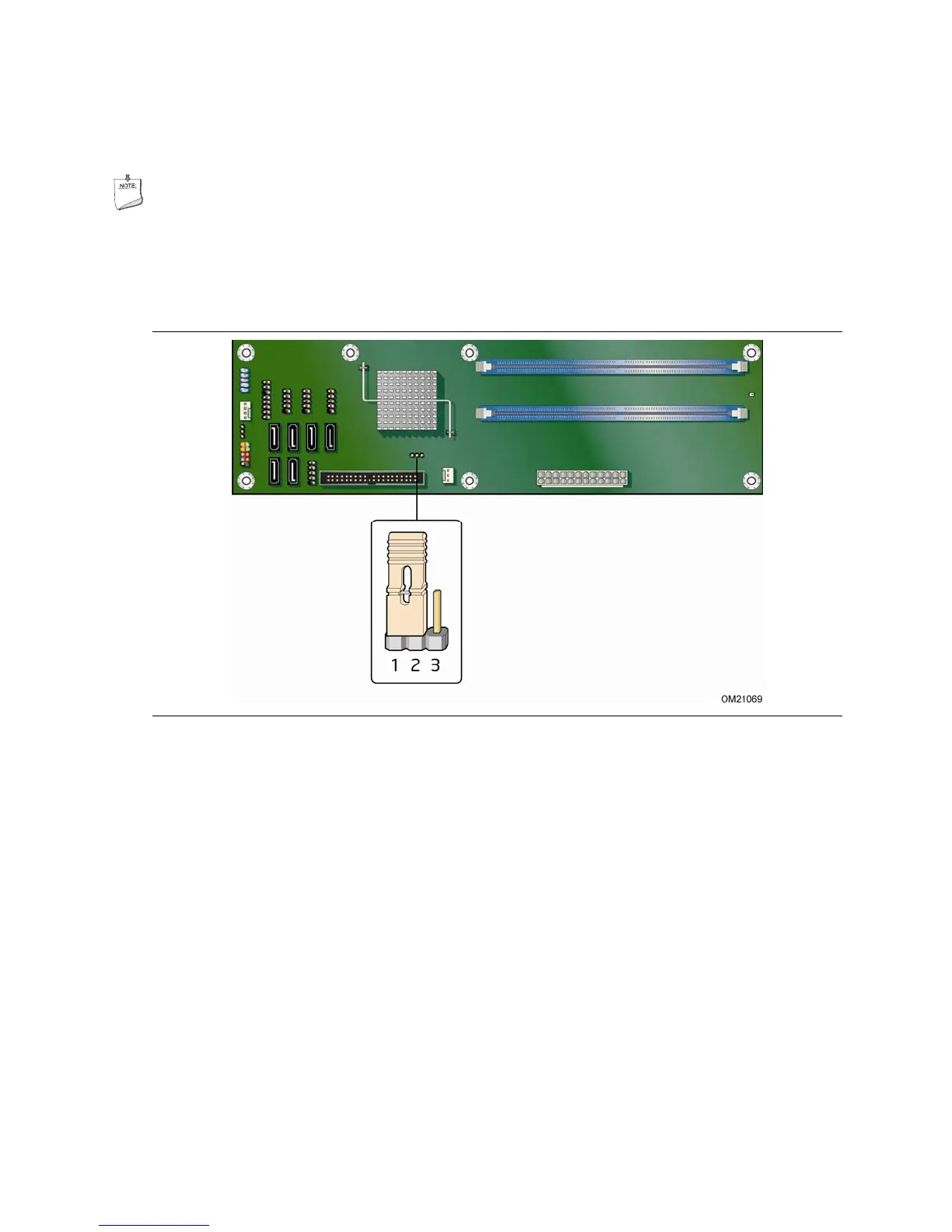

Figure 24 shows the location of the Desktop Board’s BIOS confi
gurati
on jumper block.
Figure 24. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configurations to be done in the
BIOS Setup program. Table 14 shows the jumper settings for
the BIOS Setup
program modes.
