Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect a
single SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in "Before You Begin" on page 25.
2. Attach one end the SATA cable to
one of the SATA connectors on the board
(Figure 19, A).
3. Attach the
other end of the SATA
cable to the SATA drive (Figure 19, B).

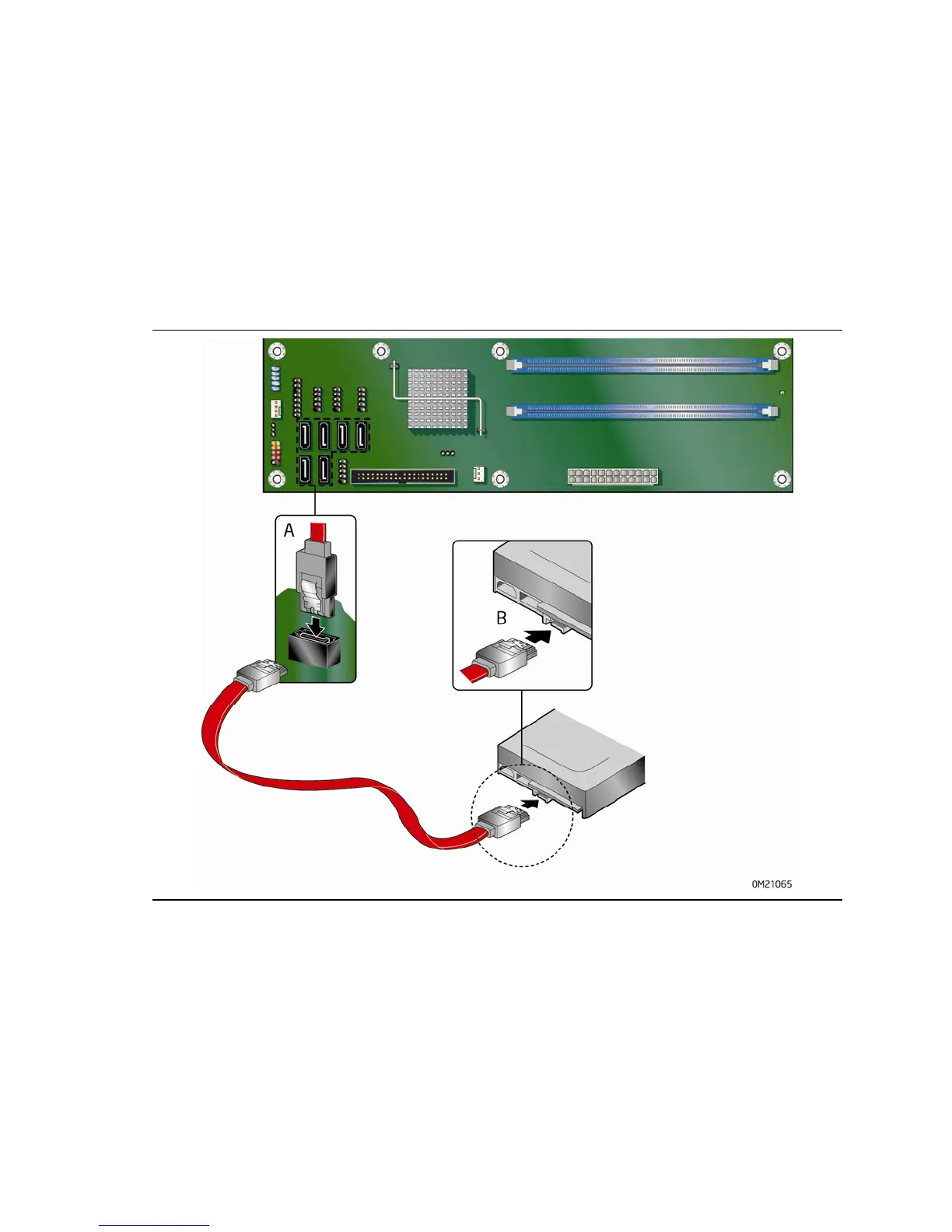

Figure 19. Connecting a Serial ATA Cable
