for third party solutions to monitor/control CEC activity between multiple HDMI
devices.
• 5 V Standby: can be used to monitor the presence of 5V Standby power or provide
power from the 5V Standby rail (up to 2A current rating).
• SCI/SMI GPI: input signal for direct connection to a front panel push-button to
trigger a Windows command. Intel will be adding BIOS support and accompanying
Windows utility to enable Direct Application Launch* feature. General information
about Direct Application Launch can be found at:
http://msdn.microsoft.com/en-us/windows/hardware/gg463078.aspx
2.3 I/O Shield
The I/O shield provided with the board allows access to all back panel connectors and

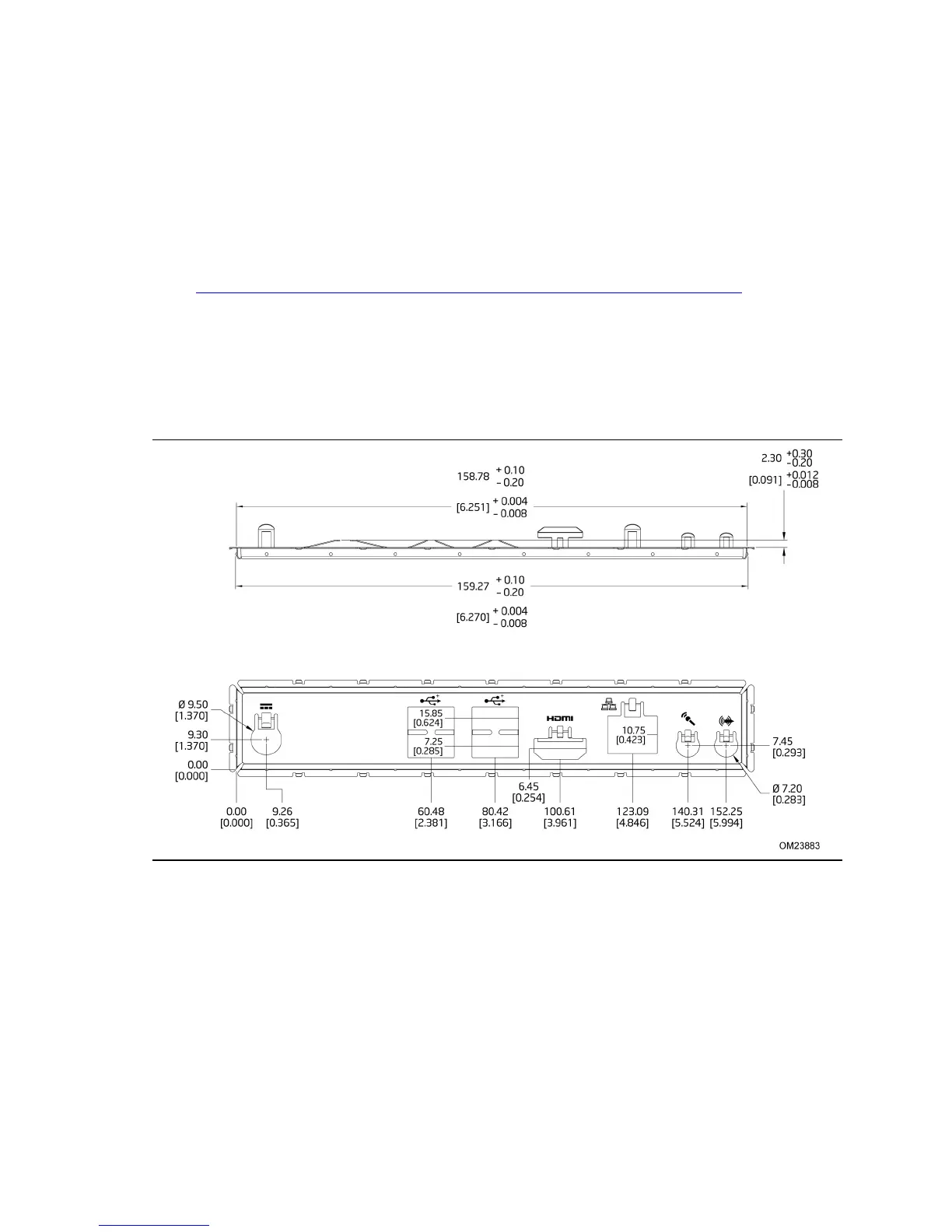

is compatible with standard microATX chassis. Figure 14 shows an I/O shield
reference diagram.
Figure 14. I/O Shield Reference Diagram
