INSTALLING THE ACU

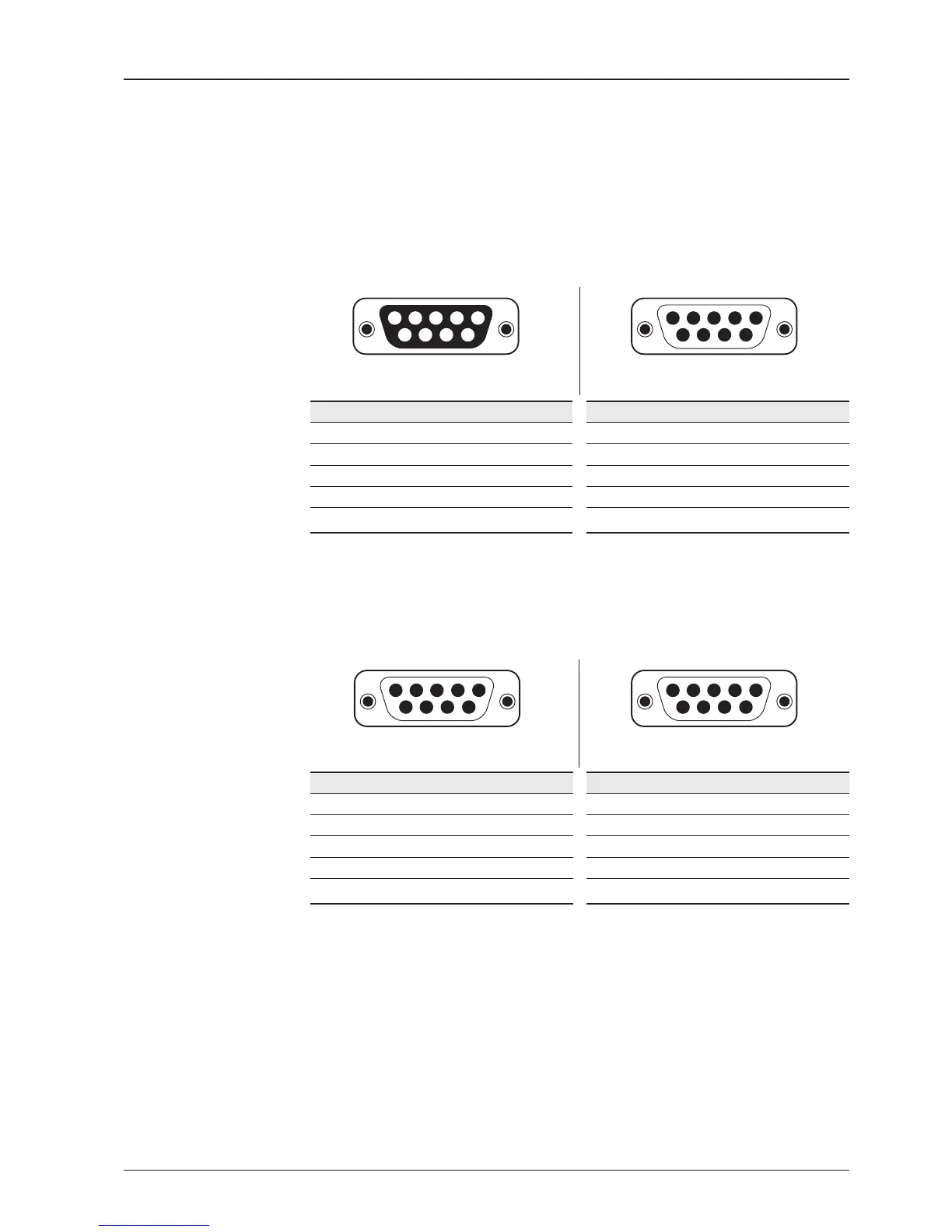

ACU Connector Guide
• Console Port
NOTE: NMEA GPS IN/OUT Sentence: GPGLL (4800 Baud, 8, N, 1)
12345
6789
54321
9876
12345
6789
54321
9876
12345
6789
54321
9876
Pin Signal Pin Signal
1 GND 6 GPS OUT -
2 GPS OUT + 7 Modem_SIGNAL_IN
3 Modem_LOCK 8 Modem_CTRL2
4 Modem_CTRL1 (TX MUTE) 9 GPS IN -
5 GPS IN +
ACU Console Port
D-Sub 9 pin Female
D-Sub 9 pin Male connector
Supplied Component
Pin Signal Pin Signal
1 - 6 -
2 RXD 7 -
3 TXD 8 -
4 - 9 -
5 GND
Pin Signal Pin Signal
1 - 6 -
2 RXD + 7 RXD -
3 TXD + 8 TXD -
4 - 9 -
5 GND
D-Sub 9 pin RS232
Connector
D-Sub 9 pin RS422
Connector
• RS232/422 Connector (Modem & BUC Interface)
