Appendix C Peripheral options and parts
This chapter describes how to select the options and parts of Goodrive20-EU series.
C.1 Peripheral wiring

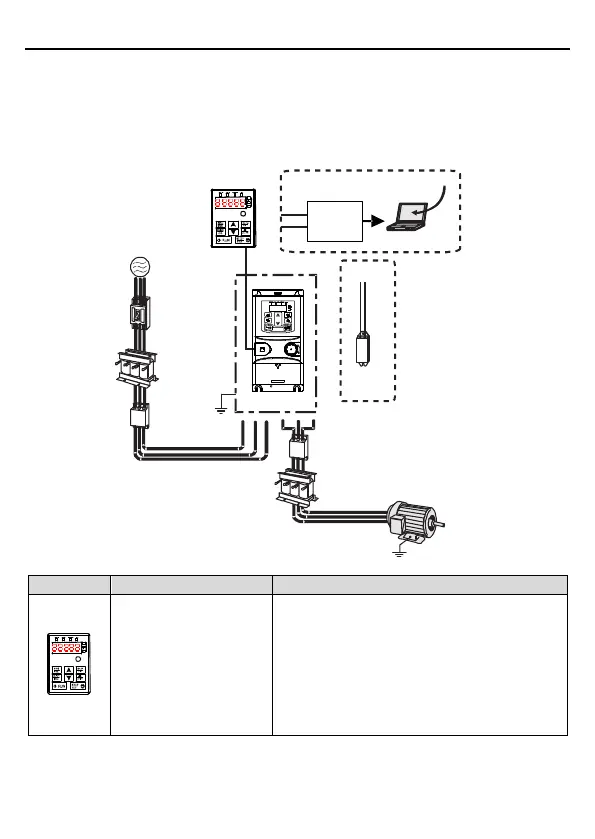

Below is the peripheral wiring of Goodrive20-EU series VFDs.
+
PB
RS485
RS232 to
485 +
485 -
External keypad
Optional
Power supply
Breaker
Input reactor
Input filter
Grounding
PC
Upper PC software
Braking resistor
Output filter
Output reactor
Motor
Grounding
Including the external keypads with and without
the function of parameter copying.
When the external keypad with the function of
parameter copying is valid, the local keypad is off;
when the external keypad without the function of
parameter copying is valid, the local and external
keypads are on at the same time.
