Goodrive20-EU series VFD Peripheral options and parts
158

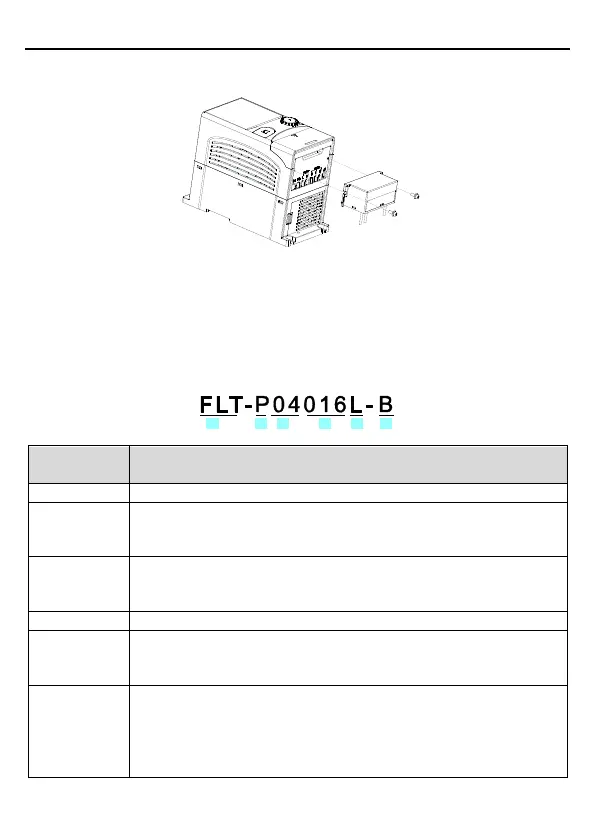

C.6.3 Installation instruction for C3 filter
The installation procedures for C3 filter are as below:
1. Connect the filter cable to the corresponding input terminal of the VFD according to the
label;
2. Fix the filter onto the VFD with M3*10 screws (as shown in above picture).
C.6.4 C2 Filter type instruction
BA C D E F
Character
designation
Detailed instruction
A
FLT: VFD filter series
B
Filter type
P: power supply filter
L: output filter
C
Voltage degree
S2: AC 1PH 200V– 240V
04: AC 3PH 380V – 480V
D
3 bit rated current code "016" means 16A
E
Installation type
L: Common type
H: High performance type
F
Utilization environment of the filters
A: the first environment (IEC61800-3:2004) category C1 (EN
61800-3:2004)
B: the first environment (IEC61800-3:2004) category C2 (EN
61800-3:2004)
