Goodrive20-EU series VFD Dimension drawings
143
Appendix B Dimension drawings
Dimension drawings of the Goodrive20-EU are shown below. The dimensions are given in
millimeters and inches.
B.1 External keypad structure

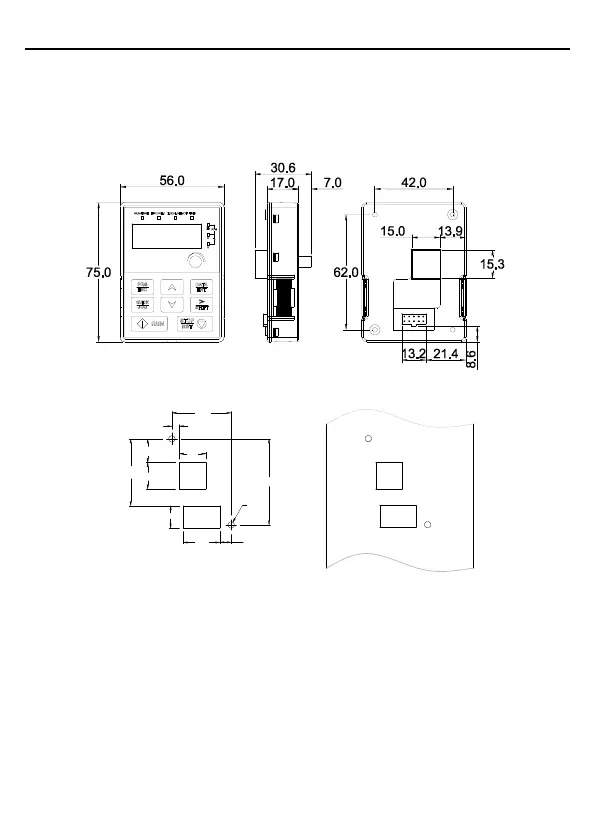

Figure B-1 Keypad dimensions
42.0
5.2
62.0
19.0
17.1
48.1
19.0
16.0
26.0
8.0
2-Ø4.5
Figure B-2 Dimensions of keypad installation without bracket
Note: The external keypad is optional for the VFDs (1PH 230V/3PH 400V ≤2.2kW and 3PH
230V ≤0.75kW); the standard keypad of VFDs (3PH 400V ≥4kW and 3PH 230V ≥1.5kW) can
be used as the external keypad.
The keypad can be installed on a bracket if it is used as an external one. Two kinds of
installation brackets are supported. The installation brackets are optional accessories. Figure
B-3 shows their outline and installation dimensions.
