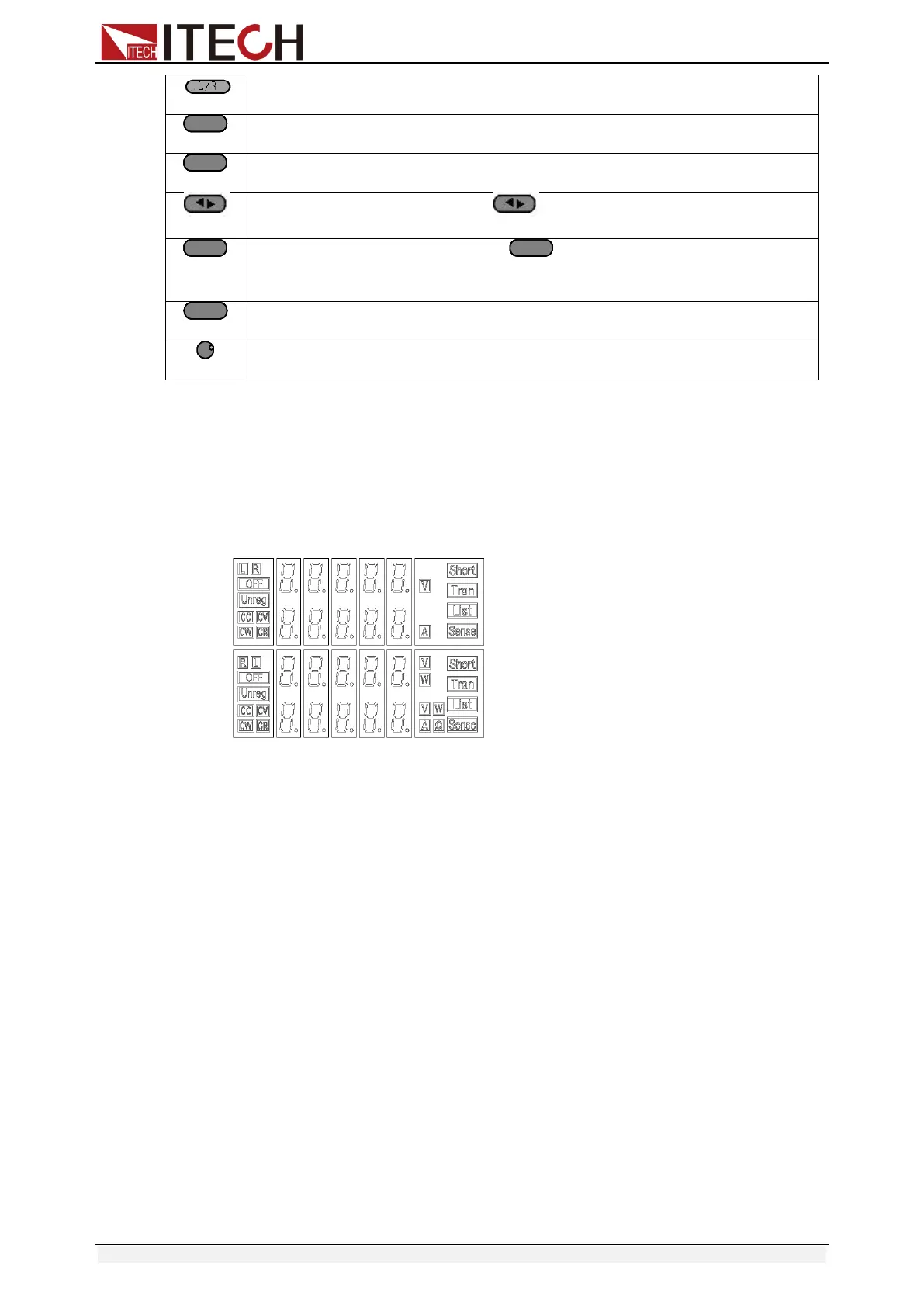

Panel function introduction

Switch the left/right channels.

Realize short testing, allows the load to simulate a short-circuit at the input

Switch work mode

Move the cursor position. Press key to move the cursor to the position

you want to edit, and then use the rotary knob to adjust value.

Select the transient mode, press key first to enable transient mode

before running A/B transient program, and then send trigger signal to run the

program

Control module’s input state: on/off

Rotary knob, used to change the setting parameter values

3. Module’s air inlet

4. Input terminal of module

3.3 VFD indicator function description

The detailed introduction of VFD’s all indicator functions are as bellow:

3-4 load module VFD panel

1. L/R is the indicator of dual channel module’s left/right channel, if you want

to edit left/right channel parameters, first select the cannel, L is the left

channel; R is the right channel. Single channel module will always display

2. OFF indicates that the module input is off, when enable the module input,

OFF will turn off.

3. CC, CV, CR and CW are module’s 4 work modes.

4. VFD display screen has 4 lines of number show, the first line shows the

current actual voltage value, the second line shows the actual current value,

the third line shows the actual circuit’s power value, the fourth line shows

the setup value, users can set A/V/Ω/W value.

5. Short is lit up, when the module enables short-circuit function.

6. TRAN is lit up, when the module enables transient mode.

7. LIST is lit up, when select the LIST mode at the configuration.

8. SENSE is enabled in remote meter function.

3.4 8-pin control connector

IT8700 electronic load 8-pin connector on rear panel（figure 3-5）：

ShortShort

ModeMode

TranTran

On/OffOn/Off
