▶ Turn off floor circuits in moist rooms (e.g. bathrooms and kitchens)
and use relay outputs PK2 in order to govern this ( Chapter 8.4).
7.9 Installation with solar heater (only solar model)
▶ Install solar panels ( panel manual).
▶ Insulate all connections and pipes.
▶ Install solar module ( solar module manual).
▶ Select Yes to the question Solar thermal sys installed during
commissioning ( Chapter 11.2).
▶ Make the necessary settings for the installed solar thermal system
( Chapter 12.6)
7.10 Installation with pool
▶ Install the pool ( instructions for the pool).
▶ Install the mixing valve for pool.
▶ Isolate all pipes and connections.
▶ Install the pool module ( instruction for the pool module). Please
observe that the hydraulic solution that is presented in that can not
be used.
▶ Set the mixing valve running time at commissioning ( Chapter
11.2).
▶ Make necessary settings for the pool heating ( Kapitel 12.5).

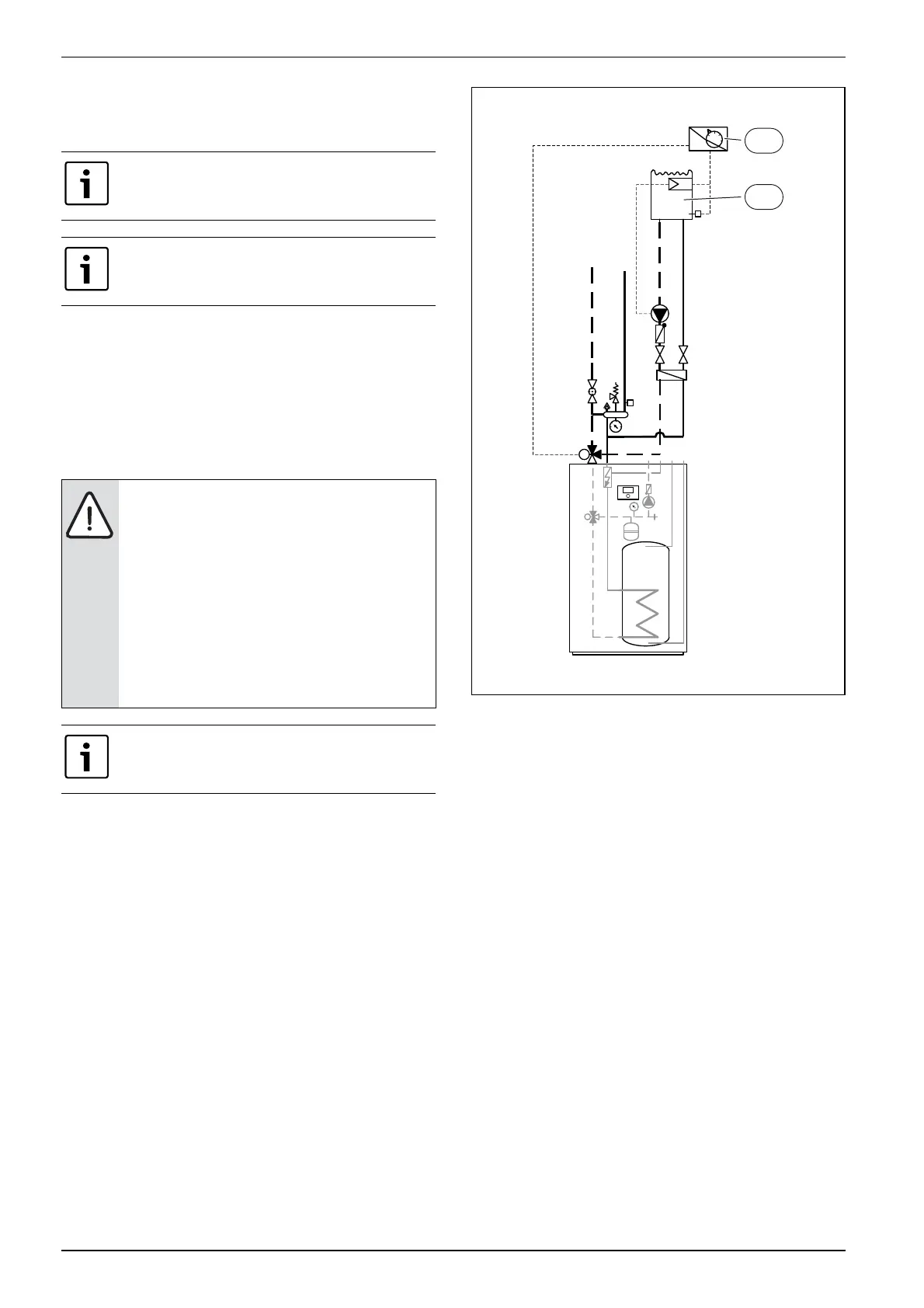

Fig. 12 Pool installation example
[1] Pool module
[2] Pool
[VC1] Pool mixing valve
[HS] Heating system
Using solar additional heating requires installation of a
solar module (accessory).
The solar energy coil in the cylinder is intended for
maximum added heating output of 4.5 kW. Only DHW
heating is possible with the integrated coil.
NOTICE: Risk of malfunction!
Cooling mode is not possible if the mixing valve for the
pool is placed in a wrong position in the system. Even
other functional disturbances might arise. The mixing
valve for the pool must not be positioned so that it can
block the safety valve on the flow line.
▶ Install the mixing valve for pool on the return pipe to
the heat pump module ( [VC1] Bild 12).
▶ Install the T-pipe on the flow line from the heat pump
module, before the bypass in the safety assembly.
▶ The pool mixing valve may not be installed as a
heating circuit.
Installation of a pool module (accessory) is demanded to
use pool heating.
