Service menu
AirModule 6 720 813 268(2014/10)
54

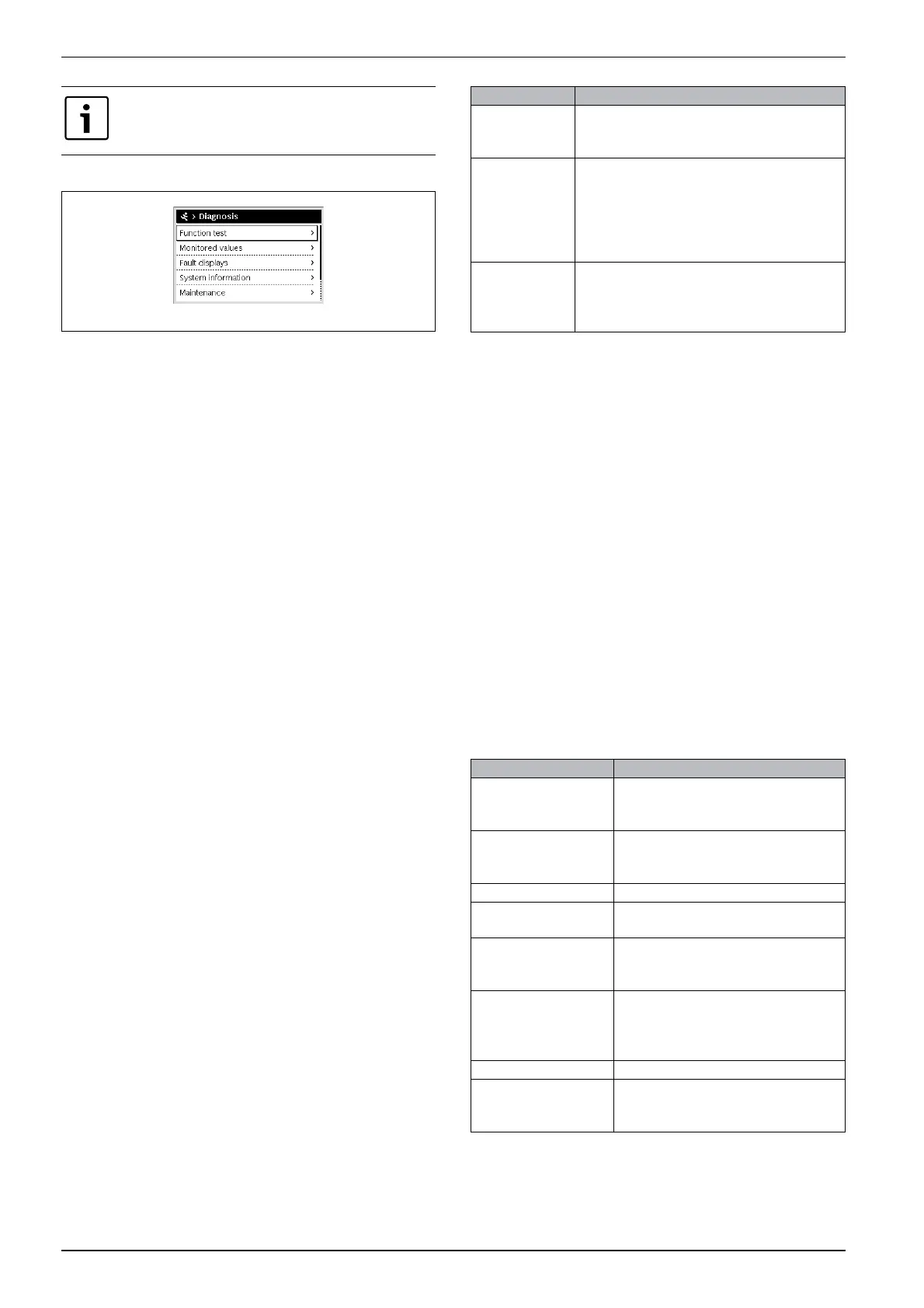

12.9 Diagnostics menu
Fig. 48 Diagnostics menu
The Diagnosis service menu contains a number of diagnostics tools.
Keep in mind that the installed system determines which items are
displayed.
12.9.1 Function test menu (manual mode)
Active components in the heating system can be tested with the help of
this menu. If Enable function tests is set to Yes in this menu, normal
heating mode for the entire system is shut off. All settings are saved. The
settings in this menu are only temporary and are reset to standard
settings as soon as Enable function tests is set to No or the Function
test menu is closed. The available functions and the possible settings
vary depending on the system installed.
A function test is performed, where the set values for specified
components are tested. You can check whether the mixing valve, pump
or 3-way valve respond appropriately by inspecting the behaviour of the
corresponding component.
E.g. test the DHW circulation pump:
• Off: Pump stops.
• On: Pump starts.
There is an automatic test sequence for the heat pump that tests by turns
the functions of the components of the heat pump. Activating Outdoor
unit test turns on and off the fan, the heating cable, the drip pan heater,
the 4-way valve and both expansion valves. Each component is active for
10 to 20 seconds.
The Evacuate/fill function activates a special operating mode for
evacuation/filling of the cooling circuit in the heat pump that is used if
the amount of refrigerants needs adjustments.
12.9.2 Monitored values menu
This menu contains the heat system settings and measured values. E.g.
the flow temperature or current DHW temperature is displayed.
Here, you can also find detailed information about system units, e.g. the
heat pump module temperature. The information and values that are
provided depend on the system that has been installed. The technical
information of accessory modules and other system units must be
observed.
12.9.3 Error messages menu
This menu displays current operating errors and error history.
Cancel blocking alarms
▶ Open menu Service menu > Diagnosis > Fault displays > Active
faults.
▶ Turn the selector until the blocking alarm is displayed.
▶ Push and hold the menu and info buttons until a pop-up window is
shown on the display.
▶ Select Yes in order to cancel the blocking.
Status log (Snapshot)
In order to get more information about taking care of errors that occur:
▶ Open the Service menu > Diagnosis > Fault displays > Heat
source alarm history menu.
▶ Turn the selector until the desired error is displayed.
▶ Push and hold the info button until a list is displayed with the data
registered when the selected error occurred.
▶ Turn the selector to call up additional data in the list.
12.9.4 System information menu
The software versions of installed BUS units in the system are displayed
in this menu.
12.9.5 Reset menu (Reset)
Settings or lists can be erased in this menu or reset to standard settings.
Remember not to set the time for at least one hour after
Thermal disinfection. The functions may otherwise
interfere with each other.
6 720 811 136-505.1O
Menu Item Description
Active faults All the current operating errors are displayed here, by
order of severity. Here you can unlock blocking errors
( Cancel blocking alarms, page 54).
System alarm
history
The last 20 operating errors for the entire system are
displayed here, sorted by date of occurrence. A
snapshot of the relevant installation data when the error
occurred exists for each stored error ( Status log
(Snapshot), page 54). Error history can be erased in the
Reset menu ( Chapter 12.9.5, page 54).
Heat source alarm
history
The last 20 operating errors for the heat pump are
displayed here, sorted by date of occurrence. Error
history can be erased in the Reset menu
( Chapter 12.9.5, page 54).
Table 38 Information in the error messages menu
Menu Item Description
Fault history Error history is erased. If an operating error
occurs right now, it will be displayed in the error
history again.
Heat pump fault history Heat pump error history is erased. If an
operating error occurs right now, it will be
displayed in the error history again.
Service displays Service messages are reset.
Heating circuits time prog All time programs for all heating circuits are
reset to standard settings.
Time prog. DHW All time programs in the DHW system (including
the circulation pump time program) are reset to
standard settings.
Solar thermal system All settings that include the solar heating system
are reset to standard settings.
The solar heating system must be
recommissioned after this reset!
Hours run The heat pump hours run counter is reset.
Default setting All settings are reset to standard settings.
The system must be recommissioned after this
reset!
Table 39 Reset settings
