Overview of the most common functions
AirX, AirModule E 9/15, Airbox E/S – 6 720 810 266 (2014/10)
6
4 Overview of the most common functions

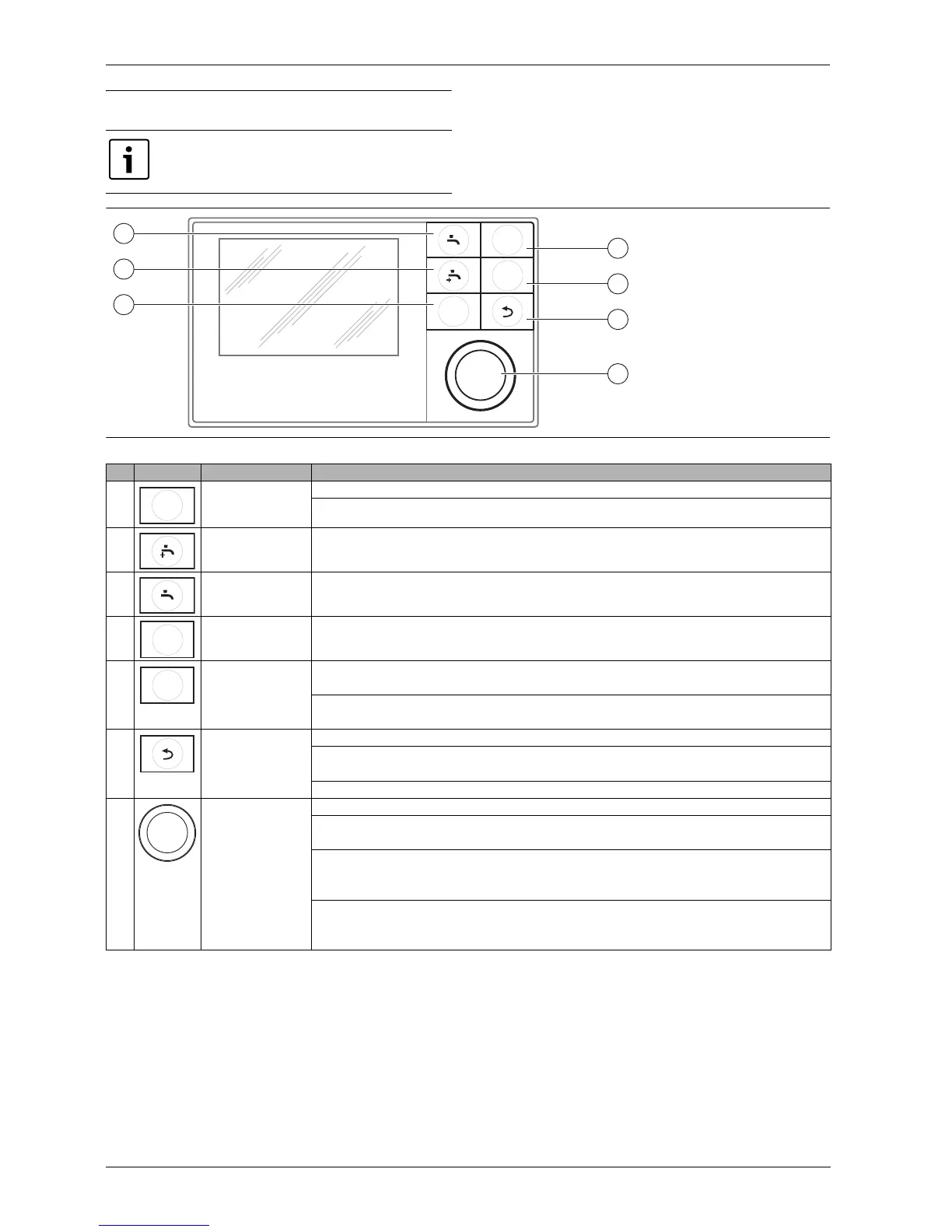

Fig. 4 Keys
In the user interface operating instructions you will find a
complete description of all functions and settings.
Pos. Key Designation Explanation
1 Favourites key ▶ Press this key to show favourite functions for heating circuit 1.
▶ Keep this key pressed down to change Favourites menu settings.
2 Extra DHW key ▶ Press this key to activate the extra DHW function.
3 DHW key ▶ Press this key to select DHW mode.
4 Menu key ▶ Press this key to enter the main menu.
5 Info key When a menu is shown:
▶ Press this key for more information about the selected menu option.
When standard display is active:
▶ Press this key to enter the information menu.
6 Return key ▶ Press this key to return to the previous menu or to cancel changes.
For maintenance or when an error has been detected:
▶ Press this key to switch between standard display and error message.
▶ Keep this key pressed down to switch between a menu and the standard display.
7 Selector ▶ Turn the selector to change a set value (e.g. the temperature) or to select a menu or menu option.
When the display is off:
▶ Press the selector to turn on the display.
When the display is on:
▶ Press the selector to open a selected menu or menu option, or confirm a set value (e.g. temperature) or a message, or
to close a pop-up window.
When standard display is active:
▶ Press the selector to activate the input window for heating circuit options in the standard display (only valid for
installations with at least two heating circuits).
Table 2 Keys
