Jacobsen AR3 Safety, Operation & Maintenance Manual

en-15
JACOBSEN AR3
SAFETY, OPERATORS & MAINTENANCE MANUAL

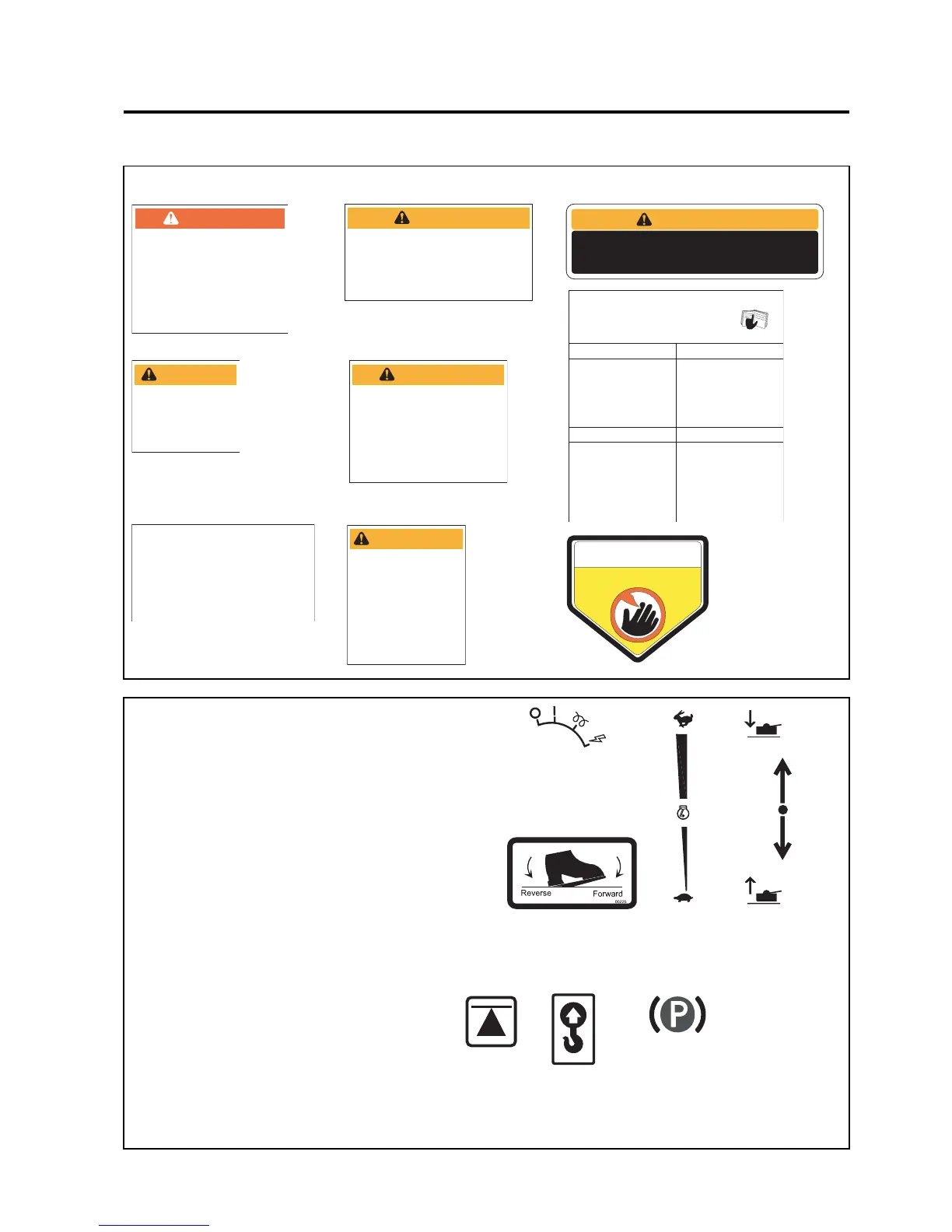

5.3 SAFETY DECALS USA
5.4 INSTRUCTION DECALS USA
A. Ignition Switch
B. Throttle Control
C. Cutting Unit Lift
D. Fwd/Rev Traction Pedal
E. Weight Transfer
F. Parking Brake
G. Jacking Point
H. Slinging Point
Description
D
B
C
5 DECALS
A
E
TC
F
G
H
ADVERTENCIA
Leer el manual del operador. No permitir que
personas no capacitadas para ello usen la
maquina.
Mantener los protectores en su lugar y sus
tornillos debidamente fijados.
Antes de limpiar, ajustar o reparar este
equipo, desengranar todas los mandos, aplicar
el freno de estacionamiento y apagar el motor.
Mantener las manos, los pies y la ropa
alejados de las piezas en movimiento.
No conducir como pasajero ni llevar pasajeros
en máquinas sin asiento para ello.
Mantener a las demás personas alejadas
durante el funcionamiento de la máquina.
Si no sabe leer inglés, solictarle a otra persona
que le lea y explique el contenido de las
etiquetas y del manual de le maquina.
1.
2.
3.
4.
5.
6.
7.
340830
WARNING
Read operator’s manual. Do not allow
untrained operators to use machine.
Keep shields in place and hardware
securely fastened.
Before you clean, adjust or repair this
equipment, disengage all drives, engage
parking brake and stop engine.
Keep hands, feet and clothing away
from moving parts.
Never carry passengers.
Keep bystanders away.
1.
2.
3.
4.
5.
6.
361854
WARNING
To prevent serious injury
never disconnect or tamper
with the seat switch.
Read manual for more information.
365339
WARNING
TO PREVENT POSSIBLE INJURY TO YOU OR OTHERS,
DO NOT OPERATE THIS UNIT WITH GUARD REMOVED
521720
DANGER
Always connect the black ground (-)
cable last and remove it first.
Keep sparks and flames away, and
avoid contact with acid.
Connect positive (+) terminal to
positive (+) terminal.
Connect negative (-) terminal on good
battery to frame of vehicle that
has dead battery.
To avoid injury when working with battery
1.
2.
To avoid injury when jumping battery
1.
2.
3001435
IMPORTANT
This machine uses GreensCare 68,
a biodegradable hydraulic fluid.
(Order 5003103 for 5 gal. pail)
Use of 10W30 is an approved
alternate fluid.
Use will compromise all
biodegradable properties of
GreensCare 68 hydraulic fluid.
4108880
1.
2.
3.
4.
5.
6.
7.
Parking Brake..............On
Traction Pedal......Neutral
Mower Switch..............Off
Throttle.......................Half
Ignition.........................On
Glow Plug Light..........Off
Ignition.....................Start
1.
2.
3.
4.
5.
6.
Traction Pedal......Neutral
Mower Switch..............Off
Parking Brake..............On
Throttle.....................Slow
Ignition........................Off
Remove Key
1.
2.
3.
4.
5.
6.
Follow “To Start”
instructions
Mower Switch..............Off
Cutting Units...........Raise
Parking Brake.............Off
Throttle......................Fast
Slowly depress
traction pedal
1.
2.
3.
4.
5.
6.
Follow “To Start”
instructions
Throttle......................Fast
Mower Switch...........Mow
Parking Brake.............Off
Cutting Units.........Lower
Slowly depress
traction pedal
4124445
To Drive / Transport
To Start
To Mow
To Stop / Park
READ MANUAL BEFORE OPERATING
REPLACEMENT MANUAL AVAILABLE FROM:
JACOBSEN TEXTRON - CHARLOTTE, NC
OPERATION
WARNING
Fit roll over protective
structure before using
this machine on slopes
greater than 10°.
Do not use on slopes
greater than 15°.
Keep bystanders away
•
•
•
4139680
KEEP HANDS AND FEET AWAY
DANGER
DANGER
835892
