JACOBSEN AR3
SAFETY, OPERATORS & MAINTENANCE MANUAL

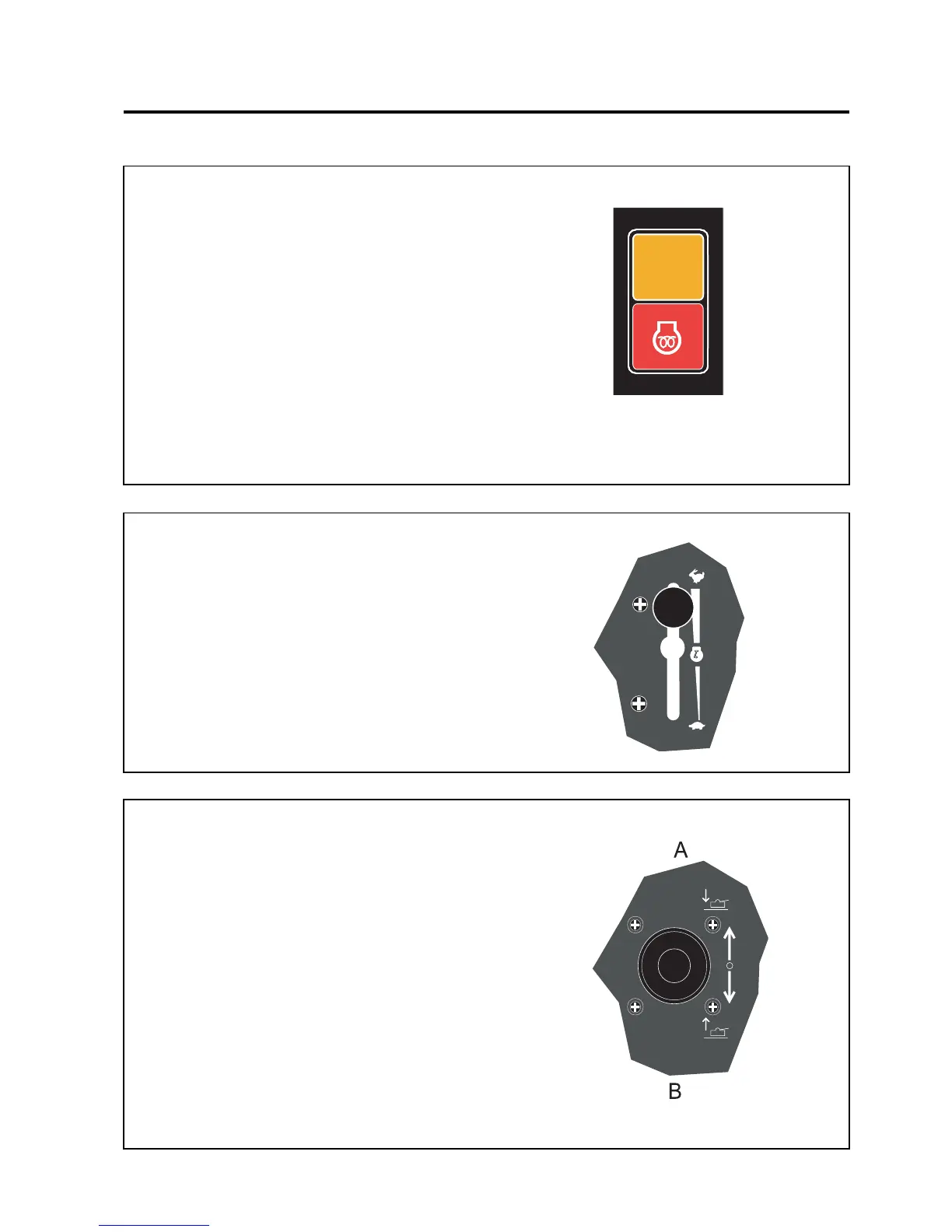

6.1M THROTTLE CONTROL LEVER
The lever should be moved away from the operator
to increase the engine speed and towards the
operator to decrease the engine speed.
NOTE: Engine should be used at full speed.
6.1N JOYSTICK UNIT LIFT/LOWER CONTROL
The joystick can be operated in 2 directions (single
Axis) A, B.
A One touch lower. Lower all cutting units.
B Raise all cutting units.
(Needs to be held at position B for lifting
units into transport position)
6 CONTROLS
6.1L ENGINE PREHEAT INDICATOR LAMP
Colour red, on when the ignition switch is turned
clockwise to the pre-heat position. Once the lamp
goes out the engine can be started.
6.1K SAFETY MODULE MALFUNCTION
Colour orange, on when the safety module
malfunctions. Stop machine and turn off ignition
leave for a few seconds and switch ignition back on.
If the indicator lamp is still on, contact your Dealer.
