en-56

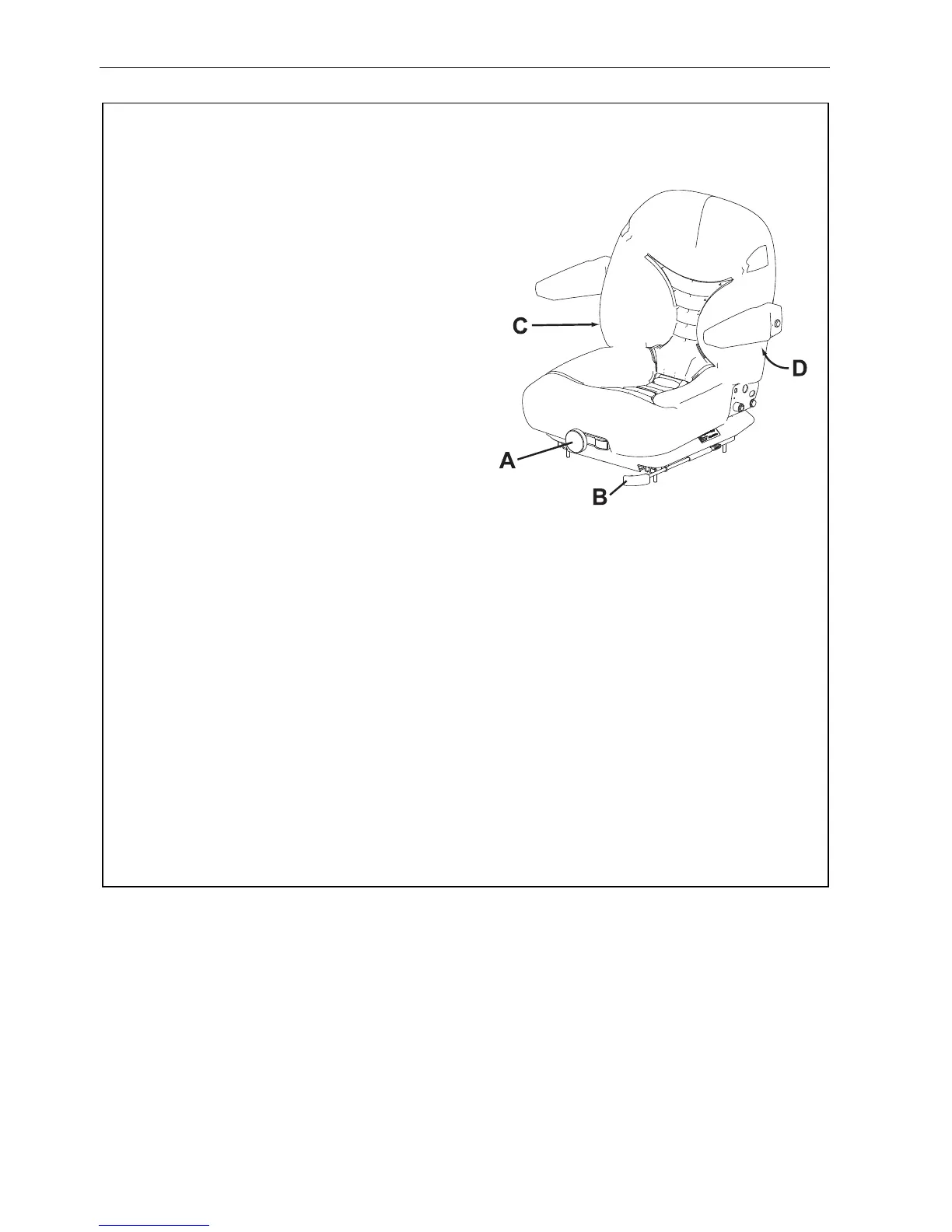

9.8 SEAT (Michigan V5300)
The seat can be adjusted for operator's weight and
leg reach to provide a comfortable position for
operating the machine.
A. ADJUSTMENT FOR OPERATOR WEIGHT
To Adjust:
Whilst standing in front of the machine, rotate knob
(A) clockwise or anticlockwise to move the red
indicator to the approximate operator weight.
B. FORE AND AFT ADJUSTMENT
To Adjust:
The position of the adjusting lever is on the left hand
side of the seat below the seat cushion (B). By moving
the lever upwards, the seat can be slid backwards
and forwards. When in the desired position release
the lever to locate in one of the pre set positions.
C. BACK REST ADJUSTMENT
To Adjust:
Rotate the adjuster (C) clockwise or anticlockwise
until a comfortable position is achieved.
D. ARM REST ADJUSTMENT
To Adjust:
Raise the arm rest to the vertical position and rotate
the adjustable stop to achieve a comfortable position.
NOTE: The seat is fitted with a microswitch to sense
operator presence.
When the machine is fitted with a OPS frame or cab
a lap belt is fitted and should be worn at all times
9 ADJUSTMENTS
