14/18

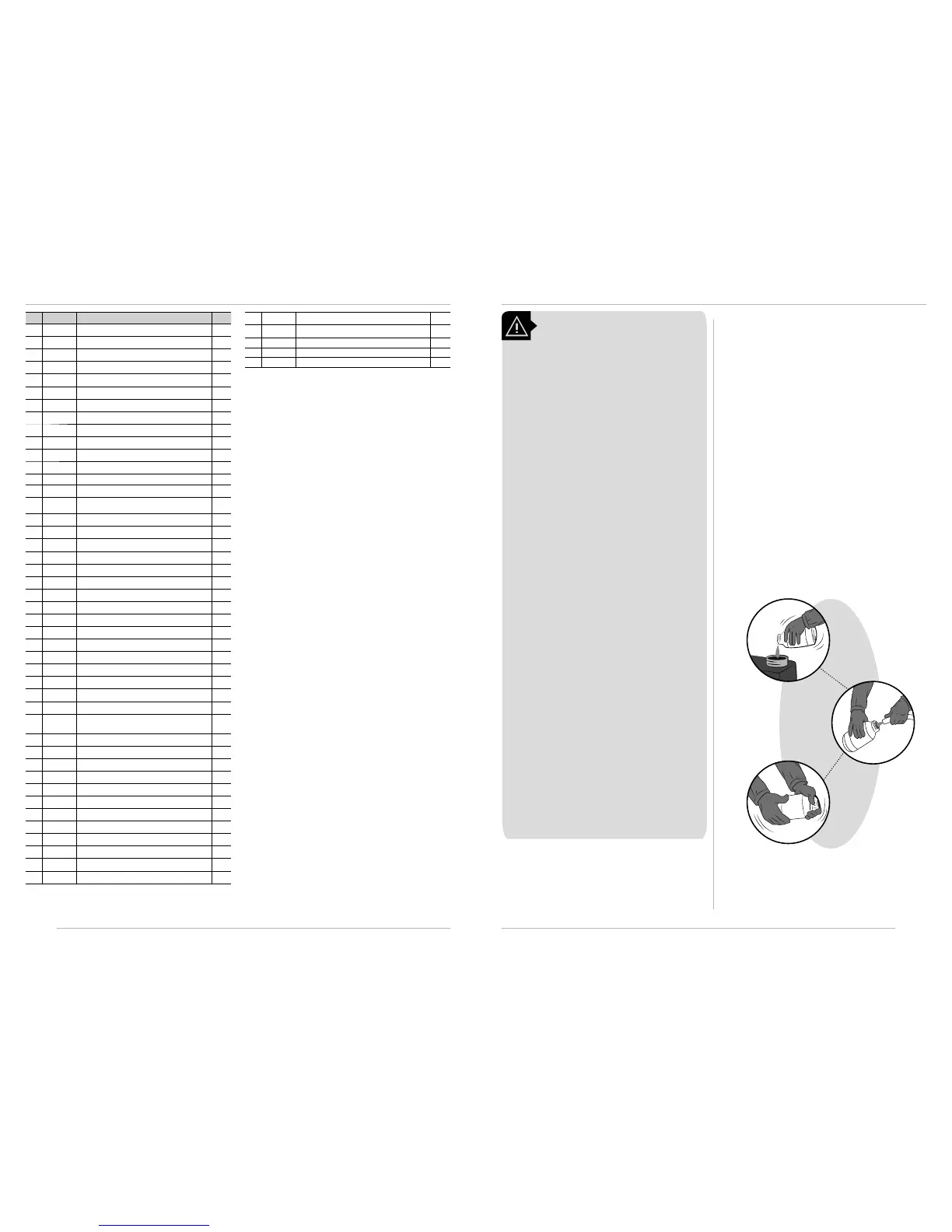

Nº Code Description Qty.
1 4739 LID WITH DIAPHRAGM (ORANGE) 1
2 560573 LID DIAPHRAGM (NITRILICA) 1
3 942920 TANK STRAINER 1
4 1220618 COMPLETE BELT WITH TRANSPORT HANDLE 1
5 635672 BUCKLE HD 2
6 1220619 TANK 20L 1
6a 1223765 TANK 16L 1
7 1220981 COMPLETE HOSE FOR LP605 AND LP601 1
8 908889 TRIGGER VALVE LP 601 1
9 530626 LANCE 600 WITH TRIGGER LP601 1
10 1168397 BASE LOCK 1
11 1220977 AGITATOR ASSEMBLY 1
12 1220629 O-RING OR1-11 3
13 1223766 AGITATOR SEAL 1
14 1220622
FLANGE HEAD SCREW PHILLIPS SLOT 5 X
12 MM
10
15 1220623 ELECTRIC PANEL JEP 2016 1
16 1220624 RUBBER FEET KIT (QTY. 4) 1
17 1220625 HOSE KIT 1
18 1220925 CLAMP D 12-14 STAINLESS STEEL 11
19 1220628 BATTERY JB 1660 1
20 1220631 SWIVEL CONNECTOR 3/8 3
21 1220632 PJB PUMP FILTER KIT 1
22 1220634 INLINE FILTER 1
23 1220934 O-RING 20.34 1.78 NITR 70 OR1-19 1
24 1168544 FILTER COVER CAP AND O-RING 1
25 1220635 HOSE CONNECTOR 1
26 1220636 CONNECTOR NUT 1
27 1220979 AGITATOR LEVER AND NEEDLE ASSEMBLY 1
28 1220638 AGITATOR VALVE BODY 1
29 1220639 PUMP JP 0402X 1
30 1220640 BASE COVER 1
31 1220947
PAN HEAD SCREW PHILLIPS SLOT M
5X0,8X12
1
32 1220641 BASE PJB 1
33 1223798 CHARGER JBC 1
34 105247 TRIGGER VALVE LEVER 1
35 996058 TRIGGER VALVE CAP 1
36 909192 TRIGGER VALVE HANDLE 1
37 105239 TRIGGER VALVE NEEDLE 1
38 920470 PINCH COCK 1
39 909283 TRIGGER VALVE BODY LP 601 1
40 915744 SCREW CAP 2
41 560649 ELBOW WITH CONE PACKING 11/16 1
42 100131 EXTENSION 1
43 592139 FILTER M50/60 1
44 217174 JD 12 NOZZLE 1
45 909309 CONE PACKING 1
46 1220983 O-RING 10.83x1.78 NITR. 70 OR1-13 1
47 229724 NOZZLE CAP 1
48 1223850 MAINTENANCE KEY PJB 1
7/18
WARNING!
• DO NOT use the sprayer for purposes
other than spraying agricultural defen-
sives approved by competent authorities
.
Always consider the following recommen-
dations:
• Check sprayer before spraying.
Ensure
there is no leakage or missing parts. Do not
use sprayer if it is not in good condition.
• Do not eat, drink or smoke while spraying.
Serious risk of poisoning.
• Do not mix chemical products, unless
recommended by manufacturer.
Intense
chemical reactions can occur.
• Read the label of chemical products
carefully.
Always follow manufacturer’s
recommendations.
• High pressure present at end of nozzle
and inside sprayer base.
Turn-off the
sprayer completely and release pressure
before attempting to repair or replace parts
of the sprayer.
• Do not direct spray towards bystanders.
Spray may be toxic.
• After the use of herbicides always clean
the equipment before using other for-
mulations.
• Wear individual protection equipment.
Wear gloves, safety glasses, safety mask and
protective clothing.
• Clean yourself after spraying.
Take a
shower with plenty of soap and water. Put
on clean clothes.
• The clothing used during spray applica-
tion must be washed separate from other
clothes of ordinary use.
• Keep chemical products out of reach of
children and animals.
Lock up the chemical
products to prevent untrained persons from
handling them.
• In case of intoxication, see a doctor
immediately.
Show him/her the chemicals
manufacturer’s label.
• Dispose of chemical containers properly.
Observe your local regulatory agency rec-
ommendations and follow manufacturer’s
disposal instructions.
• Do not pollute the environment.
• During the transport in vehicles, the
sprayer must be turned o and secured.
Always keep the trigger valve shut during
transport and when not using the sprayer.
vironment. In the case of metal, plastic and glass chemical con-
tainers, each container must be rinsed three times to ensure the
residues are completely removed. This manual describes how to
make the triple rinse in a correct, safe and e ective way.
1. Immediately after emptying the container, you must keep
it with the opening upside down over the sprayer tank
opening or over the bucket that you are using to prepare
the chemical mixture for at least 30 seconds, until no res-
idue is left in the container, when the drops are falling in
long intervals.
2. Hold the container in the upright position and ll it with
water up to 1/4. For example: in a 1000 ml container, put
250 ml of water.
3. Install the container cap and tighten it enough to avoid
leakage during the agitation.
4. Agitate the container strongly in all ways (horizontal and
vertical), for approximately 30 seconds to remove the resi-
dues that are on the container internal walls.
5. Take the container cap o and carefully pour the rinse wa-
ter into the spray tank.
6. Keep holding the container over the spray tank opening
for approximately 30 seconds to the last drop.
7. Repeat this operation twice more. This way, you complete
the triple rinse.
8. Make the plastic and metallic containers useless by pierc-
ing the container bottom with a pointed instrument. This
way, their labels are not damaged for identi cation pur-
poses.
7.1. Triple rinse of empty agrochemicals
containers
NOTE: Even the containers considered empty contain chemical
residues. Therefore, discarding the containers without washing
out the residues is extremely dangerous to man, animals and en-
