B. Physical considerations:
High-frequency components should be mounted as
shown in Figure 8.

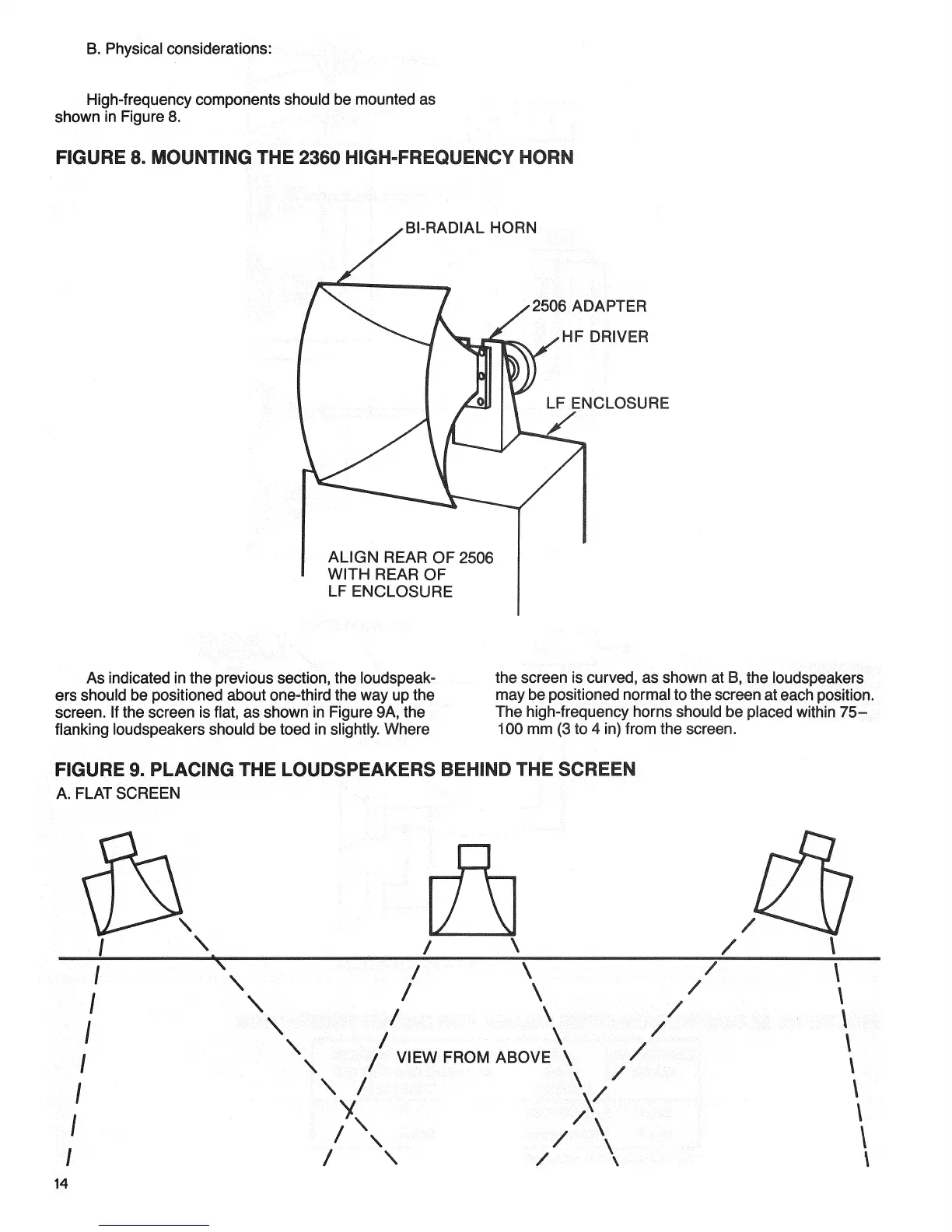

FIGURE 8. MOUNTING THE 2360 HIGH-FREQUENCY HORN
BI-RADIAL HORN
LF ENCLOSURE
ALIGN REAR OF 2506
WITH REAR OF
LFENCLOSURE
As indicated in the previous section, the loudspeak-
ers should be positioned about one-third the way up the
screen.
If the screen is flat, as shown in Figure 9A, the
flanking loudspeakers should be toed in slightly. Where
the screen is curved, as shown at B, the loudspeakers
may be positioned normal to the screen at each position.
The high-frequency horns should be placed within 75-
100 mm (3 to 4 in) from the screen.
FIGURE 9. PLACING THE LOUDSPEAKERS BEHIND THE SCREEN
A. FLAT SCREEN
14
2506 ADAPTER
HF DRIVER
VIEW FROM ABOVE
