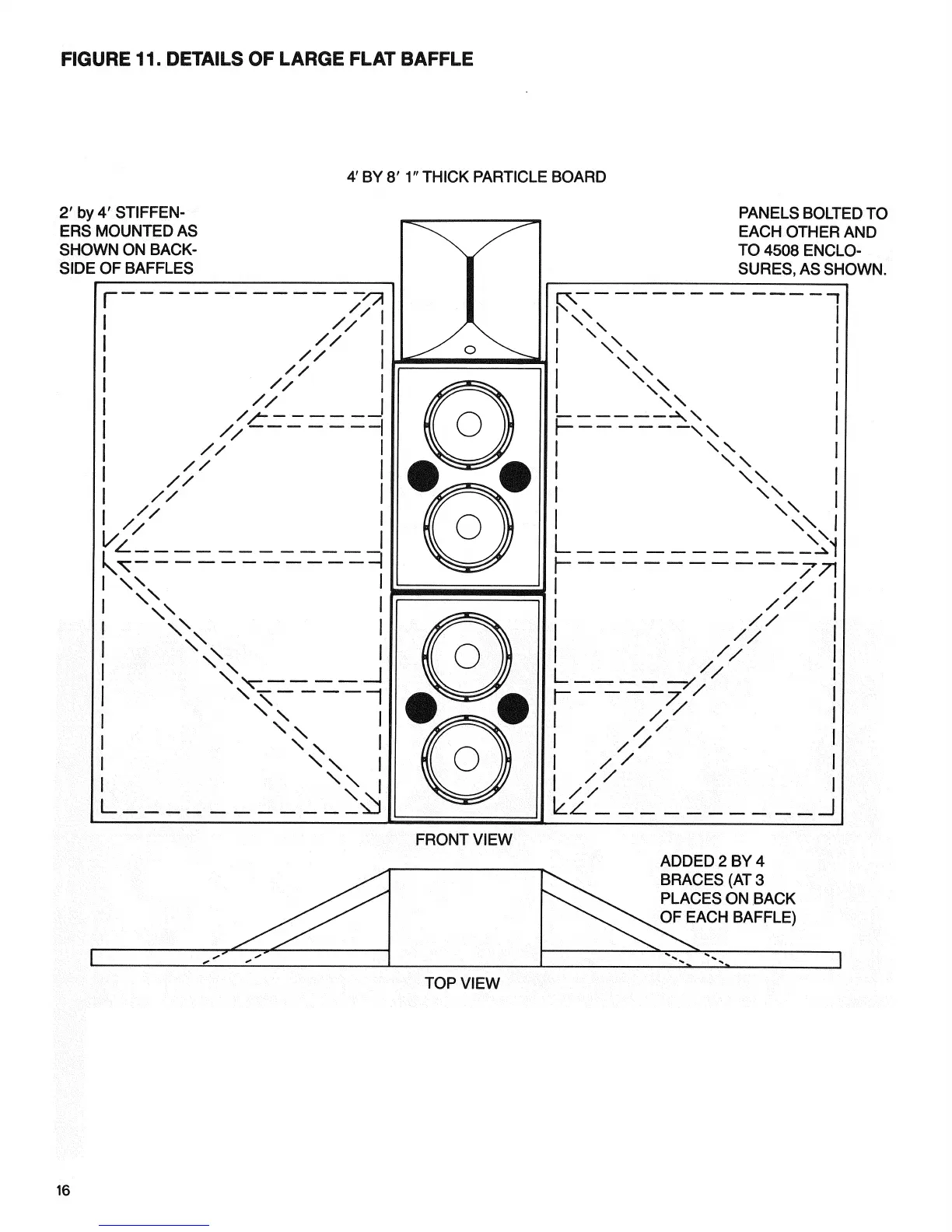

FIGURE
11.
DETAILS OF LARGE FLAT BAFFLE
4'
BY 8' 1" THICK PARTICLE BOARD
2'
by 4' STIFFEN-
ERS MOUNTED AS
SHOWN ON BACK-
SIDE OF BAFFLES
PANELS BOLTED TO
EACH OTHER AND
TO 4508 ENCLO-
SURES,
AS SHOWN.
16
FRONT VIEW
TOP VIEW
ADDED 2 BY 4
BRACES (AT 3
PLACES ON BACK
OF EACH BAFFLE)
