JBL Cinema BD300 User Manual

11
www.jbl.com
English

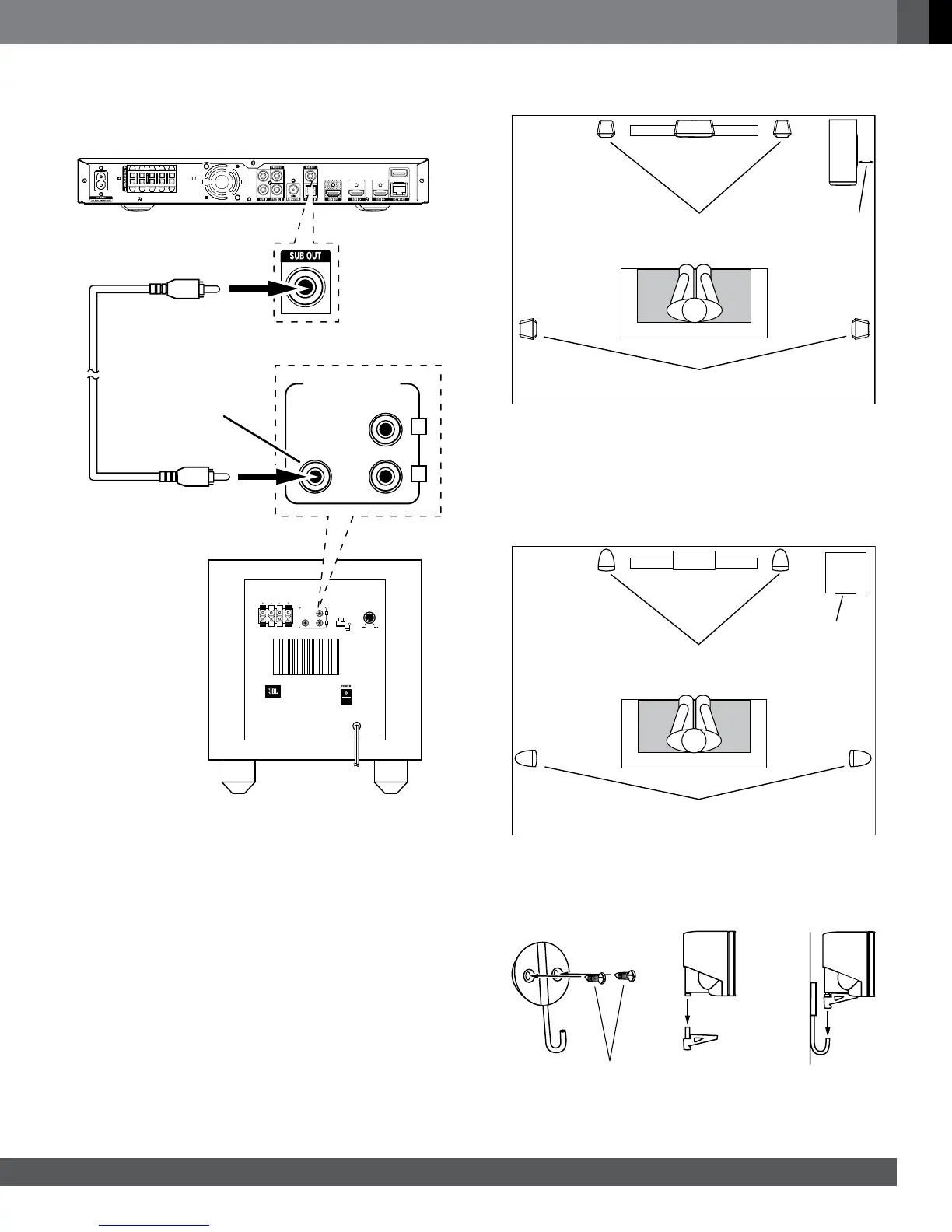

CONNECT THE POWERED SUBWOOFER (BD300 ONLY)
Use the supplied subwoofer LFE cable to connect the BD300 receiver’s
Subwoofer Output connector to the powered subwoofer’s LFE input.
SUB145
SPEAKER LEVEL
LINE LEVEL IN
LR
SUBWOOFER
LEVEL
AUTO ON
GREEN: ON
RED: STANDBY
IN
OUT
L
R
LFE
LINE LEVEL IN
L
R
LFE
Subwoofer
Connect to
LFE Connector
LFE Cable
(supplied)
BD300 Receiver
PLACING THE SPEAKERS: CINEMA BD100 SYSTEM
Place center speaker
above or below
center of TV
Place left & right speakers
on either side of TV
Place subwoofer
with speaker
4" – 6"
(100mm – 160mm)
away from wall
Place left & right surround speakers to
sides of or slightly behind listeners
TV
• You can mount the left, right, center and surround speakers on the wall
using picture-hanger hardware.
• Placing the subwoofer with its speaker 4" – 6" (100mm – 160mm) from
a wall maximizes bass performance and helps protect the exposed
speaker unit from accidental damage.
PLACING THE SPEAKERS: CINEMA BD300 SYSTEM
Place center speaker
above or below
center of TV
Place left & right speakers
on either side of TV
Place subwoofer
in a corner, with
the port opening
facing the room
Place left & right surround speakers
to sides of or slightly behind listeners
TV
• Placing the subwoofer in a corner will maximize its bass performance.
• You can mount the satellite (left, right, surround) speakers on the wall
using the supplied wall-mount brackets.
1. 2. 3.
Hardware must be appropriate for
wall material and construction
Refer to the instruction manual included in the speaker box for more
information about using the supplied wall-mount brackets.

JBL Cinema BD300 Specifications

Frequency and Modulation

frequency range	2402MHz ~ 2480MHz
transmitter power	8dBm (ERIP)
modulation	GFSK/ � /4-DQPSK/8-DPSK

Power

working voltage	100-240V~50/60Hz
power consumption	50 Watts
standby consumption	0.5 Watt

Operating Environment

operating temperature	+41°F – +95°F (+5°C – +35°C)
