6 - VTX A12 RIGGING SYSTEM OVERVIEW
VTX A12 cabinets include a next-generation rigging system that is easy to use, simple to understand, and highly accurate. VTX A12
enclosures are transported vertically on carts of four using the VTX A12 VT Vertical Transporter cart system accessory. During trans-
portation, all four cabinets travel collapsed with their angles set to the 10-degree position. Cabinet-to-cabinet splay angle selection is
done while the system is still on the ground, simply by moving the angle selection quick release pin (QRP) to the desired position. When
speakers are lifted off a VTX A12 VT cart, an automatic Angle Lock mechanism engages to secure the cabinets to the selected position.
The cabinets maintain their splay positions until the user releases the Angle Lock mechanism, at which point the cabinets can collapse
again and be stored on the cart.
NOTE: For the purpose of this manual, the names “A12” and “A12W” will be used interchangeably.

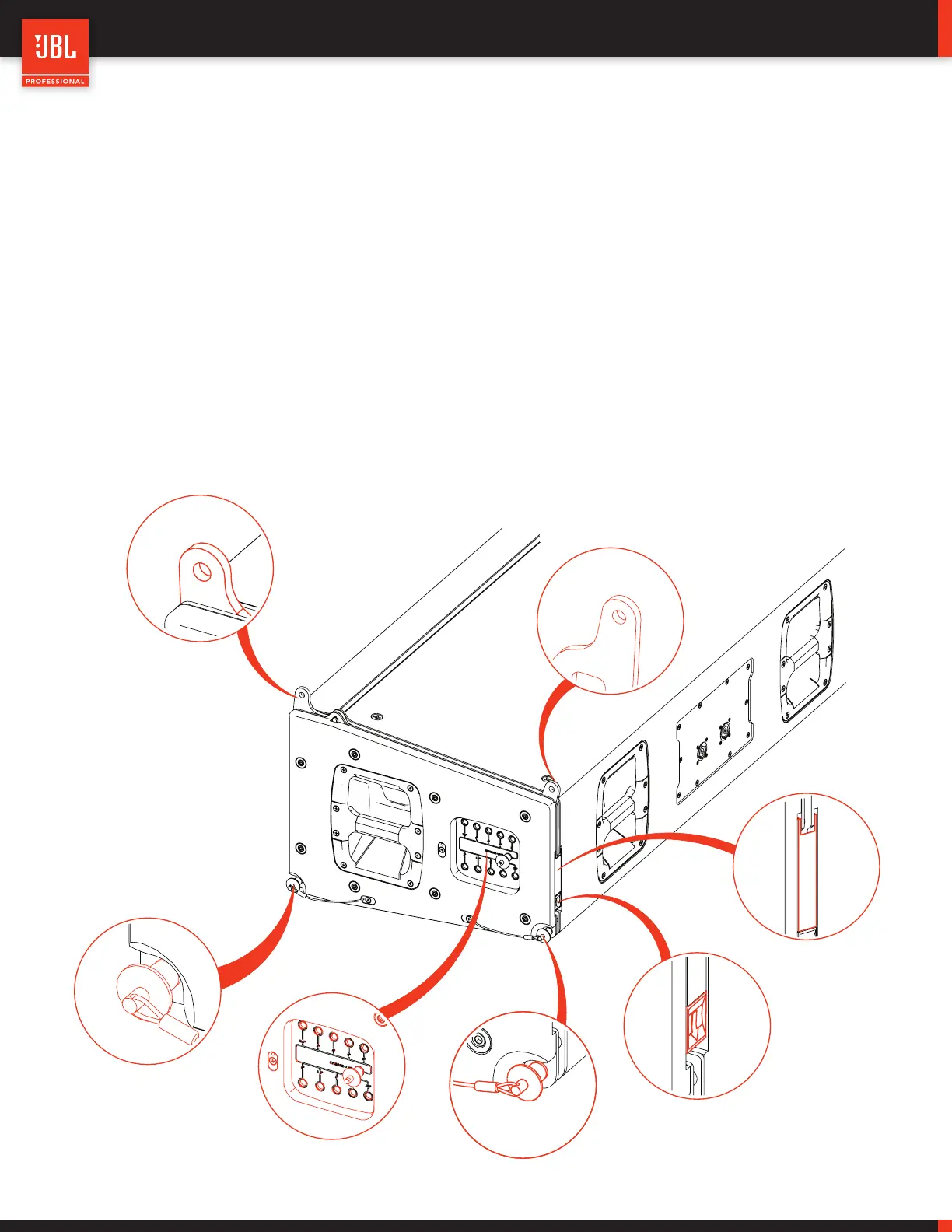

6.1 A12 RIGGING CLOSEUP
FRONT CONNECTION POINT
REAR CONNECTION POINT
FRONT QRP
ANGLE SELECTION
REAR QRP
LOCK RELEASE BUTTON
ANGLE LOCK MECHANISM
