VTX A12 | Rigging Manual

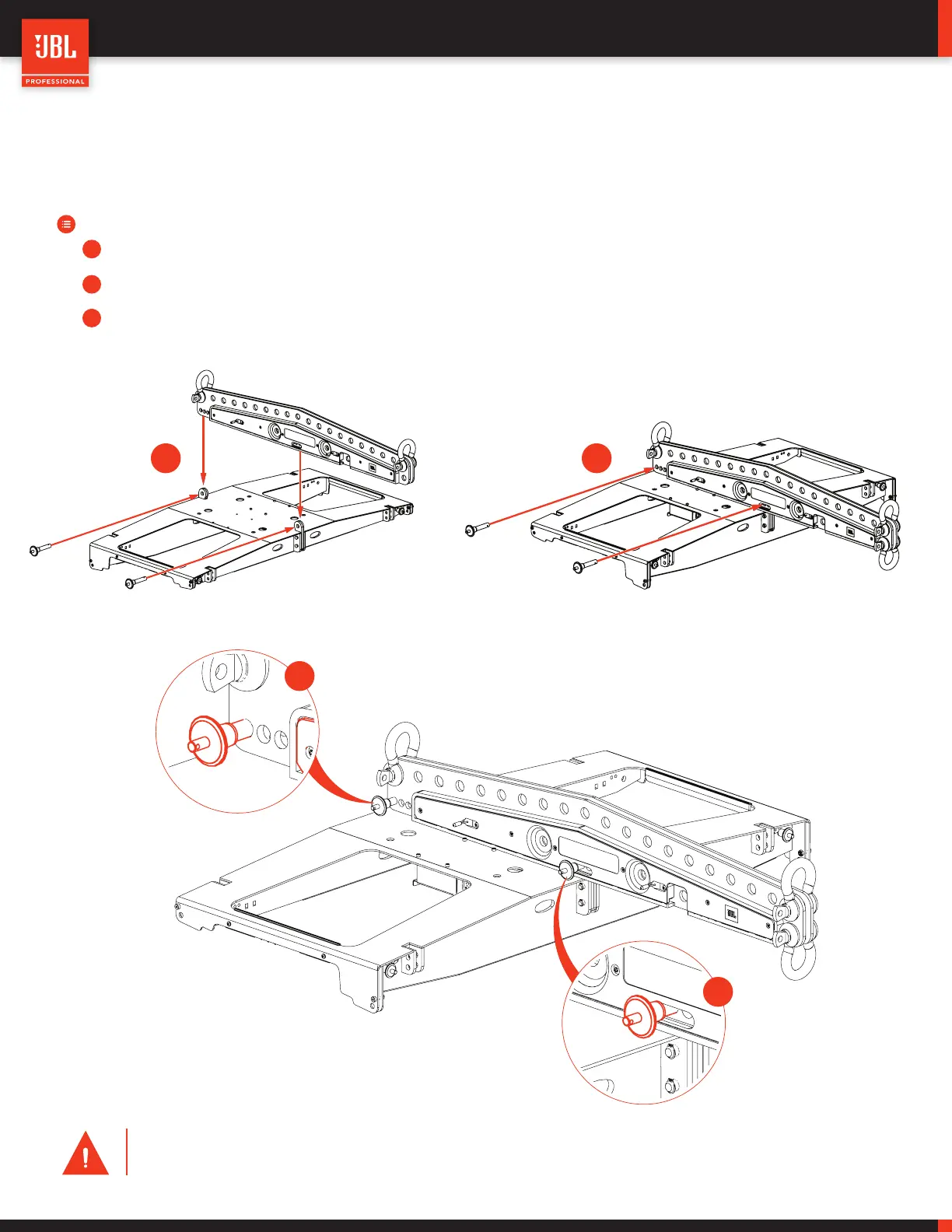

8.3 ATTACHING THE EXTENSION BAR
The Extension Bar includes two tab positions and two quick release pins for connecting to the Array Frame.
STEPS:
• Line up the Extension Bar with the connection tabs on the Array Frame.
• Lower the Extension Bar on to the Array Frame.
• Use the two included quick release pins to secure the Extension Bar to the Array Frame.
CAUTION: Always use both included quick release pins to attach the Extension Bar to the Array Frame. Inspect both
connection points before suspending an array.
3
1 2
1
2
3
3
