VTX A12 | Rigging Manual
7 - A12 VT AND TRANSPORTATION
The VTX A12 VT Vertical Transporter is used to transport VTX A12 cabinets in groups of four. When stacked on the VTX A12 VT, all four
cabinets are set to the 10-degree (STORAGE) position, which secures the rigging system for transportation. The optional VTX A12 VT
CVR Cover can be used for additional protection.

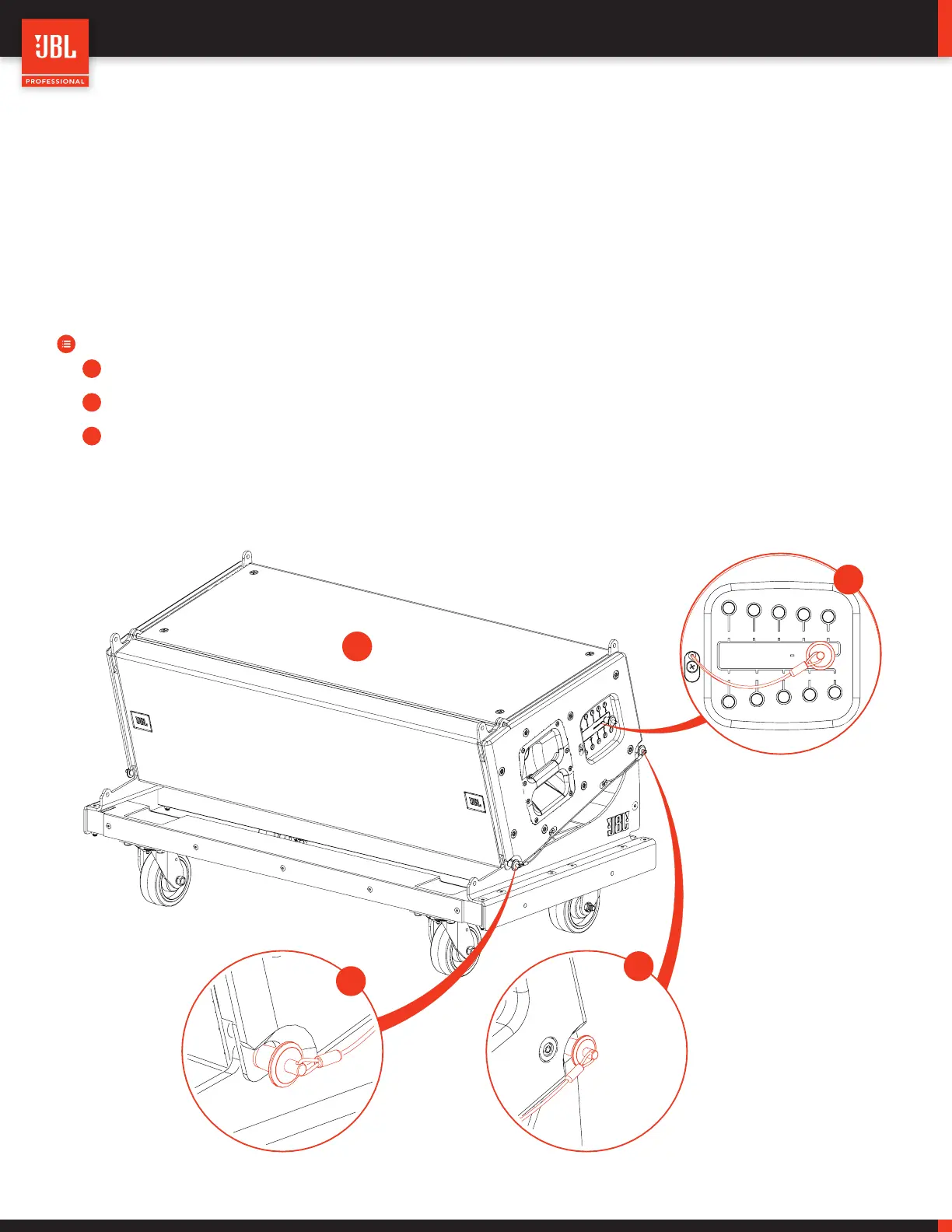

7.1 INSTALLING VTX A12 CABINETS ON A VTX A12 VT
VTX A12 cabinets should be installed on the VTX A12 VT one by one starting with the lowermost cabinets.
STEPS:
• Start by installing the first VTX A12 cabinet onto the VTX A12 VT.
• Use the four front and rear A12 quick release pins to secure the cabinet to the VT.
• Set the A12 cabinet to the 10-degree (STORAGE) position and set the red Locking lever to the locked position.
1°
1°
2.5°
2.5°
3°
3°
4°
4°
6°
6°
8°
8°
10°
10°
STORAGE
STORAGE
2°
2°
1.5°
1.5°
.5°
.5°
.25°
.25°
1
2
3
3
1
2
2
