VTX A12 | Rigging Manual
15.3 VTX A12 SB

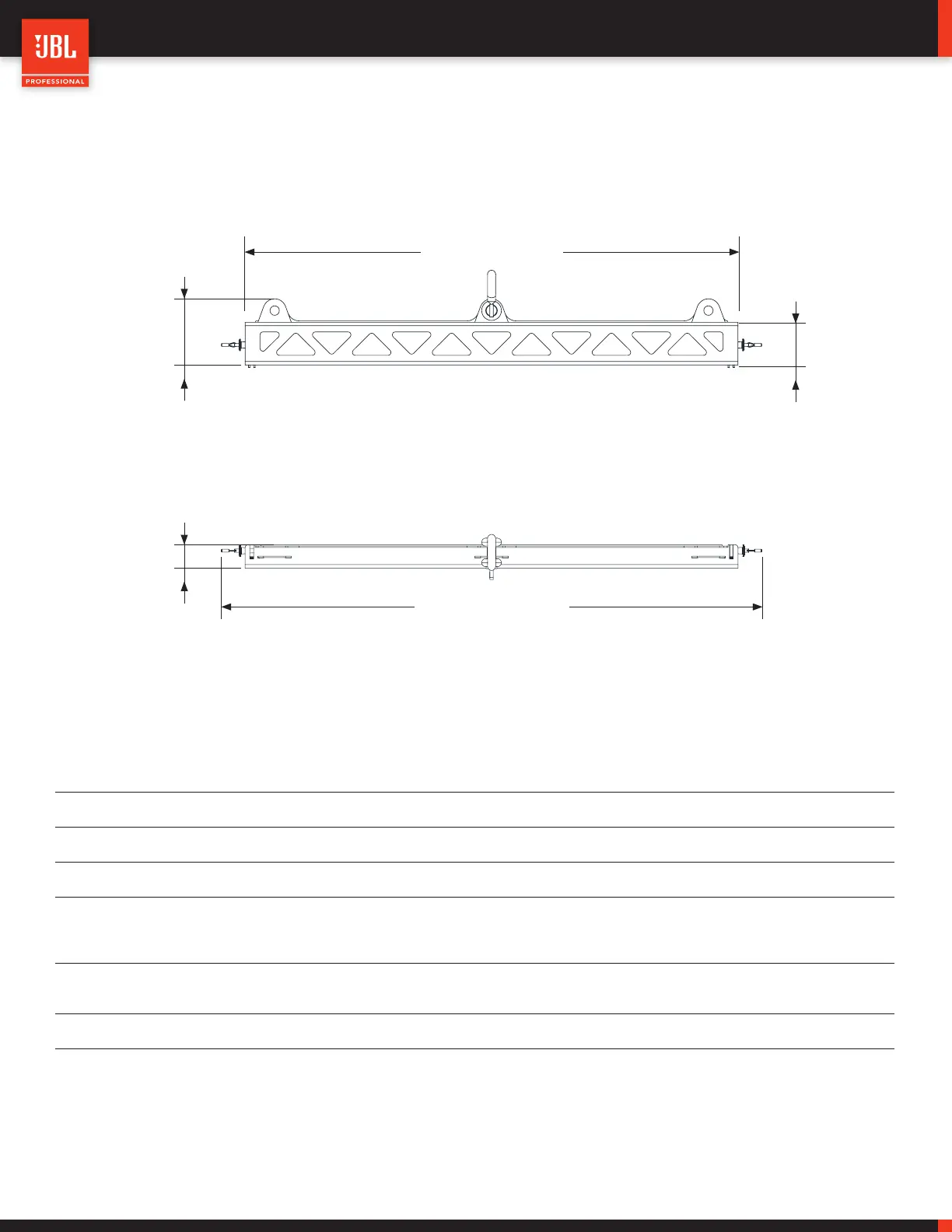

1171 mm (46.1 in)
1049 mm (42.1 in)
93 mm (3.6 in)
144 mm (5.6 in)
50 mm (1.9 in)
Construction:
High-grade steel with anti-corrosion coating
Finish:
Black powder coat
Compatible Shackle Size:
5/8-inch
Mechanical Limits
1
Maximum:
Safe Limit:
(18) VTX A12
(18) VTX A12
Dimensions (H x W x D)
2
:
144 mm x 1049 mm x 50 mm
(5.6 in x 42.1 in x 1.9 in)
Net Weight
3
:
6.4 kg (14 lbs)
Footnotes:
1: For arrays larger than the safe limit always use the JBL Line Array Calculator 3 to determine mechanical safety.
2: Refer to the 2D and 3D Customer Drawings for more detailed dimensions.
3: Shackles and other rigging parts not included.
