VTX A12 | Rigging Manual
15.6 VTX A12 VT GND
Footnotes:
1: For arrays larger than the safe limit always use JBL Line Array Calculator 3 software to determine mechanical safety.
2: Refer to 2D and 3D Customer Drawings for more detailed dimensions.
3: Net weight refers to one complete set of outriggers (left/right). VTX A12 VT not included.
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression
of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
Construction:
High-grade steel with anti-corrosion coating
Finish:
Black powder coat
Mechanical Limits
1
Maximum:
Safe Limit:
(6) VTX A12 or (4) VTX B28
(4) VTX A12 or (3) VTX B28

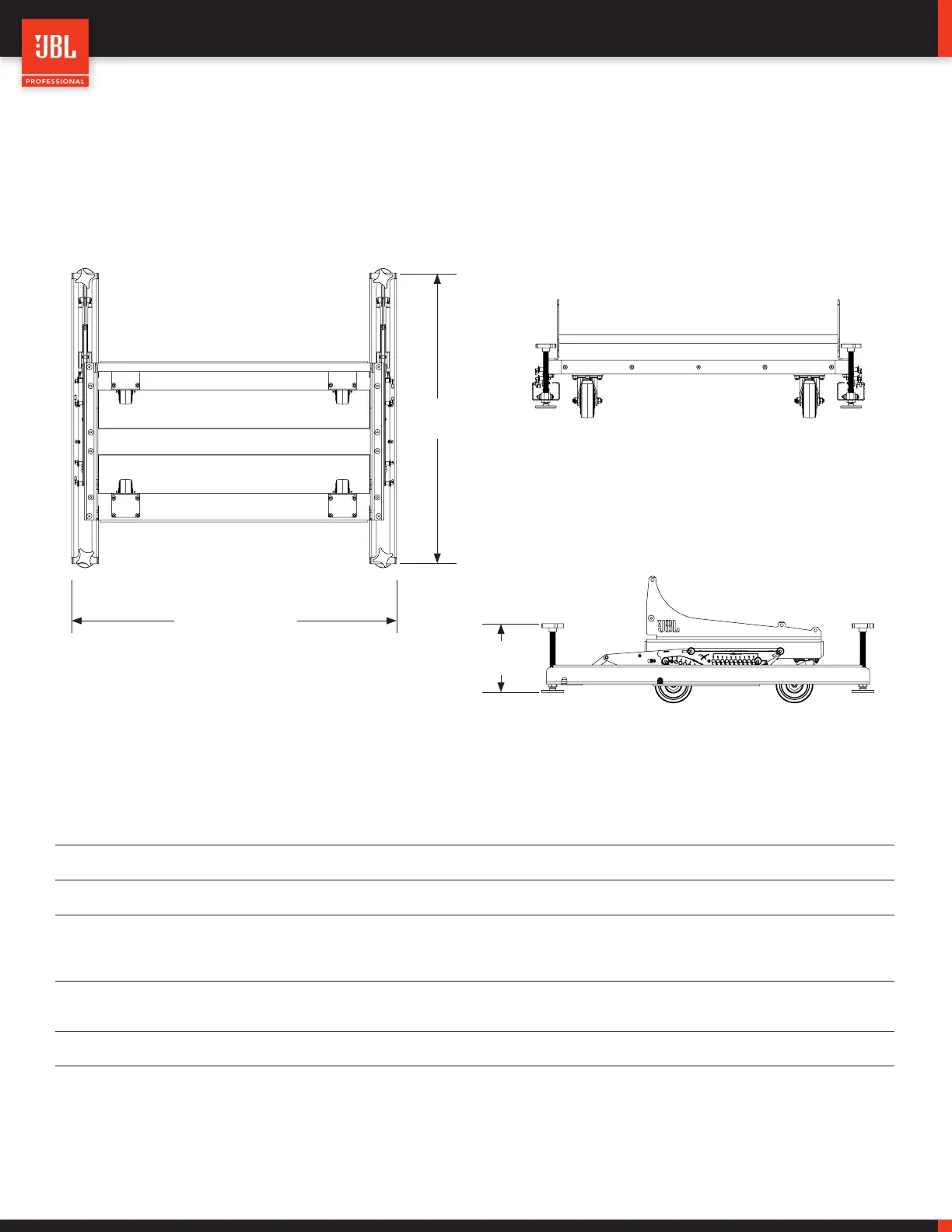

Dimensions (H x W x D)
2
:
239 mm x 1234 mm x 1105 mm
(9.4 in x 48.6 in x 43.5 in)
Net Weight
3
:
12.8 kg (28 lbs)
1234 mm (48.6 in)
1105 mm
(43.5 in)
239 mm
(9.4 in)
