Please see operator manual for full details.
Fluids and Lubricants
Item Capacity Fluid/lubricant
JCB Part
Number
Container
Size
Fuel Tank 20.5L Diesel oil – –
Engine Oil
(Stage 3A Perkins 403D-07)
2.5L
-30°C (-22°F) to 40°C (104°F):
JCB Extreme performance 5W40
4001/ 2705 20L
Engine Coolant (Cab) 4.7L JCB Antifreeze HP / Coolant / Water 4 0 0 6 /112 0 20L
Engine Coolant (Canopy) 4.2L JCB Antifreeze HP / Coolant / Water 4 0 0 6 /112 0 20L
Track Gearbox (each) 0.3L
JCB Engine Oil HP SAE 30
(Not Multigrade)
4001/ 0305 20L
Track Idler Wheels 0.3L JCB HP90 Gear Oil 4000/0305 20L
Track Rollers (bottom) 0.025L JCB HP90 Gear Oil 4000/0305 20L
Hydraulic System 28L
-20°C (-4°F) to 46°C (114.7°F):
JCB Hydraulic Fluid OP46
4002/2005 20L
Hydraulic Tank 15L
-20°C (-4°F) to 46°C (114.7°F):
JCB Hydraulic Fluid OP46
4002/2005 20L
Slew Ring Bearing
As
required
JCB HP Grease 4003/ 2017 0.4kg
Slew Ring Gear Teeth
As
required
JCB Special Slew Pinion Grease 40 03/1619 0.4kg
All Other Grease
As
required
JCB MPL-EP Grease 4003/1501 0.4kg
JCB part numbers are liable to change and may also vary by region.
For the latest information, always check with your dealer/distributor.

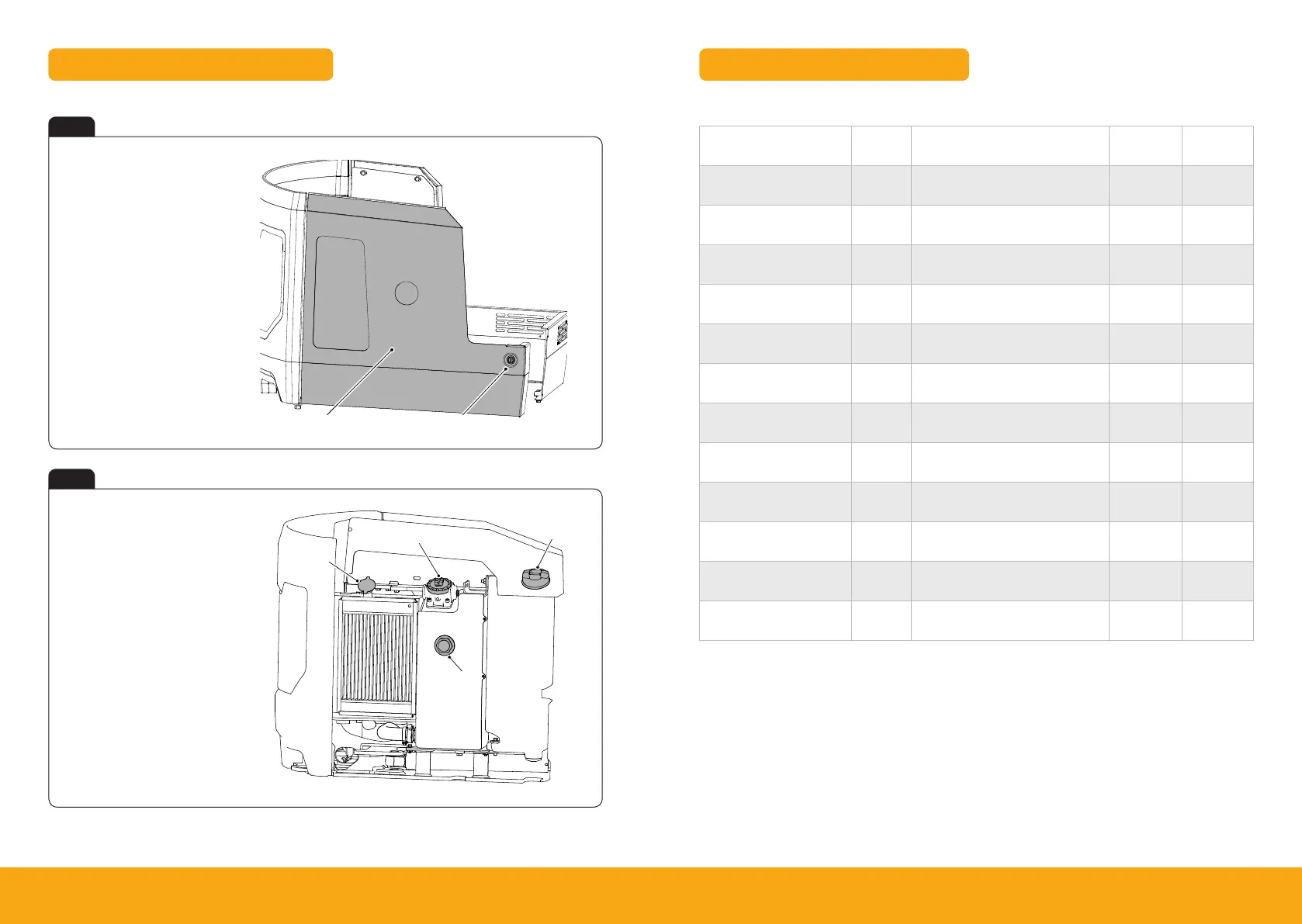

Access Covers – Fluid Levels and Fill
Fig 27
Fig 28
A Hydraulic compartment cover
B Lock
A Radiator cap
B Hydraulic tank filler cap
C Fuel filler cap
D Hydraulic oil level indicator
Maintenance
Access Apertures
150 9831/2900-1 150
Close
1. Close the cover.
2. Make sure the cover is correctly latched.
3. Use the ignition key to lock the cover.
Hydraulic Compartment Cover
Open
1. Make the machine safe with the excavator arm lowered.
2. Use the ignition key to unlock the cover.
3. Open the cover.
Figure 115.
A Hydraulic compartment cover B Lock
Close
1. Close the cover.
2. Use the ignition key to lock the cover.
Maintenance
Service Points
148 9831/2900-1 148
Hydraulic Compartment
Figure 113.
C
B
A
D
A Radiator cap B Hydraulic tank filler cap
C Fuel filler cap D Hydraulic oil level indicator
To Next Page
