jcb 19c-1 EP User Manual

18z-1, 19c-1, 19c-1 EP
10
11
Please see operator manual for full details.

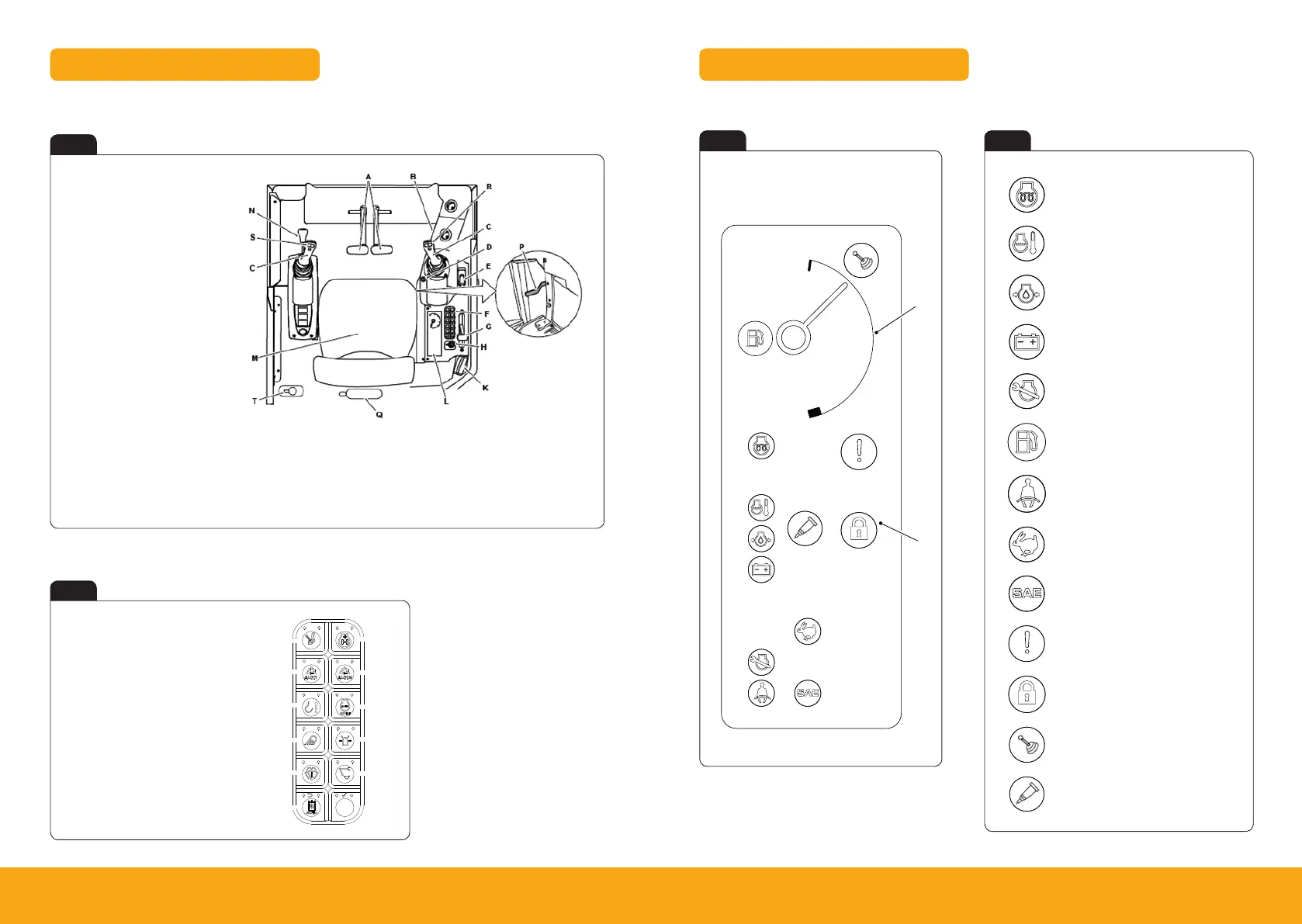

Instrument Panel
A Fuel level guage
B Warning and indicator lamps
Fig 11 Fig 12
Instrument Panel – 18z-1, 19c-1
Operation
Instruments
70 9831/2900-1 70
Instruments
General
Indicators for the engine and related systems are mounted in the instrument cluster in the right hand console.
Instrument Panel
For: 16C-1, 18Z-1 ..................................................................................................................... Page 70
For: 19C-1 ................................................................................................................................ Page 71
(For: 16C-1, 18Z-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Figure 50.
B
A
A Fuel level gauge B Warning and indicator lamps
Fuel level: The needle position shows the fuel level.
Operation
Instruments
70 9831/2900-1 70
Instruments
General
Indicators for the engine and related systems are mounted in the instrument cluster in the right hand console.
Instrument Panel
For: 16C-1, 18Z-1 ..................................................................................................................... Page 70
For: 19C-1 ................................................................................................................................ Page 71
(For: 16C-1, 18Z-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Figure 50.
B
A
A Fuel level gauge B Warning and indicator lamps
Fuel level: The needle position shows the fuel level.
Operation
Instruments
70 9831/2900-1 70
Instruments
General
Indicators for the engine and related systems are mounted in the instrument cluster in the right hand console.
Instrument Panel
For: 16C-1, 18Z-1 ..................................................................................................................... Page 70
For: 19C-1 ................................................................................................................................ Page 71
(For: 16C-1, 18Z-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Figure 50.
B
A
A Fuel level gauge B Warning and indicator lamps
Fuel level: The needle position shows the fuel level.
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A
B C
D
E
F
G
H J
K
L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A B
C
D
E
F
G
H J
K L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A B C D
E
F
G
H J
K L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A B C D
E
F
G
H J
K L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A B C D
E
F
G
H J
K L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A B C D
E
F
G
H J
K L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A B C D
E
F
G
H J
K L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Engine pre-heat
Coolant temperature
Engine oil pressure
Battery charging
Service due warning
Low fuel indicator
Seat belt
High speed travel
SAE active
Master warning
Immobilisers active
Hydraulics active
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A B C D
E
F
G
H J
K L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Operation
Instruments
71 9831/2900-1 71
Warning and Indicator Lamps
Figure 51.
A B C D
E
F
G
H J
K L
M N
Table 8.
A Engine pre-heat Illuminate green when engine pre-heater is active.
B Coolant temperature Illuminate red when coolant temperature exceeds the pre-set value.
C Engine oil pressure Illuminate red when oil pressure drop too low. Illuminate when the ignition
switch is set to position "I" before starting the engine but should be extin-
guish when the engine starts. If remains 'ON' then stop the engine immedi-
ately and contact your JCB Dealer.
D Battery charging condi-
tion
Audible/Visual. The lamp illuminate red and buzzer will sound, if battery is
not charging while engine is running. If battery is charging, the lamp and
buzzer should go off a few seconds after the engine is started.
E Service due warning Illuminate amber when service is due.
F Fuel indicator Illuminate white when fuel level is low.
G Seat belt Visual. Illuminate red if the seat belt is not fastened or the operator is not
sitting on the seat.
H High travel speed Illuminate green when high travel speed is selected.
J SAE (Society of Auto-
motive Engineers) ac-
tive
Illuminate green when SAE is active.
K Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
L Immobilisers active Visual. Illuminate amber when immobiliser armed function is active.
M Hydraulic active Illuminate green when hydraulic services is active.
N Aux 1 (single acting,
high flow)
Illuminate green when single acting (high flow) is active.
(For: 19C-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Operation
Instruments
70 9831/2900-1 70
Instruments
General
Indicators for the engine and related systems are mounted in the instrument cluster in the right hand console.
Instrument Panel
For: 16C-1, 18Z-1 ..................................................................................................................... Page 70
For: 19C-1 ................................................................................................................................ Page 71
(For: 16C-1, 18Z-1)
The gauges, warning and indicator lamps are grouped together on the instrument cluster. When a warning
lamp comes on, an alarm will sound.
Figure 50.
B
A
A Fuel level gauge B Warning and indicator lamps
Fuel level: The needle position shows the fuel level.
Aux 1 – single acting
Operation
Instruments
72 9831/2900-1 72
Figure 52.
A
B
A Fuel level gauge B Warning and indicator lamps
Fuel level: The needle position shows the fuel level.
Warning and Indicator Lamps
Figure 53.
A B
C
D
E F
G
H
J
K
L
M N
P
Q
R
S
T
Table 9.
A Master warning Audible/Visual. If amber light illuminate then contact JCB dealer. If red light
illuminate then stop the machine immediately and contact your JCB dealer.
B Quickhitch unlock Illuminate amber when quickhitch is unlocked.
A Track controls
B Heater controls
C Excavator arm controls
D Ignition Switch
E Dozer control lever
F Switch panel
G Hand throttle
H Auxillary power socket
K Radio (if installed)
L Instrument panel
M Operator seat
N Control Isolation lever
P Undercarriage track extension lever
Q Fire extinguisher
R Swing left/right
S Auxiliary control
T Window washer bottle
Cab & Switch Panel
Fig 9
Fig 10
Operator Station Layout – 19c-1 EP
Switch Panel – 19c-1 EP
A Control Isolation Switch (2Go)
B Aux 1 selection switch
C Lift overload switch on/off switch
D Worklights on/off switch
E Wiper/ washer on
F Auto-hydraulic warming switch
G H+ mode selection switch
H Aux 2 selection switch
I Auto idle on/off switch
J Beacon on/off switch
K Q-hitch sequence switch
Key
Black Text = Standard equipment
Blue Text = Not Used
About the Product
Console Switches
26 9831/2900-1 26
(For: 19C-1)
Figure 19.
G
H
I
J
K
A
B
C
D
E
F
0 1
2 3
4 5
6
7
8 9
Table 7.
A Control isolation solenoid on/
off switch
LED (Light Emitting Diode) illumination: Hydraulics active
B Aux 1 (high flow) selection
switch
Mode: Single acting, Double acting system 1 or 2. No LED illumina-
tion.
C Lift overload switch LED illumination: Buzzer silenced
D Worklights on/off switch LED illumination: 1= Front on, 2= Rear on
E Wiper/washer on Push to change wiper function (Intermittent /on/off). Hold to operate
washer. LED Illumination: 1= Intermittent wiper, 2= On wiper, 1 & 2 =
Washer active
F Auto-hydraulic warming switch Not used.
G H+ mode selection switch Not used.

jcb 19c-1 EP Specifications

General

Brand	jcb
Model	19c-1 EP
Category	Excavators
Language	English
